Product Highlights
- SD/HD/3G-SDI Input
- HDMI and SDI Loop Outputs
- Supports SD and HD Signals
- Automatic Input Signal Detection
- Software Control
- Power & Firmware Updates via USB 2.0
- International USB Power Supply Included
- Overview
- Tech Specs

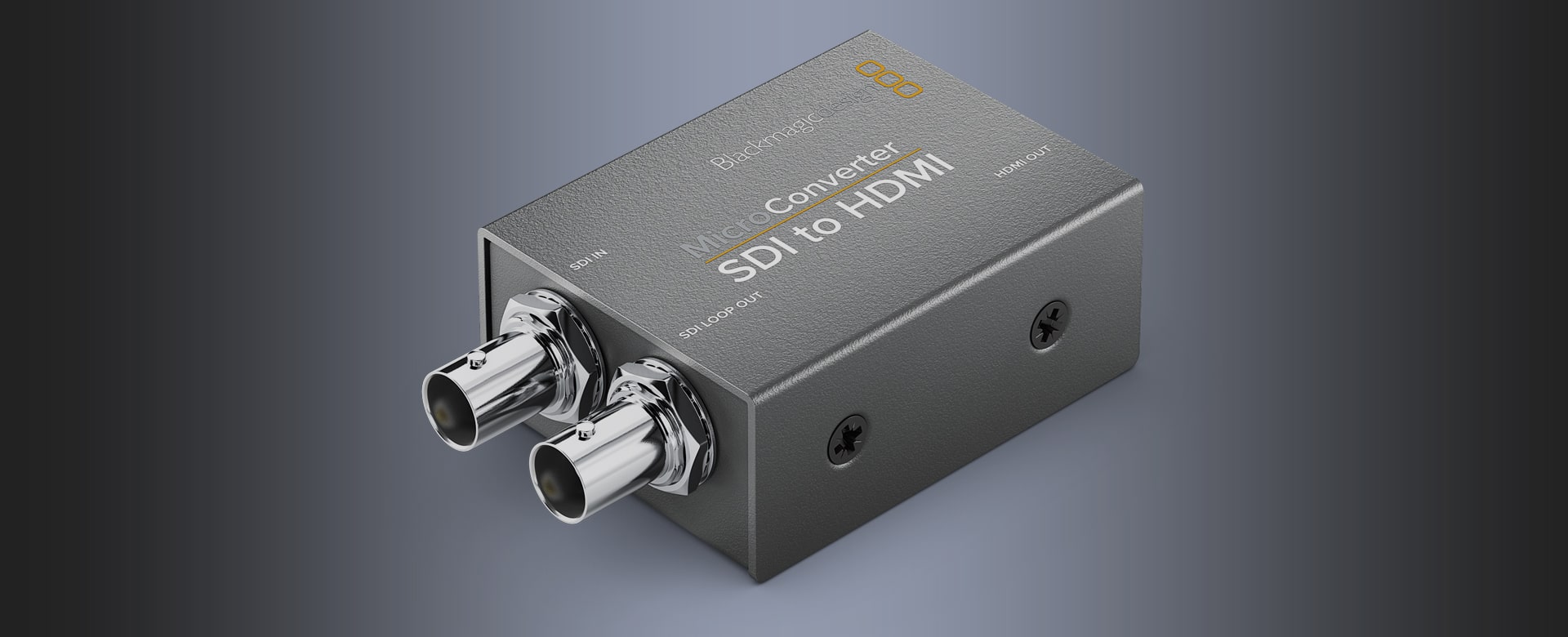

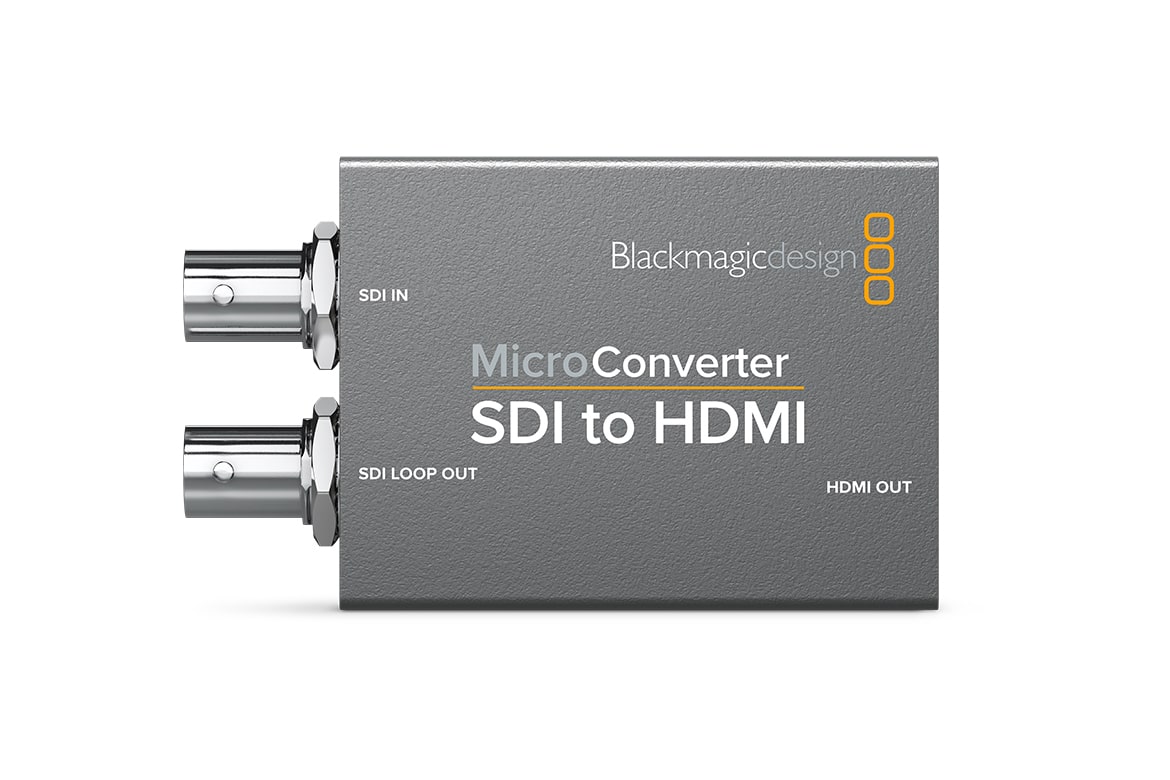

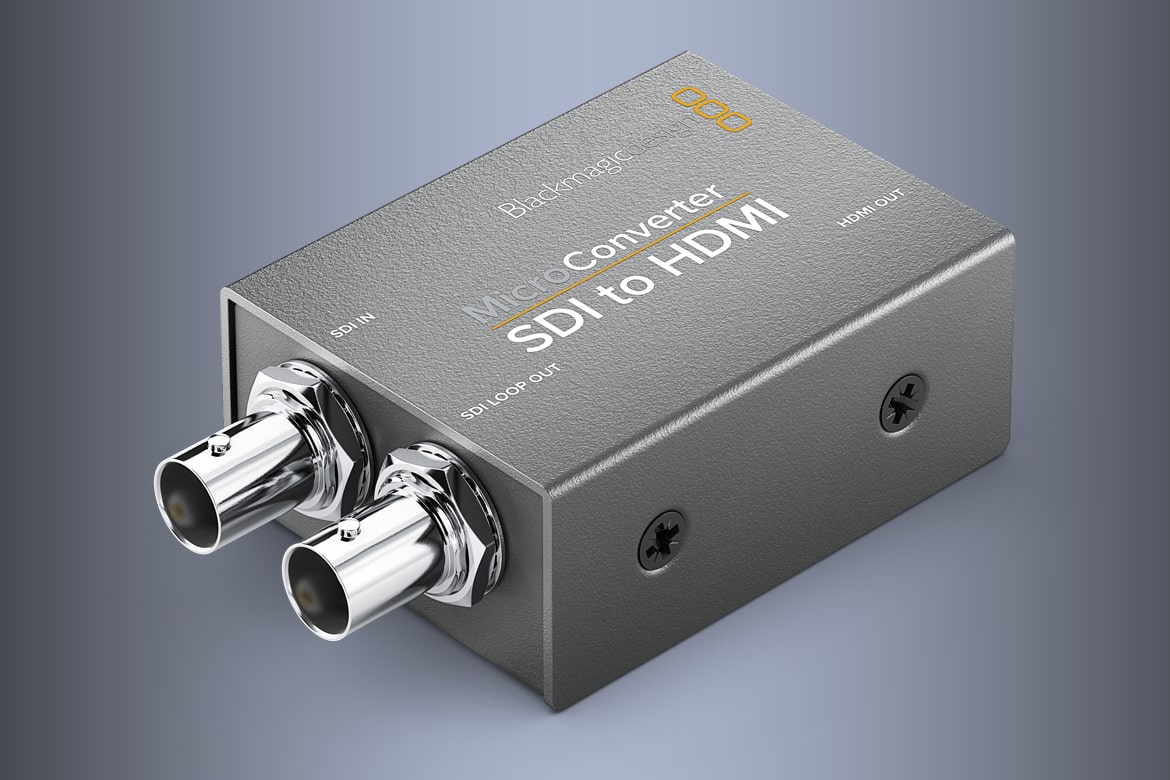

Convert from SDI to HDMI so you can output video from professional SDI video equipment to consumer HDMI televisions, projectors and more! The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You also get 3G-SDI loop through, support for Level A and Level B equipment, and power over USB!

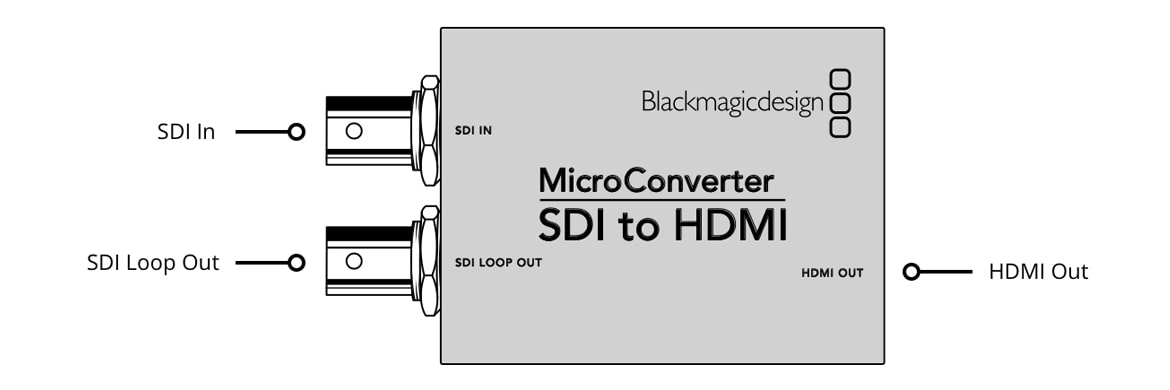

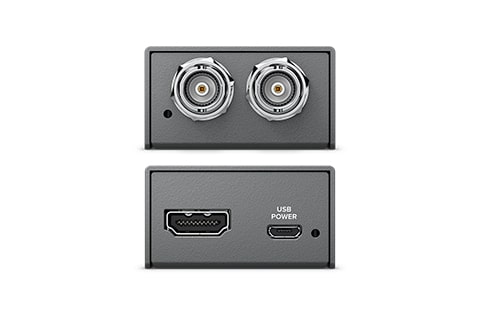

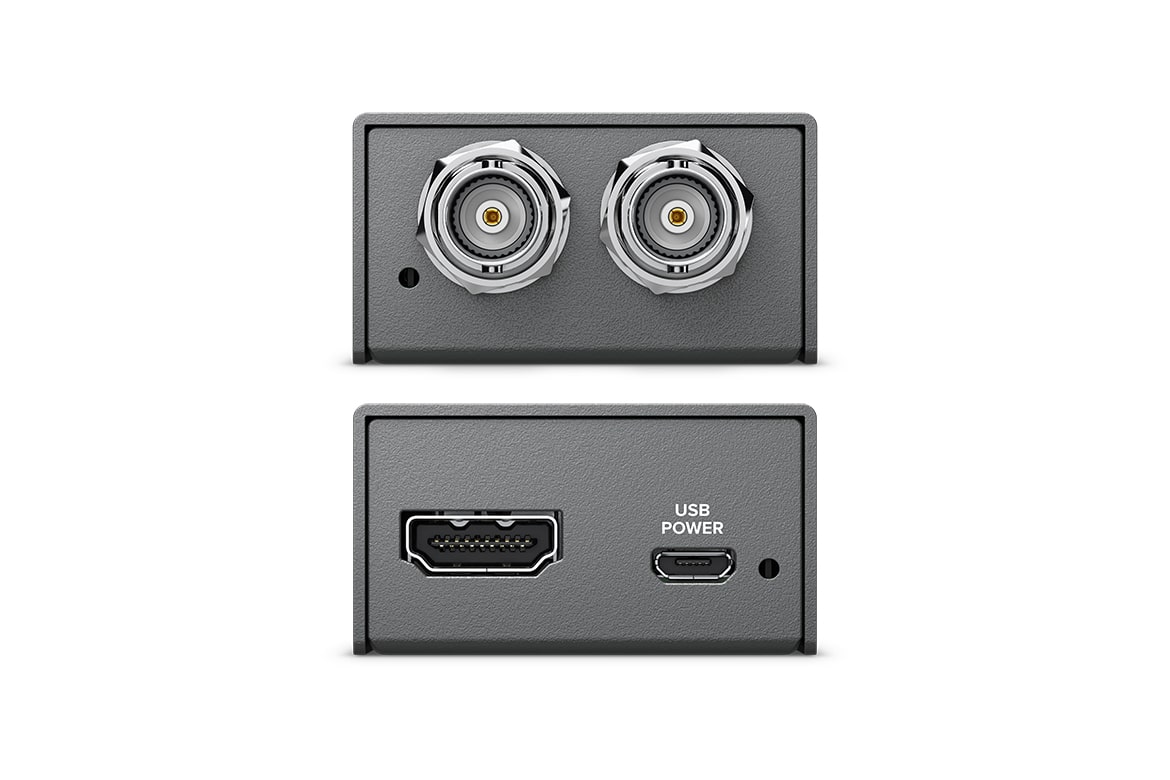

| Connections | |
| SDI Video Input | 1 x SD, HD or 3G-SDI |
| SDI Video Output | 1 x SDI loop out |
| HDMI Output | HDMI Type A out |
| Multi Rate Support | Auto detection of SD or HD |
| Updates, Configurations and Power | Micro USB |
| Standards | |
| SDI Format Support | 525i29.97 NTSC, 625i25 PAL |
| HD Format Support | 720p50, 720p59.94, 720p60 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,1080p 60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically detects SD, HD and 3G-SDI |
| HDMI Format Support | 525i29.97 NTSC, 625i25 PAL 720p50, 59.94, 60 1080p24, 25, 29.97, 30, 50, 59.94, 60 1080i50, 59.94, 60 |
| HDMI Color Precision | 4:2:2 |
| HDMI Color Space | YUV and RGB |
| Software | |
| Software Control | Mac OS X™ and Windows™ software upgrade via micro USB |
| Internal Software Upgrade | Via micro USB |
| Operating Systems | |
| Mac | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later. |
| Windows | Windows 8.1 or Windows 10. |
| Power Requirements | |
| Power Supply | +5V universal power supply included with international socket adapters for all countries. |
| Power Consumption | 1.60 Watts |
| Operational Voltage Range | 4.4 to 5.25V DC |
| Environmental Specifications | |
| Operating Temperature | 5° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later - Windows 8.1 or Windows 10.
Power Requirements
- +5V universal power supply included with international socket adapters for all countries.
- Power Consumption
1.60 Watts - Operational Voltage Range
4.4V to 5.25V DC
