Product Highlights
- HDMI Input
- 2 x SDI Outputs
- Supports SD and HD Signals
- Automatic Input Signal Detection
- Software Control
- Power & Firmware Updates via USB 2.0
- International Power Supply Included
- Overview
- Tech Specs

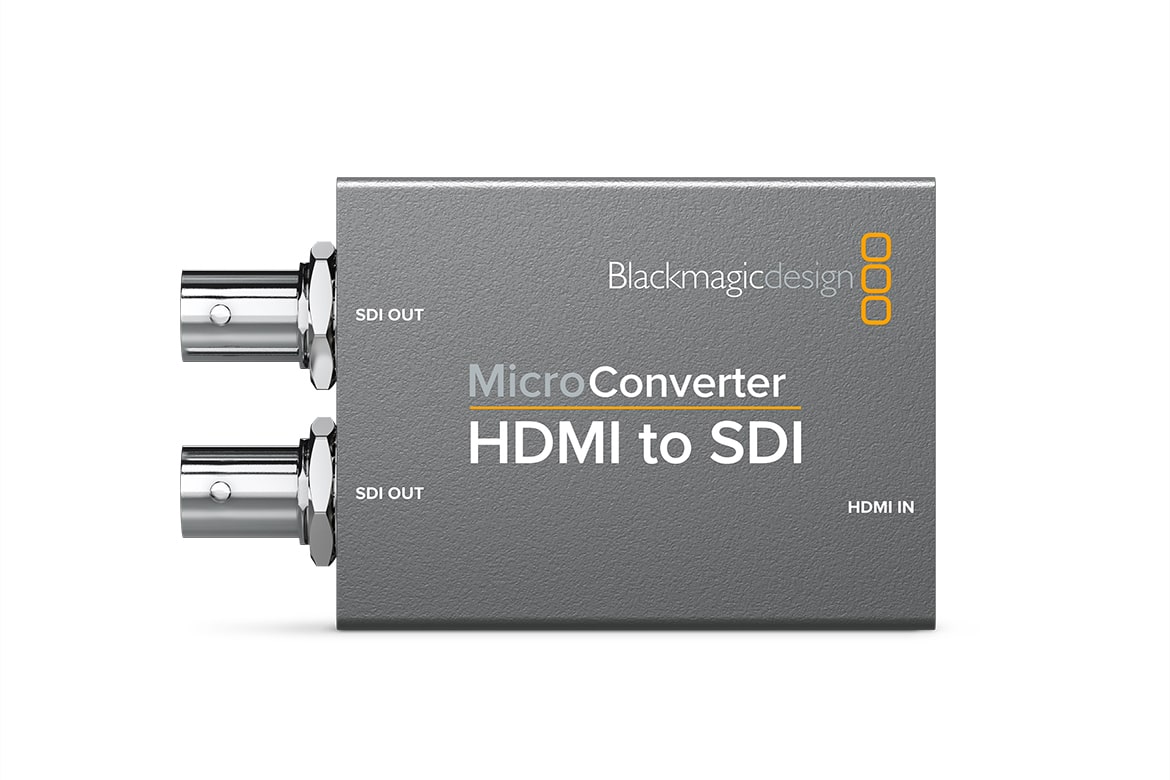

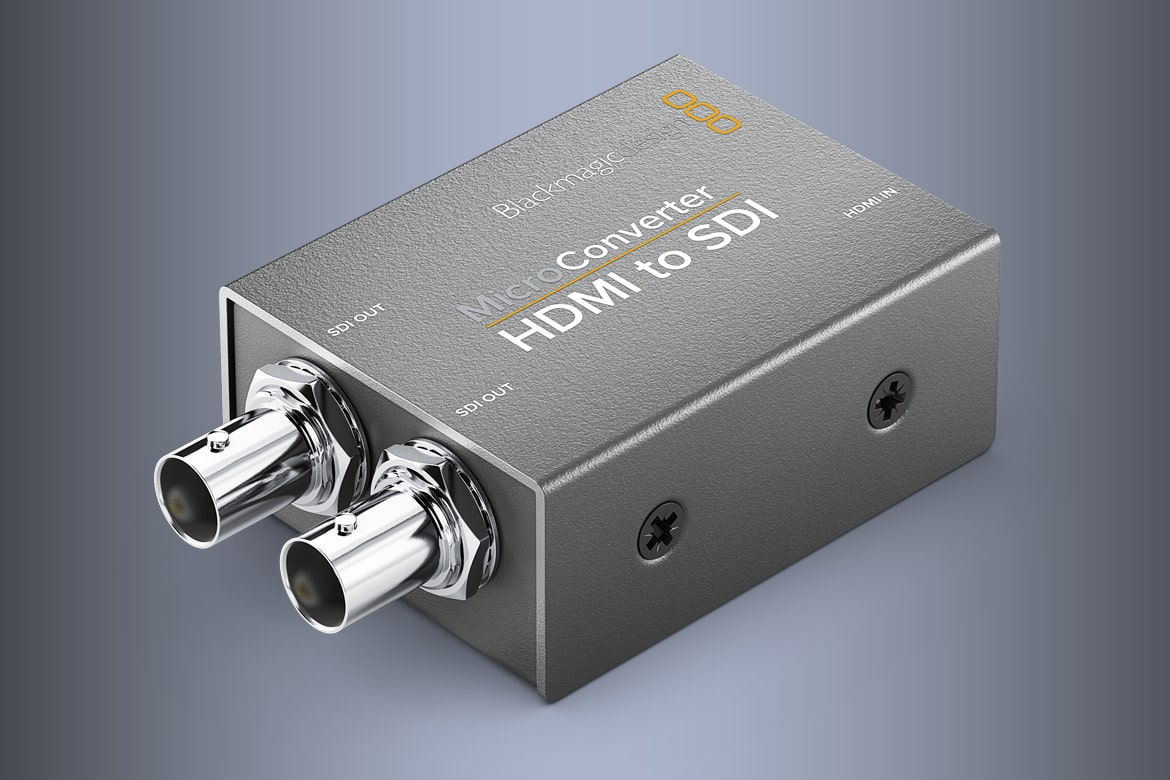

Take the HDMI output from laptop computers or consumer cameras and convert it to SDI for use with broadcast switchers, routers, monitors and more! The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You get 2 SDI outputs, support for Level A and Level B equipment, and power over USB!

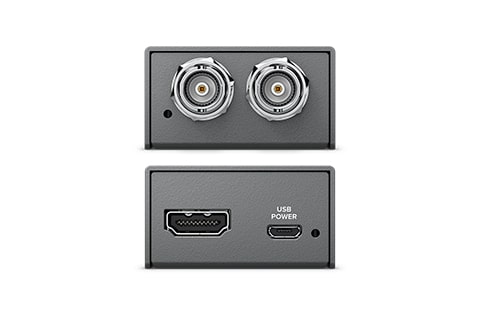

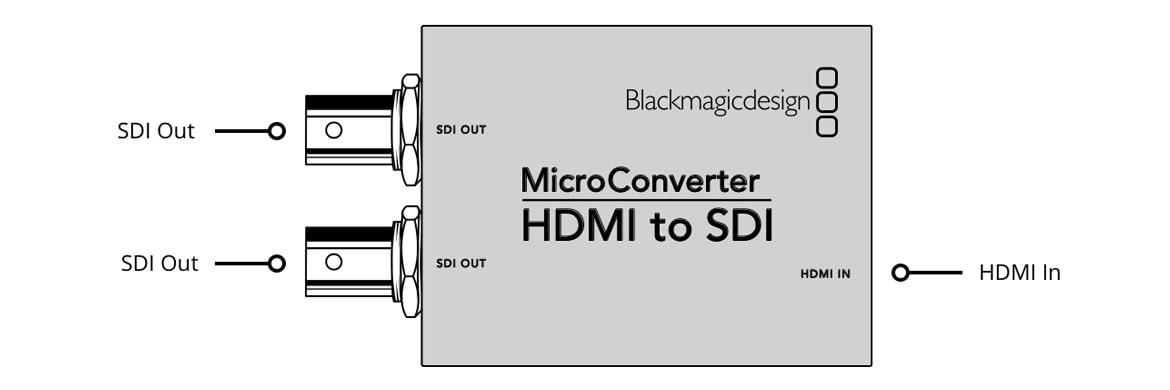

| Connections | |
| SDI Video Output | Automatically matches the SD, HD or 3G-SDI HDMI video input |
| HDMI | HDMI Type A in |
| Multi Rate Support | Auto detection of SD or HD |
| Updates, Configurations and Power | Micro USB |
| Reclocking | Yes |
| Standards | |
| SDI Format Support | 525i29.97 NTSC, 625i25 PAL |
| HD Format Support | 720p50, 59.94, 60 1080p24, 25, 29.97, 30, 50, 59.94, 1080i50, 59.94, 60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M |
| SDI Video Rates | SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility. |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically detects SD, HD and 3G-SDI |
| HDMI Format Support | 525i29.97 NTSC, 625i25 PAL 720p50, 59.94, 60 1080p24, 25, 29.97, 30, 50, 59.94, 60 1080i50, 59.94, 60 |
| HDMI Color Precision | 4:2:2 |
| HDMI Color Space | YUV and RGB |
| Software | |
| Software Control | Mac OS X™ and Windows™ software upgrade via micro USB |
| Internal Software Upgrade | Via micro USB |
| Operating Systems | |
| Mac | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later. |
| Windows | Windows 8.1 or Windows 10. |
| Power Requirements | |
| Power Supply | +5V universal power supply included with international socket adapters for all countries. |
| Power Consumption | 2.0 Watts |
| Operational Voltage Range | 4.4 to 5.25V DC |
| Environmental Specifications | |
| Operating Temperature | 5° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- +5V universal power supply included with international socket adapters for all countries.
- Power Consumption
2.0 Watts - Operational Voltage Range
4.4 to 5.25V DC
