HyperDeck Studio Mini
Miniaturized broadcast deck with unlimited duration recording using dual SD card and UHS‑II card recorders in all SD, HD and Ultra HD formats up to 2160p30!
Product Highlights
- Records Up to 3840 x 2160 at 30 fps
- Plays Back Up to 3840 x 2160 at 30 fps
- 1 x 6G-SDI Input
- 1 x HDMI and 2 x 6G-SDI Outputs
- Records Uncompressed / ProRes / DNxHD

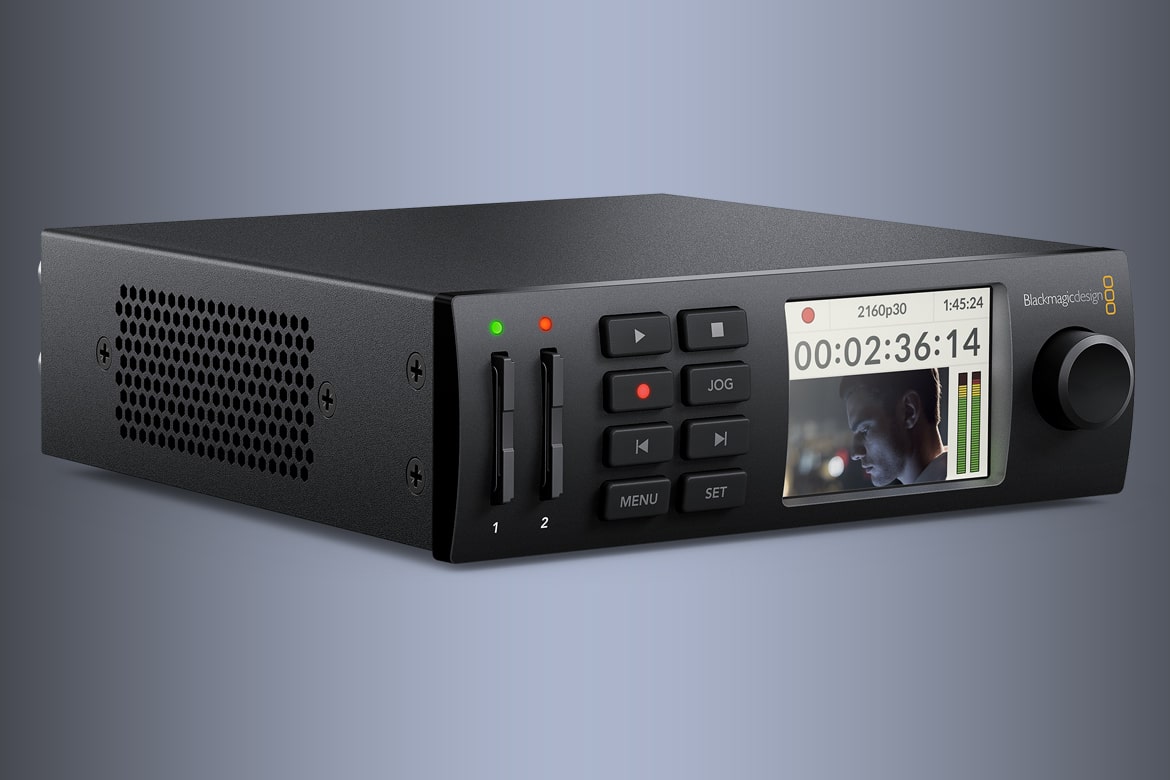

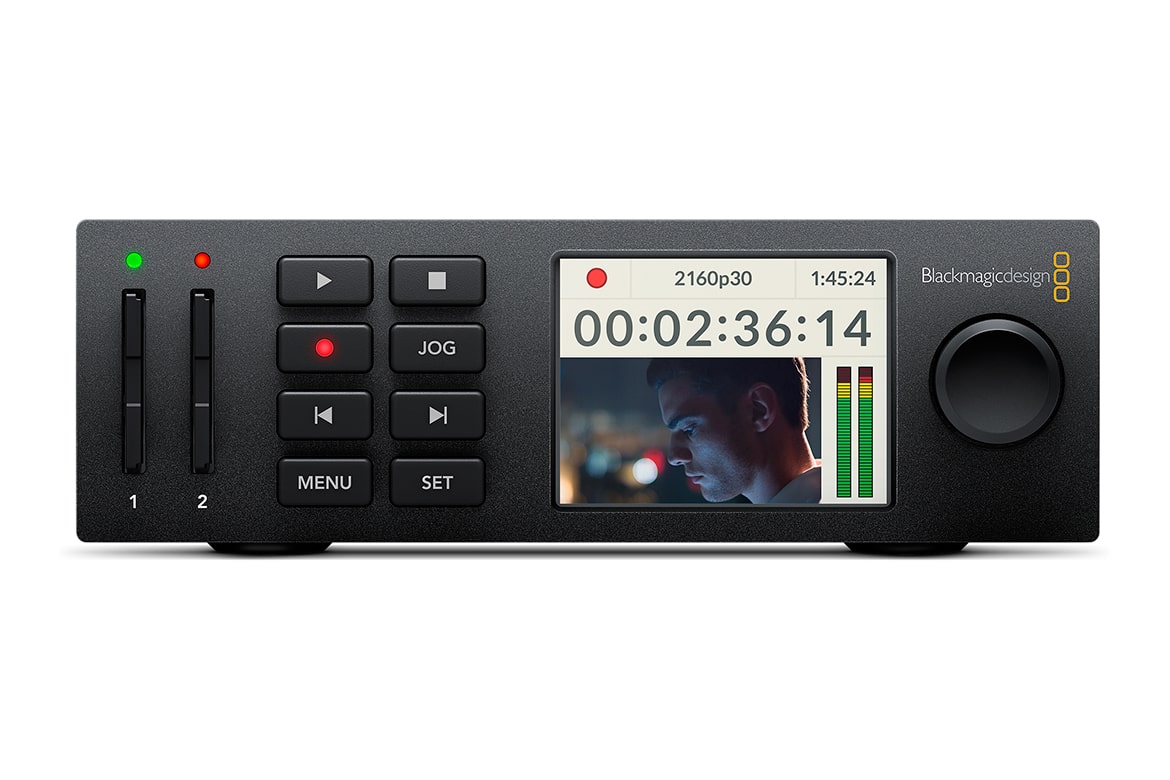

- Front Panel Buttons, Jog Wheel & LCD
- Blackburst / Tri-Level Sync Input
- Rackmountable Form Factor
- USB-C, Ethernet PoE+, RS-422
- Overview
- Tech Specs

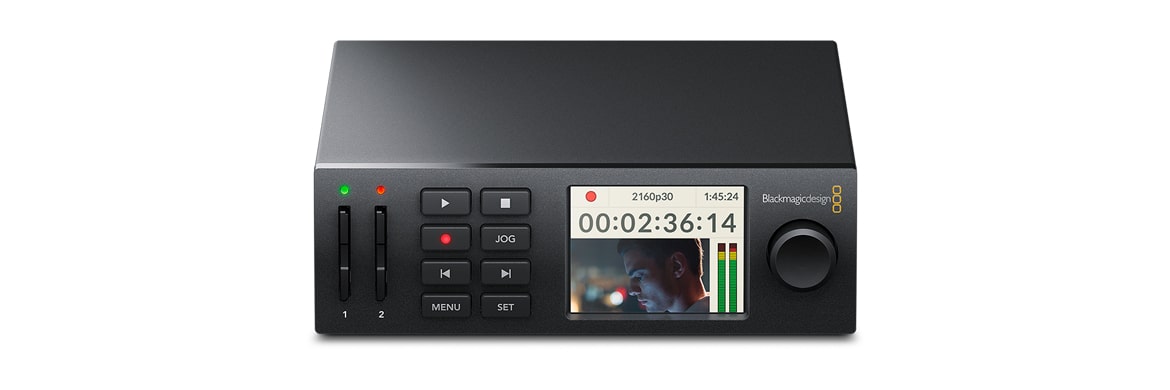

HyperDeck Studio Mini is a portable broadcast quality deck that records ProRes onto commonly available SD cards. You get 6G-SDI for recording all formats up to 2160p30, dual SD card slots for non-stop recording, a built in LCD screen and familiar VTR style front panel controls, all in a design that can be used on the desktop or in ⅓ of a standard rack space! HyperDeck Studio Mini also features 720p and 1080p 4:4:4:4 file support with fill and key outputs so it can be used as source to provide broadcast graphics to live production switchers for downstream keying over live video!

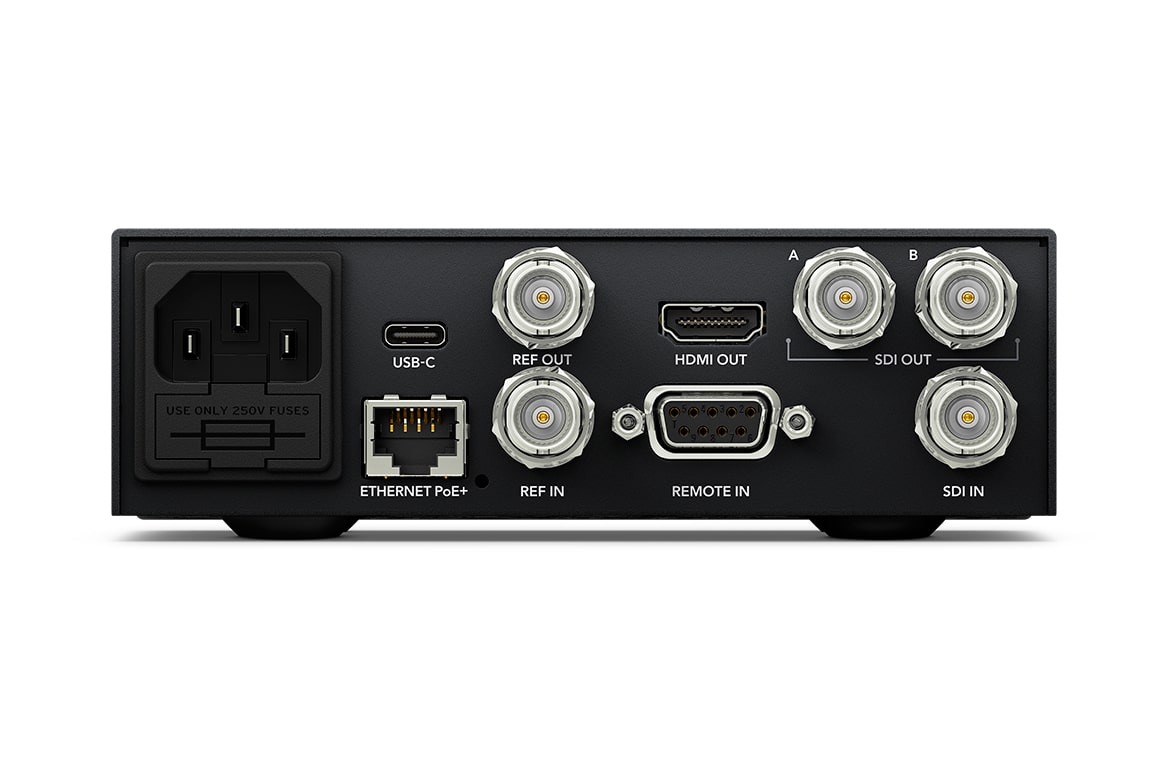

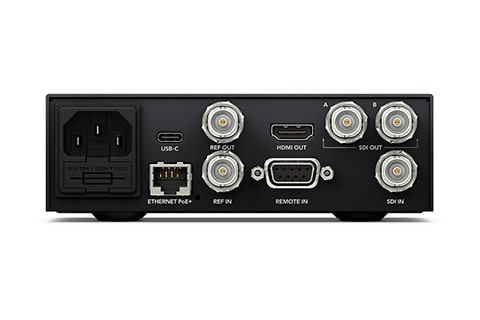

| Connections | |
| SDI Video Input | 1 |
| SDI Video Output | 2 |
| SDI Rates | 270Mb, 1.5G-SDI, 3G-SDI, 6G-SDI |
| HDMI Video Output | 1 x HDMI type A connector. |
| Power over Ethernet | 1 x Ethernet with Power over Ethernet |
| Analog Video Input | None. |
| Analog Video Output | None. |
| Analog Audio Input | None, embedded audio only. |
| Analog Audio Output | None, embedded audio only. |
| Timecode connections | None. |
| SDI Audio Input | 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files. |
| SDI Audio Output | 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files. |
| HDMI Audio Input | None. |
| HDMI Audio Output | 8 channels embedded in SD, HD and UHD in QuickTime files. 2 channels embedded in Avid DNxHD/HR MXF files. |
| Reference Input | Tri-Sync or Black Burst. |
| Reference Output | Tri-Sync or Black Burst. |
| Computer Interface | 1 x USB 2.0 type C for software updates and HyperDeck Utility software control. |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| SDI Compliance | SMPTE 259M, 292M, 296M and 425M |
| SDI Metadata Support | HD RP 188 and closed captioning. |
| Audio Sampling | Television standard sample rate of 48kHz and 24-bit. |
| Video Sampling | 4:4:4:4 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution. |
| Media | |
| Media | 2 x SD for SD, HD and UHD recording. |
| Media Type | UHS II and able to support ProRes 4444 playback and 422 recording. |
| Media Format | Can format discs to ExFAT (Windows/Mac) or OS X Extended (Mac) file systems. |
| Supported Codecs | |
| Supported Codecs | Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime. |
| Control | |
| Built-in Control Panel | 8 buttons for menu control, 2.2" color display, and a rotary wheel. |
| Software | |
| Software Included | Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only). |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start, or via updater software. |
| Displays | |
| Displays | Built-in LCD for video, audio and timecode monitoring and menu settings. 2 x LED indicator lights above the SD slots. |
| Physical Installation | |
| Physical Installation | 1/3 rack unit size. Less than 7 inches deep. |
| Physical Specifications | |
| Width | 5.51 in |
| Height | 1.75 in |
| Depth | 6.69 in |
| Weight | 1.28 lb |
| Environmental Specifications | |
| Operating Temperature | 5° to 50° C (41°to 122° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
1x Internal 100 - 240V AC.
