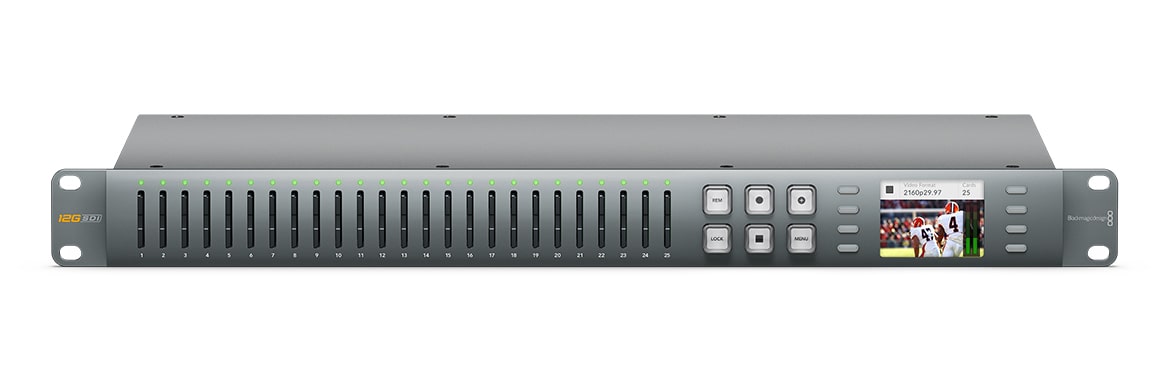

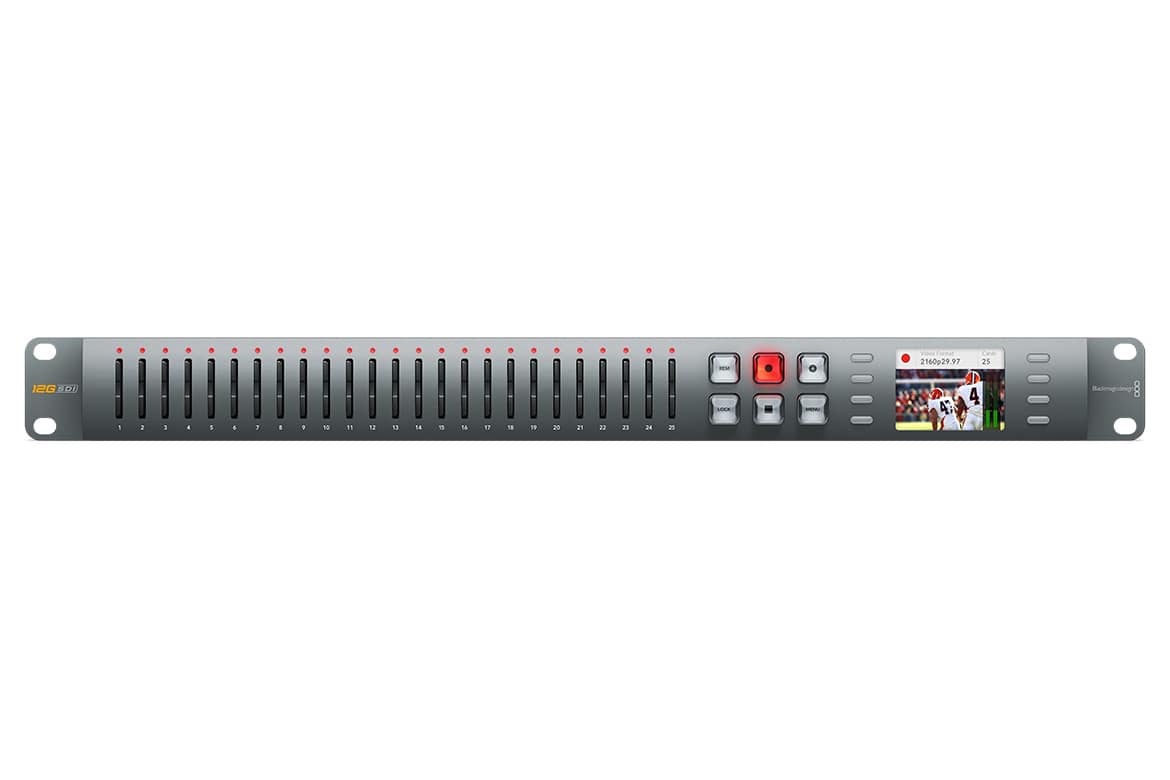

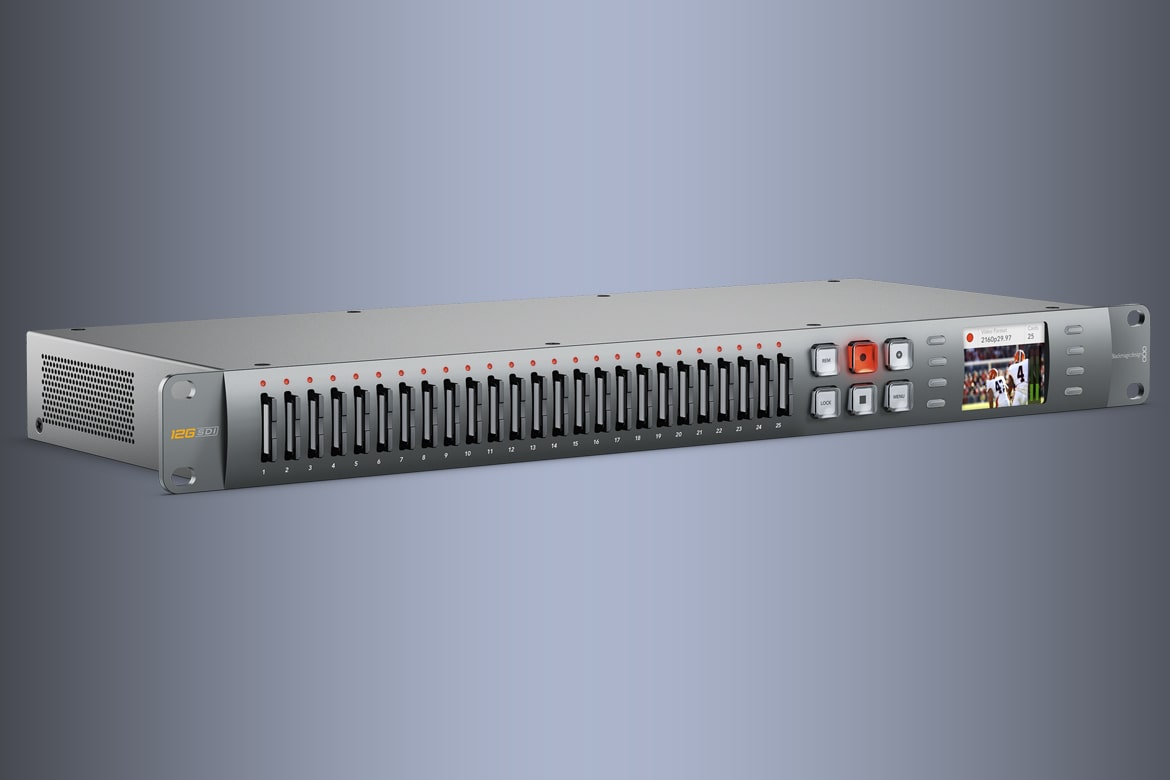

Blackmagic Duplicator 4K
Now it’s possible to distribute and sell Ultra HD content direct to customers at live events!
Product Highlights
- Record on up to 25 SD Cards
- Real-Time H.265 Encoding
- Scalable for Larger Projects
- SDI and Optical Video I/O
- Ethernet Control
- Single File Recording
- Simultaneous Card Formatting
- Blackmagic Duplicator Software
- Overview
- Tech Specs
Now you can immediately sell content at live events the moment they finish! The Blackmagic Duplicator 4K allows you to deliver Ultra HD content to consumers using the latest technology H.265 files recorded onto inexpensive SD cards. You get realtime H.265 encoding and multi rate 12G-SDI connections for recording all SD, HD and Ultra HD formats up to 2160p60, along with 25 built in SD card recorders. That means you can shoot, record, merchandise and deliver content that customers can actually view on their 4K televisions and Windows 10 computers today!

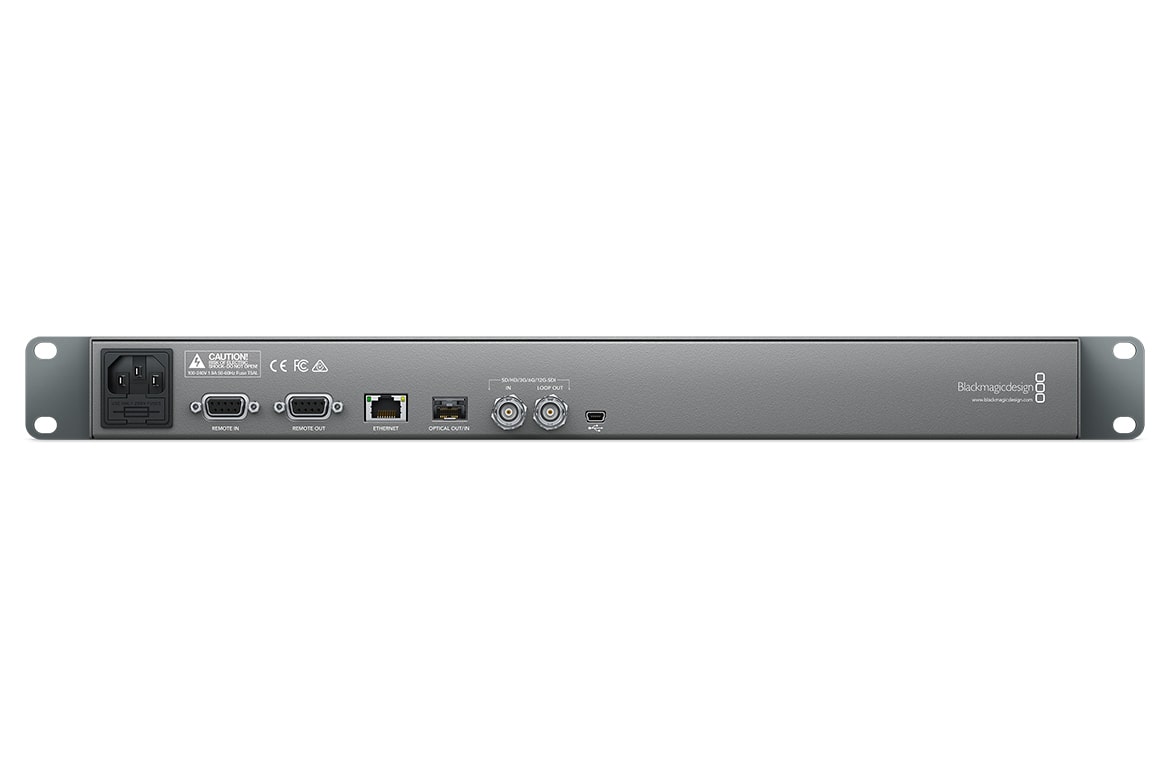

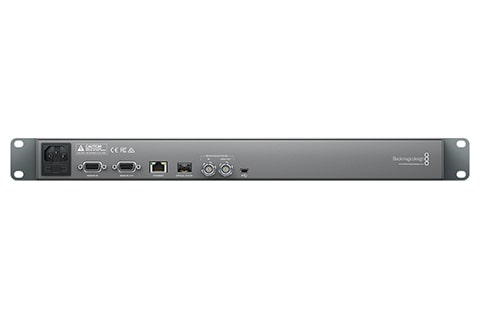

| Connections | |
| SDI Video Input | 1 x 10 bit SD/HD/UHD auto switching |
| SDI Video Output | Automatically matches the SD/HD/UHD 12G-SDI input. |
| SDI Audio Input | 16 channels embedded. |
| SDI Audio Output | 16 channels embedded. |
| Optical Input | 1 x 10 bit SD/HD/UHD auto switching. |
| Optical Output | 1 x 10 bit SD/HD/UHD auto switching. |
| SD Card Interface | 25 x SD Card Slots |
| Device Control | Sony™ compatible RS422 deck control port x 2. 1 x in plus 1 x out. |
| Computer Interface | 1 x USB 2.0 Mini-port for software updates and Blackmagic Duplicator software control. |
| Ethernet | Ethernet supports 10/100/1000 BaseT. |
| Standards | |
| SD Format Support | 525i59.94 NTSC, 625i50 PAL |
| HD Format Support | 720p50, 59.94 1080p23.98, 24, 25, 29.97, 30, 59.94, 60 1080PsF23.98, 24 1080i 60 |
| Ultra HD Format Support | 2160p23.98, 24, 25, 29.97, 30, 50, 59.94, 60. |
| SDI Compliance | SMPTE 259M, 292M, 296M, 425M |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit uncompressed. |
| Video Sampling | 4:2:2 |
| Software | |
| Software Included | Blackmagic Duplicator |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start, or via updater software. |
| Display | |
| Display | 1x built in high res LCD 320 x 240 for menu settings, status, format, audio level and total number of SD cards. |
| Operating Systems | |
| Mac | Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later. |
| Windows | Windows 8.1 64-bit or Windows 10 64-bit. |
| Power Requirements | |
| Power Supply | IEC Connector with fuse. 110v-240v |
| Physical Specifications | |
| Width | 19 inch |
| Height | 1.75 inch |
| Depth | 7.8 inch |
| Weight | 4.4 lb |
| Environmental Specifications | |
| Operating Temperature | 5 to 50°C Environment |
| Relative Humidity | 0% to 90% non-condensing |
| Power Requirements | 110-240V |
| Storage Temperature | -20°to 50°C (-4° to 113°F) |
Operating Systems
- Mac 10.13 High Sierra,
Mac 10.14 Mojave or later - Windows 8.1 or Windows 10
Power Requirements
- Power Supply
1 x Internal 100 ‑ 240V AC.
