Blackmagic 2110 IP Converter
New 4K model combines all the powerful ATEM Constellation HD broadcast features with 40 x 12G-SDI standards converted inputs.!
Product Highlights
- Rack Mount for Installation into Broadcast Systems
- Compact Rack Mountable Design
- Connect to any 3G‑SDI Equipment
- 10G Ethernet for Multiple SMPTE 2110 IP Channels
- Includes NMOS Protocol for Building a Virtual Router
- Supports Remote Administration for Settings and Updates
- Supports All SD and HD Formats up to 1080p60
- Get True 10‑Bit Broadcast Video Quality
- Flexible and Redundant Power
- Localized for 13 Popular Languages
- Overview
- Tech Specs

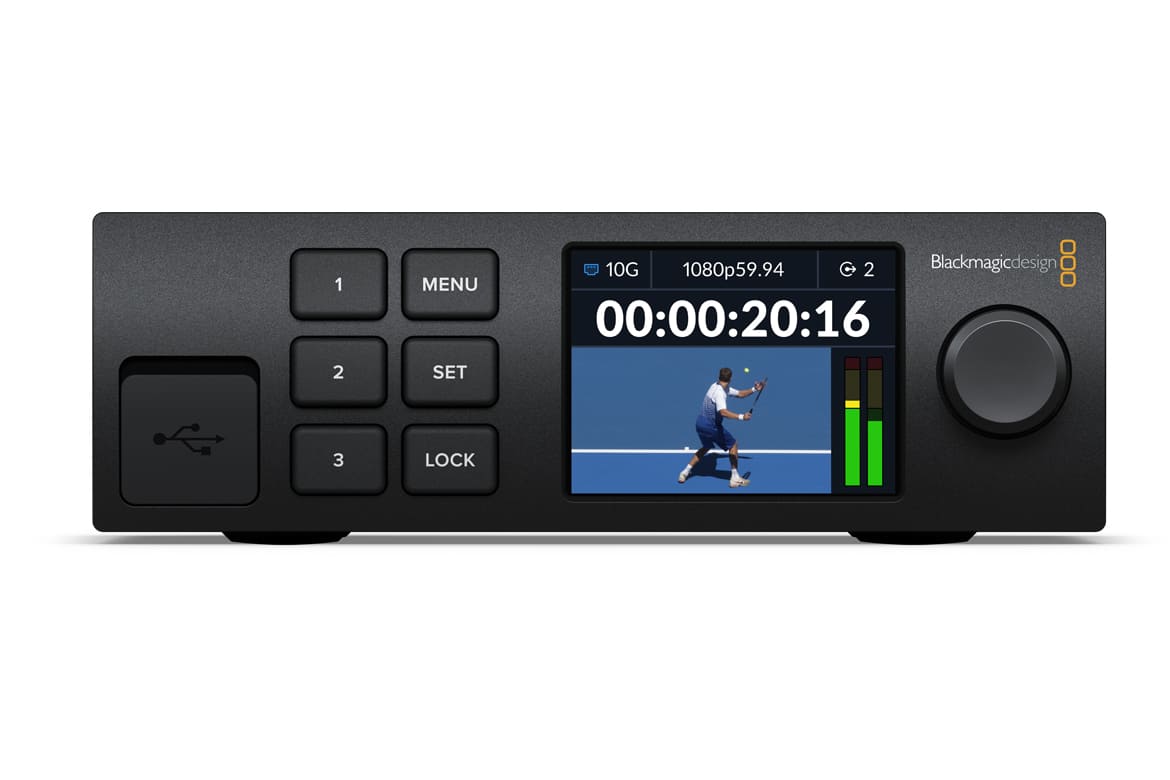

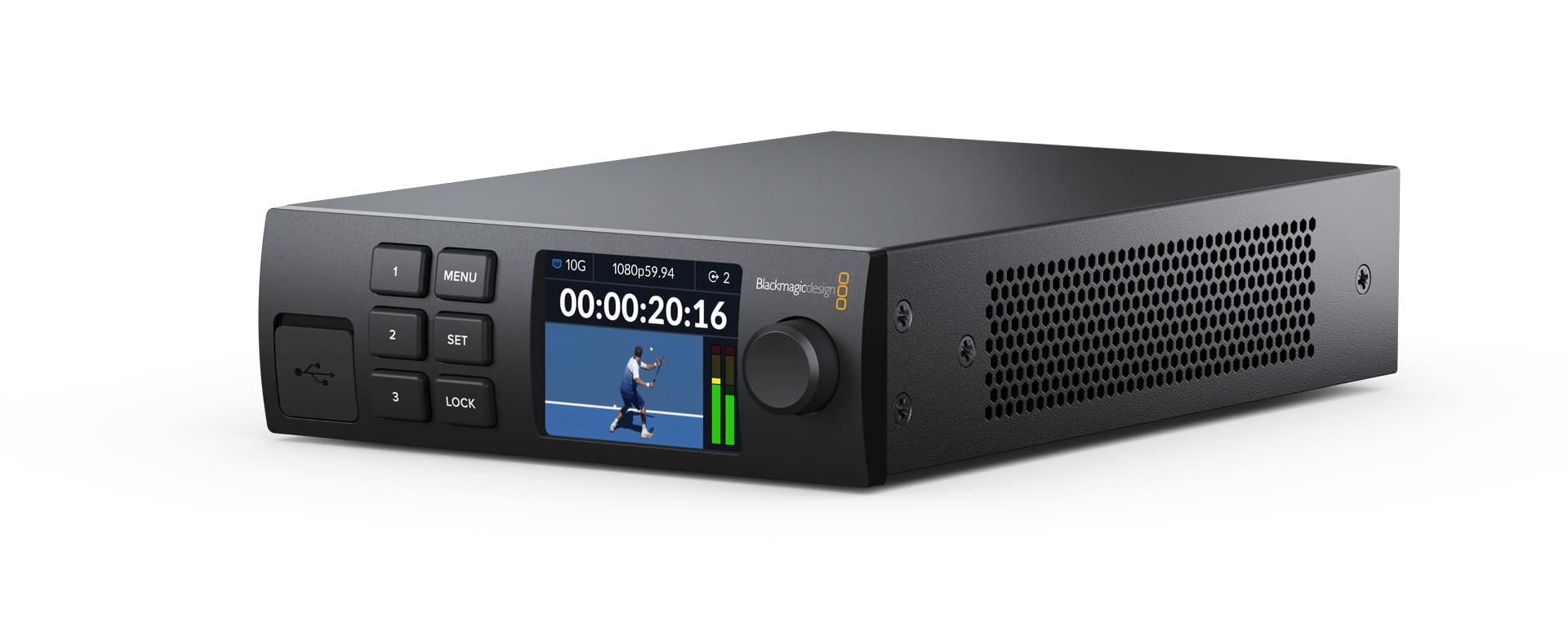

The new Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems. That’s because its 10G Ethernet connection can handle 3 separate video channels at the same time. Plus each channel has independent SDI inputs and SDI outputs, so you could even connect to 6 completely different SDI devices! All 3G-SDI inputs feature loop outputs so you can install the converter in line within existing SDI systems. There's also a reference output, timed to the 2110 PTP clock! Blackmagic 2110 IP Converter 3x3G includes an elegant front panel with a color LCD for monitoring, menus and diagnostics. You can even route IP inputs from the panel!

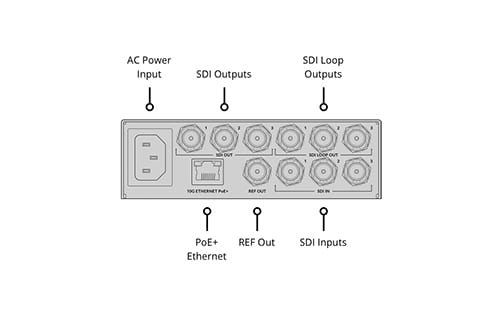

| Connections | |
| SDI Inputs | 3 |
| SDI Loop Outputs | 3 |
| SDI Outputs | 3 |
| SDI Audio Inputs | 16 channels embedded audio. |
| SMPTE 2110 Input / Output | 10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data. |
| 10G Ethernet Port | 1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T. |
| Reference Output | Tri-Sync or Black Burst. |
| Computer Interface | USB-C for updates, configuration and control. |
| Video Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and level B, ITU-R BT.656, ITU-R BT.601. |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| CColor Precision | 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
| Color Space | REC 601, REC 709 |
| IP Video Compliance | |
| SMPTE 2110-20 (Uncompressed Video) | IGMP v2 |
| SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
| SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
| NMOS IS-04 Discovery and Registration | v1.3.2 Peer-to-peer via mDNS/DNS-SD |
| NMOS IS-05 Connection Management | v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver capabilities |
| Control | |
| Built in Control Panel | 6 buttons with spin knob control and 2.2 inch color display for device control and menu settings. |
| External Control | RJ-45 10Gb/s Ethernet and USB-C. |
| Display | |
| Display | Built in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu settings. |
Operating Systems
- Mac
Mac 12.0 Monterey,
Mac 13.0 Ventura or later. - Windows
Windows 10 and 11.
Power Requirements
- Power Supply
1 x Internal 100 - 240V AC 50/60Hz. - Power Inputs
1 x IEC C14 socket for AC power.
1 x RJ45 Ethernet connector for power from PoE power supplies. - Power Usage
TBA
