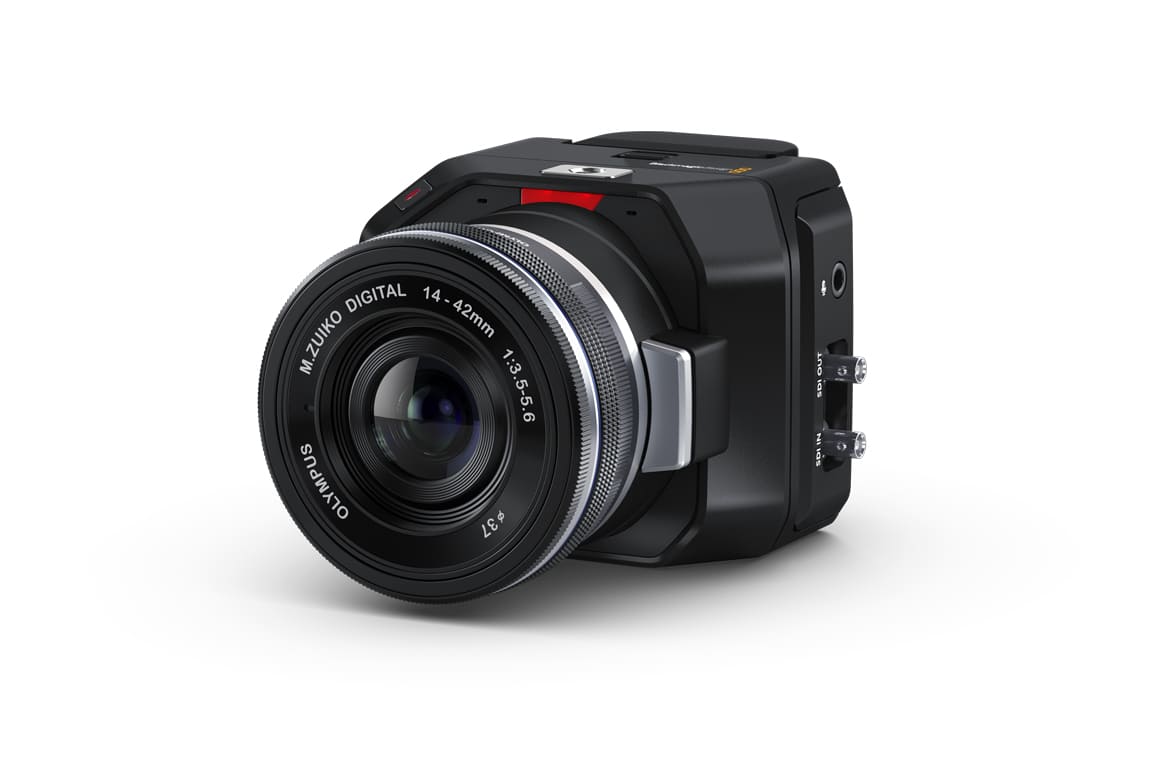

Blackmagic Micro Studio Camera 4K G2
Extremely tiny broadcast camera includes low light cinematic 4K sensor, MFT lens mount, 12G-SDI and HDMI for HD and Ultra HD up to 2160p60, built in color corrector and recording to USB disks!
Product Highlights
- Active Micro Four Thirds Lens Mount
- UHD 4K Resolutions up to 3840 x 2160p60
- 12G-SDI Video Input/Output, HDMI Output
- 13-Stop Dynamic Range, Compact Design
- Camera Control via SDI, HDMI, or USB
- Program and Talkback over SDI, Tally
- USB-C Expansion Port, 3.5mm Audio In
- Built-In Color Corrector

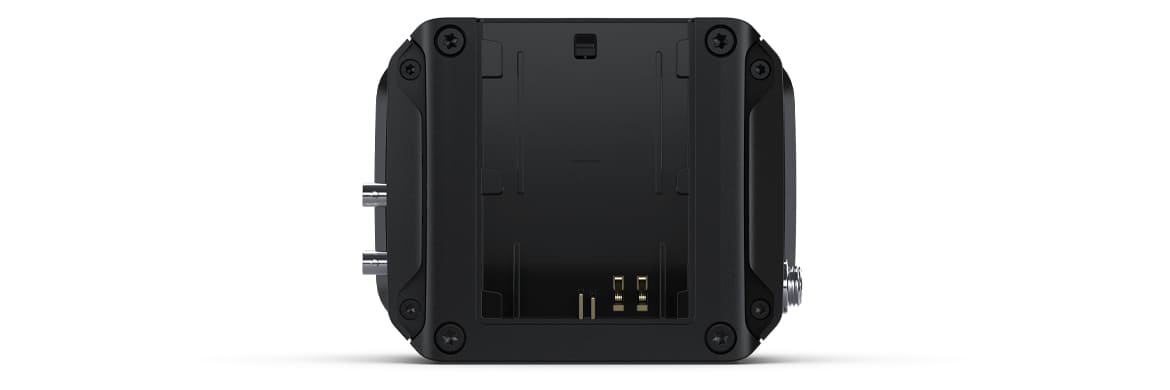

- Canon LP-E6 Battery Slot
- Overview
- Tech Specs

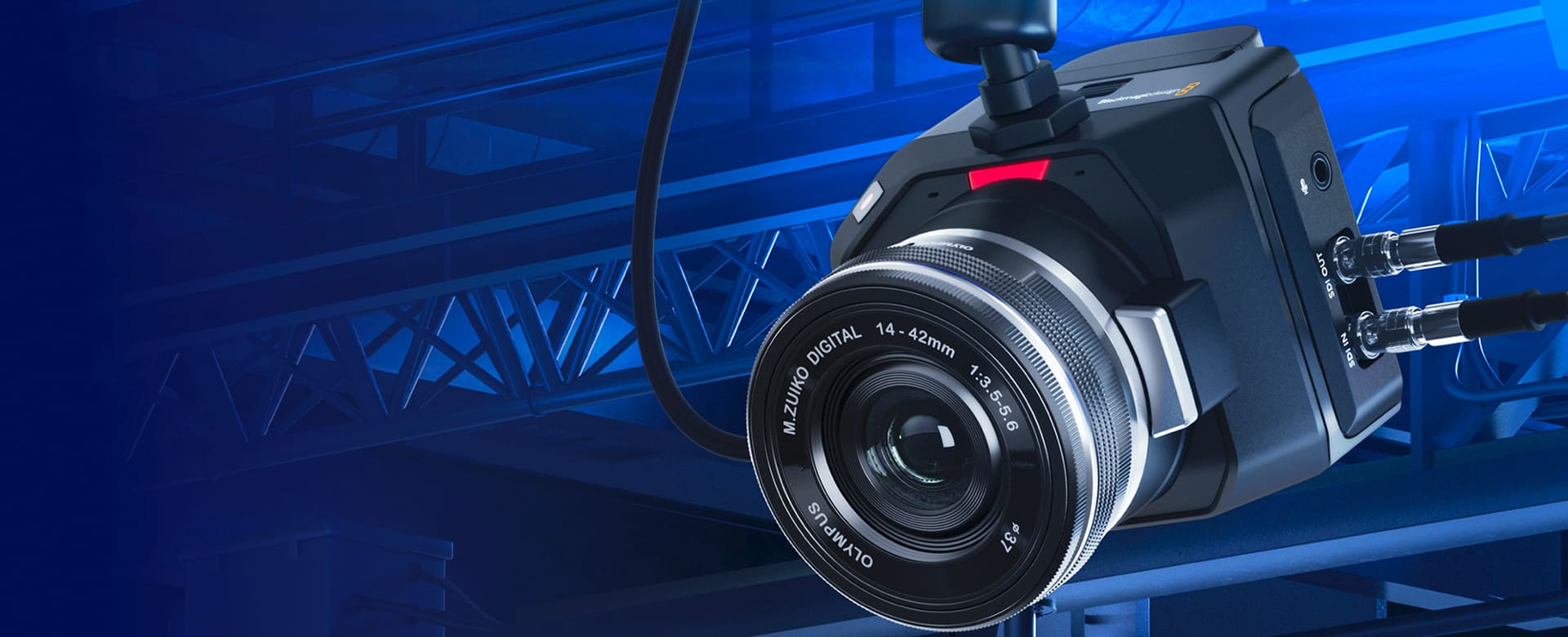

Blackmagic Micro Studio Camera 4K G2 is an amazing, broadcast quality live production camera in a tiny body. The Four Thirds sensor has 13 stops of dynamic range, incredible low light performance and produces stunning Ultra HD images in all lighting conditions. 12G-SDI Micro BNC connectors support 10-bit uncompressed video up to 2160p60 and 2 channel audio on the output. The input supports tally, camera control, control of the built-in color corrector plus lens control, from an ATEM switcher. Or when using an ATEM Mini switcher, the HDMI connector will output 1080 and support all control features. Plus it's even a Hollywood quality cinema camera because it can record Blackmagic RAW to external USB-C drives. With multiple mounting points, place Blackmagic Micro Studio Camera 4K G2 where no other camera will go!
| Camera Features | |
| Effective Sensor Size | 17.78mm x 10mm (Four Thirds) |
| Lens Mount | Active MFT Mount. |
| Lens Control | Iris, focus, zoom on supported lenses. |
| Dynamic Range | 13 Stops. |
| Dual Native ISO | 0dB and 18dB gain |
| Sensitivity at 0dB Gain | f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance. |
| Signal to Noise Ratio | 63dB for 2160p |
| Shooting Resolutions | 3840 x 2160 (Ultra HD) up to 60 fps. |
| Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD. |
| Focus | Auto focus available using compatible lenses. |
| Mounting Options | 1 x 1/4 inch (top), 3 x 1/4 inch (bottom). |
| Connections | |

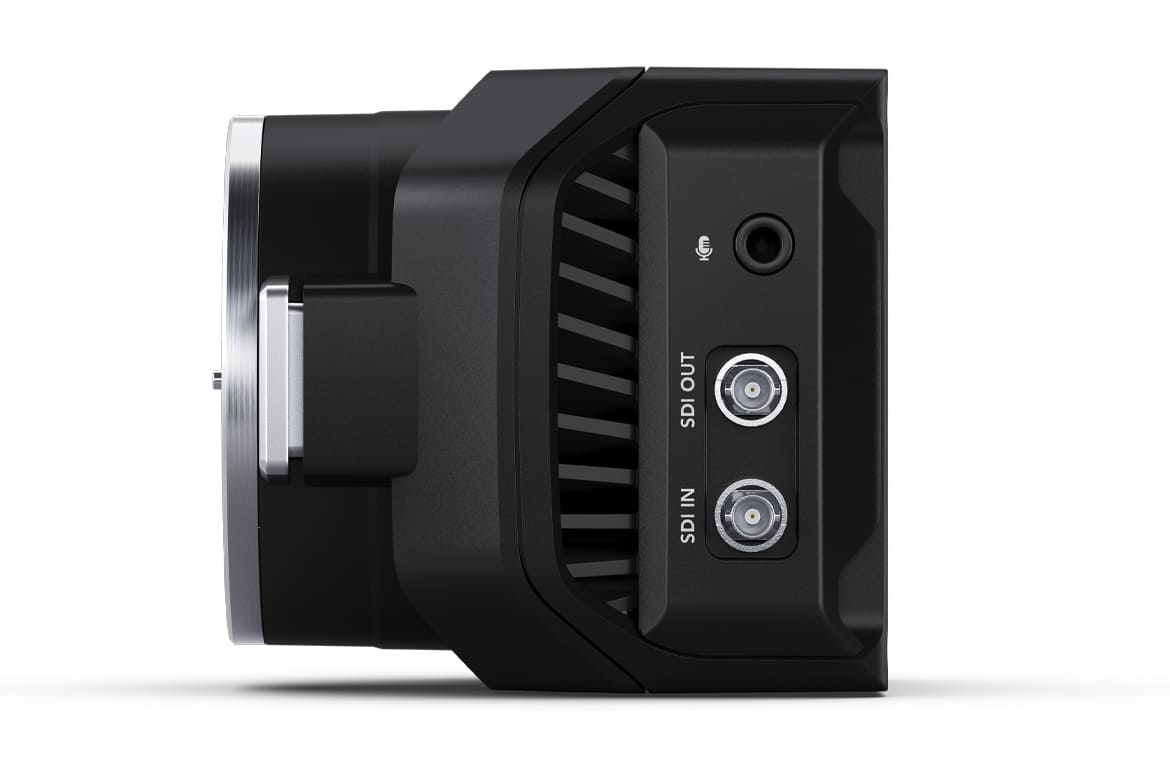

| SDI Video Inputs | 1 |
| SDI Video Outputs | 1 |
| SDI Rates | 3G, 6G, 12G. |

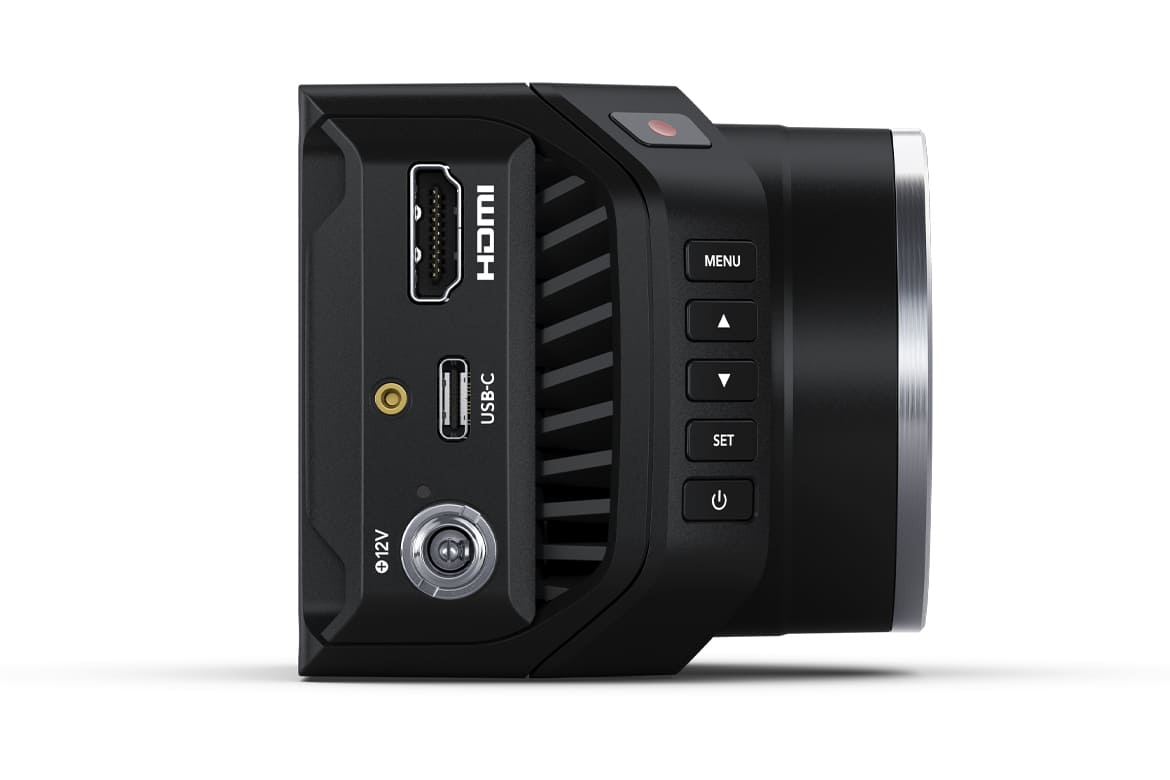

| HDMI 2.0 Video Outputs | 1 |
| HDMI Video Outputs | 1 x HDMI Type A output. HDMI output is always HD, up to 1080p60. |
| Analog Audio Input | 1 x 3.5mm Stereo Input. Can also be used for Timecode input. |
| Reference Input | Program SDI Input on camera or on Blackmagic Studio Converter. |
| SDI Audio Output | 2 channels of program audio embedded in 3G/6G/12G-SDI. |
| HDMI Audio Outputs | 2 channels 48 kHz and 24‑bit. |
| Remote Control | Remote camera control over SDI, HDMI or USB Ethernet with suitable adapter. |
| Computer Interface | 1 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port. |
| Audio | |
| Microphone | Integrated stereo microphone. |
| Built in Speaker | None |
| Standards | |
| SD Video Standards | None |
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10. |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24‑bit. |
| Media | |
| Media | 1 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. |
| Media Format | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
| Supported Codecs | |
| Codecs | Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5 |
| Control | |
| Control | 5 control buttons including Set, Up, Down, Menu, and Power. |
| External Control | Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. Blackmagic Control Protocol over SDI and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port. Camera Control REST API over USB Ethernet for external control via HTTP when used with REST client applications such as Postman. |
| Storage Features | |
| Storage Type | 1 x USB‑C 3.1 Gen 1 expansion ports for external media. |
| Recording Formats | Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate. |
| Storage Rates | Storage rates based on 30 frames per second. 3840 x 2160 (Ultra HD) Blackmagic RAW 3:1 - 127 MB/s Blackmagic RAW 5:1 - 77 MB/s Blackmagic RAW 8:1 - 48 MB/s Blackmagic RAW 12:1 - 32 MB/s Blackmagic RAW Q0 - 96 to 190 MB/s Blackmagic RAW Q1 - 64 to 153 MB/s Blackmagic RAW Q3 - 43 to 109 MB/s Blackmagic RAW Q5 - 26 to 64 MB/s |
| Network Management | |
| NTP | Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. |
| Web Media Manager | Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. |
| FTP | Download files from any drive attached to your camera using FTP. |
| SMB | File sharing using SMB. |
| Color Corrector | |
| Color Corrector | DaVinci YRGB |
| Talkback and Tally | |
| Live Tally Indicator | 1 x front facing for talent. |
| Talkback | SDI Channels 15 and 16. |
| Software | |
| Software Included | Blackmagic Camera Setup for Mac and Windows. |
| Accessories | |
| Optional Accessories | Blackmagic Focus Demand Blackmagic Zoom Demand ATEM Mini switchers ATEM SDI switchers ATEM Television Studio switchers ATEM Constellation switchers Blackmagic Video Assist LP-E6 Battery Micro BNC Cables |
| Physical Specifications | |
| Width | 3.3 in |
| Depth | 2.74 in |
| Height | 2.6 in |
| Weight | 10.58 oz |
| Environmental Specifications | |
| Operating Temperature | 0°to 40°C (32° to 104°F) |
| Storage Temperature | -20°to 45°C (-4° to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | |
| What's Included | Blackmagic Micro Studio Camera 4K G2 Turret dust cap External 12V DC power supply with locking connector and international socket adapters for most countries. Welcome wallet with QR code for software download |
Operating Systems
- Mac
Mac 12.0 Monterey,
Mac 13.0 Ventura or later. - Windows
Windows 10, 64-bit.
Windows 11, 64-bit.
Power Requirements
- Power Supply
1 x External 12V DC 36W power supply. - Power Inputs
1 x 12V DC locking 5.5 mm barrel connector. - Power Usage
18 ‑ 25 W.
