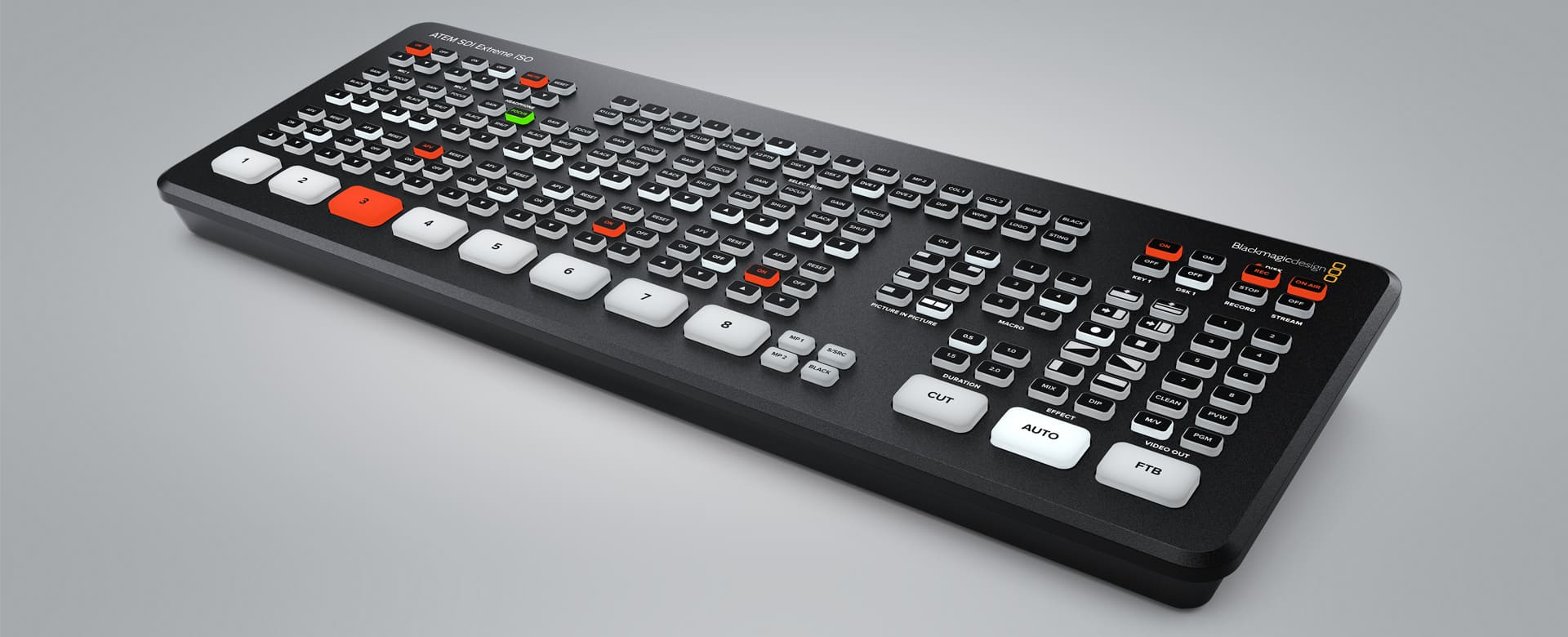

ATEM SDI Extreme ISO

Ultra portable live production with advanced broadcast features!
Product Highlights
  • 8-Channel 3G-SDI Live Streaming Switcher
  • Supports up to 1080p60
  • RTMP Streaming via Ethernet or USB-C
  • Record Program Out and Individual Inputs
  • 11-Input, 2-Channel Audio Mixer
  • Input Frame Rate and Format Converter
  • Re-Sync on All 3G-SDI Inputs
  • HD Multiview Output with up to 16 Views
  • Local and Software Switching
  • 4 x Upstream, 2 x Downstream Keyers

  • Overview
  • Tech Specs

This model includes all the features of ATEM SDI Pro ISO model but has 8 SDI inputs and 4 SDI outputs. It can record 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved.

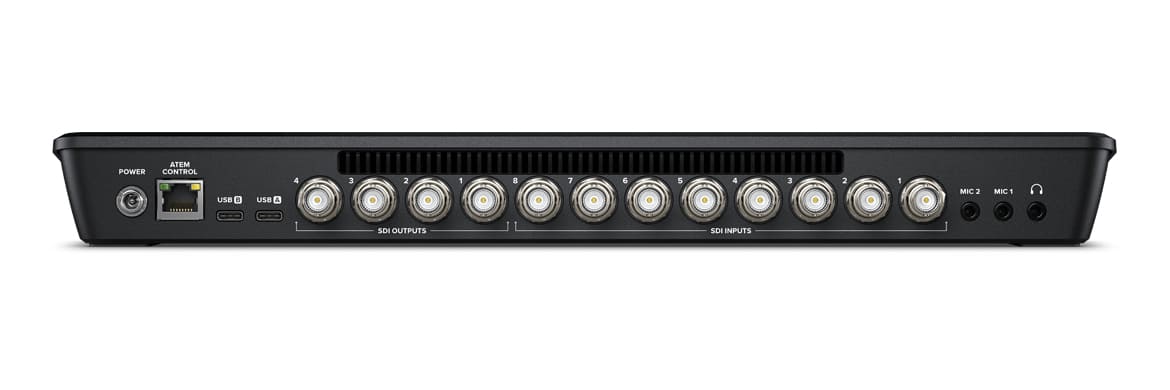

Connections
Total Video Inputs 8
Total Outputs 6
Total Aux Outputs 4
Total Audio Inputs 2 x 3.5mm stereo mini jack.
Total Audio Outputs 1 x 3.5mm stereo mini jack.
Timecode Connection None
SDI Video Inputs 8 x 3G-SDI, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync On all 8 SDI inputs.
Frame Rate and Format Converters On all 8 SDI inputs.
SDI Program Outputs 4
Ethernet Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection.
Computer Interface 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection.
Standards
HD Video Input Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards None
Video Sampling 4:2:2 YUV
Color Precision 10-bit
Color Space Rec 709
Colorspace Conversion Hardware based real time.
Product Specifics
Upstream Keyers 4
Downstream Keyers 2
Advanced Chroma Keyers Up to 4
Linear/Luma Keyers Up to 4
Transition Keyers DVE only.
Total Number of Layers 9
Pattern Generators 5
Color Generators 2
DVE With Borders and Drop Shadow 2
Interface Minimum monitor resolution of 1366 x 768.
Audio
Audio Mixer 11 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog Input Unbalanced stereo
Analog Input Delay Up to 8 frames
Input Impedance 1.8k
Max Input Level +6dBV
Mic Plug In Power Available on both 3.5mm mini jack connections.
Streaming
Direct Streaming ATEM SDI Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Recording
Direct Recording Video and Audio USB-C 3.1 Gen 1 expansion port can record directly to external media.
Video Recording 8 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Audio Recording 10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x SDI 2 channel embedded audio inputs.
Switching Program switching recorded as a DaVinci Resolve project .drp file.
Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi View Monitoring
Multi View Monitoring Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 SDI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.
Multi View Video Standard HD
Media Player
Media Players 2
Channels Fill and key for each Media Player.
Media Pool Still Image Capacity 20 with fill and key.
Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control

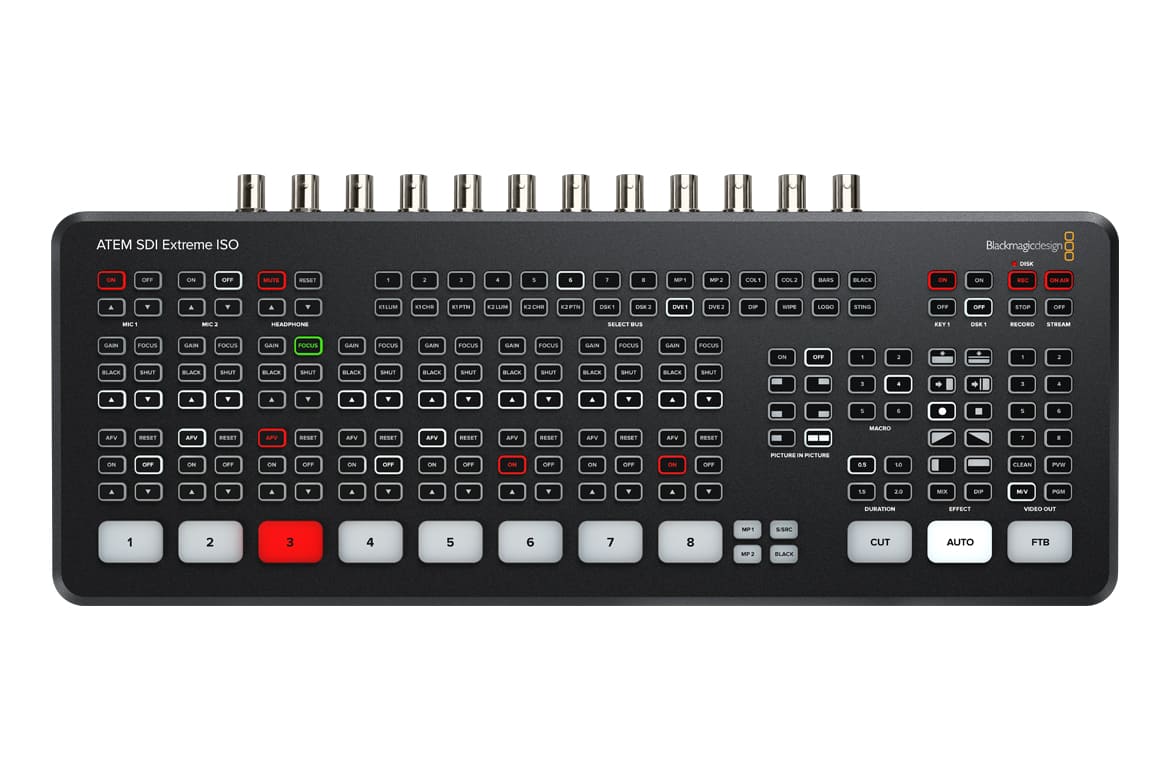

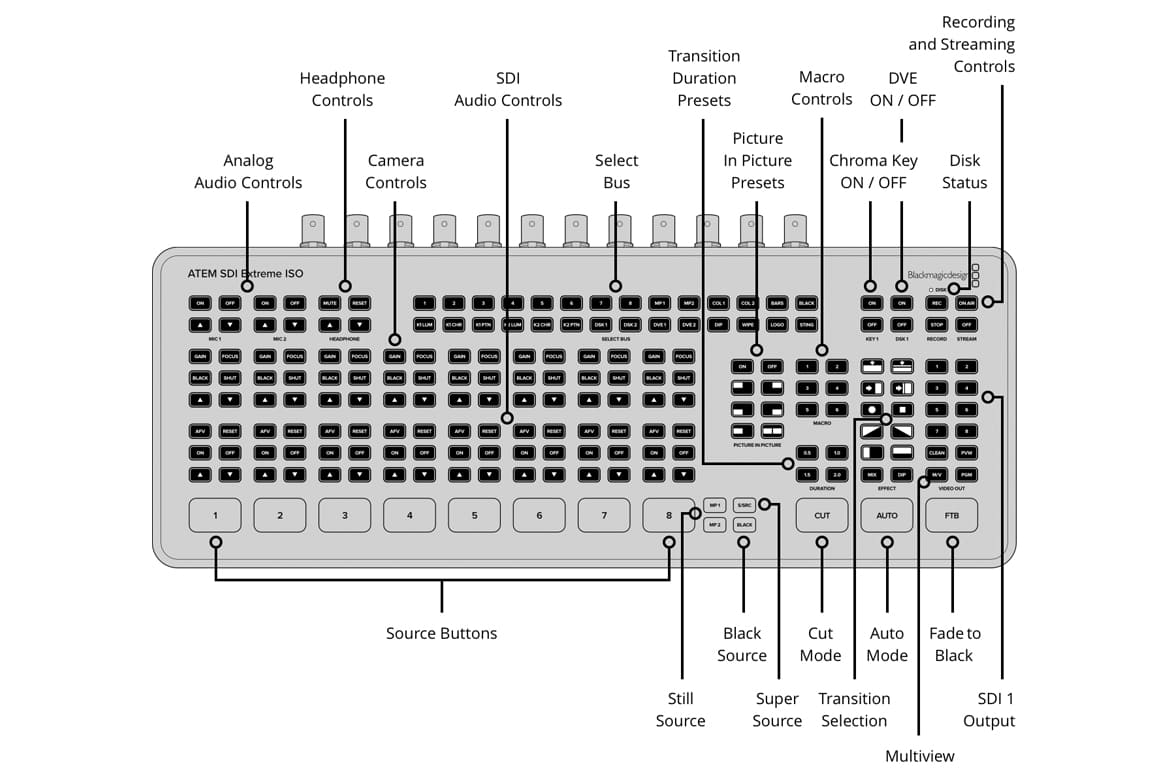

Control Panel Built in control panel. Software control panel included. Supports optional hardware panel.
Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Extreme ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Control Panel Compatibility Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM SDI Extreme ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control Panel Included ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 64 bit or Windows 11.
Software
Software Updates Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Physical Specifications
Width 370 mm
Depth 151 mm
Height 39.6 mm
Weight 1.42 kg
Environmental Specifications
Operating Temperature 0-40 degrees celsius
Storage Temperature -20 - 60 degrees celsius
Relative Humidity Up to 95%

Product Highlights
  • Mac
    Mac 11.0 Big Sur,
    Mac 12.0 Monterey or later.
  • Windows
    Windows 10 and 11.

Power Requirements
  • Power Supply
    1 x External 12V power supply.
  • Power Usage
    36W
