ATEM Production Studio 4K
The world's first Ultra HD 4K live production switcher! Features 6G-SDI in SD, HD and Ultra HD!
Product Highlights
- Supports NTSC/PAL/HD/UltraHD 4K @ 10-bit
- Supports 4K Resolution Over SDI or HDMI
- 4 x 6G-SDI & 4 x HDMI Inputs (4k/HD/SD)
- Tri-Sync/Blackburst Ref. Sync Input
- 8 x Built-in Frame Synchronizers
- Multiview Monitoring in HD
- Program Outputs in SD/HD/4K HD
- 1 x Upstream & 2 x Downstream Keyers
- Audio: 10 x Input, 2 Channel Mixer
- Hardware or Software Mac/PC Control
- Overview
- Tech Specs
ATEM Production Studio 4K lets you connect up to 8 SD, HD or Ultra HD 4K video cameras, disk recorders and computers to do true broadcast quality work. You get all the features you expect from a professional switcher including chroma key, transitions, media pool, downstream keyers, audio mixer, multi view and the world's first 6G-SDI and HDMI 4K video connections.

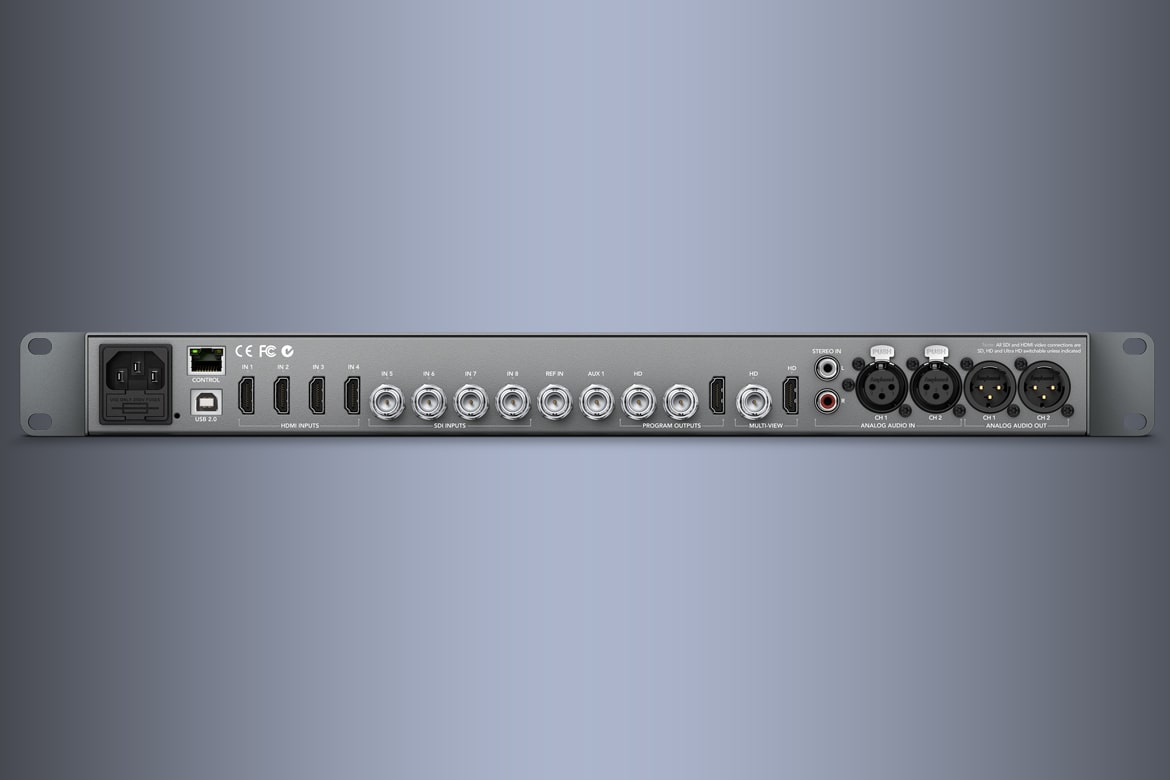

| Connections | |
| Total Video Inputs | 8 |
| Total Video Outputs | 6 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G |
| Total Audio Inputs | 2 x XLR. 2 x RCA |
| Total Audio Outputs | 2 x XLR Program |
| Timecode Connection | None |
| SDI Video Inputs | 4 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio |
| HDMI Video Inputs | 4 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio |
| SDI Audio Outputs | 2 channel embedded into SDI output |
| Reference Input | Tri-Sync or Black Burst |
| Video Input Re-Sync | On all 8 inputs |
| SDI Program Outputs | 1 x 10-bit SD/HD/Ultra HD 4K switchable |
| HDMI Program Outputs | 1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable |
| Down Converted SDI Program Outputs | 1 x 10-bit HD (Ultra HD 4K to HD) |
| SDI Aux. Output | 1 |
| Total Multi Views | 1 |
| SDI Multi View Outputs | 1 |
| HDMI Multi View Outputs | 1 |
| Control Panel Connection | Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94 1080i50, 1080i59.94 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 424M |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| HDMI Input Resolutions for Computers | 720 x 480i 59.97Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz and 1920 x 1080 59.94Hz, 1920 x 1080 50Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz |
| Colorspace Conversion | Hardware based real time |
| Processing Delay | 1 Line |
| Audio Mixer | 10 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. Analog outputs may be used for separate monitoring |
| 4K to HD Down Conversion | Yes, program x 1 |
| Product Specifics | |
| Upstream Keyers | 1 with Chroma/Linear/Luma key |
| Downstream Keyers | 2 |
| Chroma Keyers | 1 |
| Talkback Support | None |
| Mix Minus Support | None |
| Linear/Luma Keyers | 3 |
| Transition Keyer (Stinger/DVE) | None |
| Total Number of Layers | 4 |
| Pattern Generators | 3 |
| Color Generators | 2 |
| DVE with 3D Borders & Drop Shadow | None |
| Display interface | Minimum monitor resolution of 1366 x 768 |
| Number of Windows | 1 x 10 |
| Routable Windows | 8 |
| Tally | Red for program and green for preview indication |
| Windows Source Labels | Yes |
| Control Panel | Software or optional hardware panel |
| Media Player | |
| Media Players | 2 |
| Media Pool Still Image Capacity | 20 with fill and key |
| Media Pool Clip Capacity | None |
| Media Player Clip Length in 720 HD | None |
| Media Player Clip Length in 1080 HD | None |
| Media Player Clip Length in Ultra HD | None |
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG and TIFF |
| Media Pool Video File Format | None |
| Media Pool Audio File Format | None |
| Channels | Fill and key for each Media Player |
| Multi-View Monitoring | |
| Multi View Monitoring | 1 x 10 Views |
| Multi View Video Standard | HD |
| Display | |
| Interface | Minimum monitor resolution of 1366 x 768 |

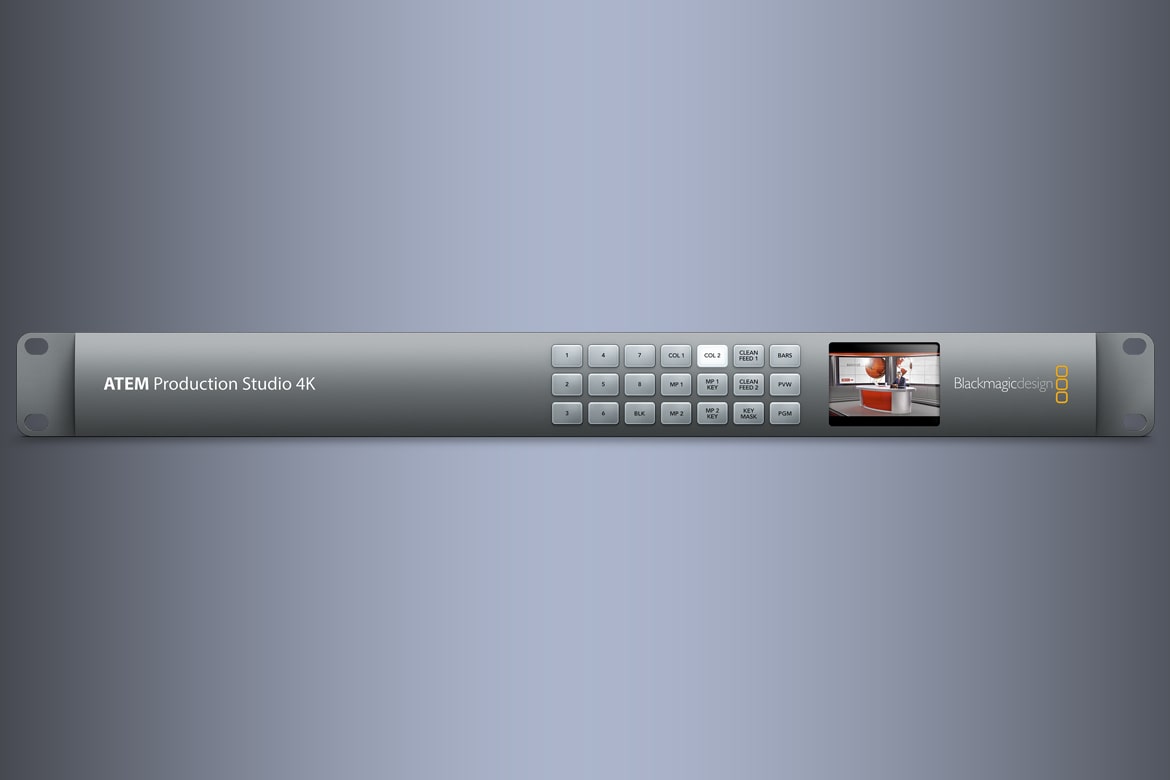

| Front Panel | Built in LCD monitor for video and 42 LED buttons for Aux switching |
| Software | |
| Control Panel Included | ATEM Software Control Panel included free for Mac 10.10 Yosemite, Mac 10.11 El Capitan or later and Windows 8.1 64-bit or Windows 10 64-bit |
| Tally Output | Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.) |
| Software Updates | Using USB connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility |
| Configuration | Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis |
| Physical Specifications | |
| Width | 19 in |
| Height | 1.73 in |
| Depth | 5.79 in |
| Weight | 3.75 lb |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 95% non-condensing |
Operating Systems
- Mac
Mac 10.12 Sierra,
Mac 10.13 High Sierra or later - Windows
Windows 8.1 or Windows 10
Power Requirements
- Power Supply
1 x Internal 100 - 240V AC - Power Usage
60W
