Product Highlights
- Control up to 4 Cameras
- For BMD URSA & Studio Cameras
- Iris, Shutter Speed & Paint Controls
- Ethernet Connectivity

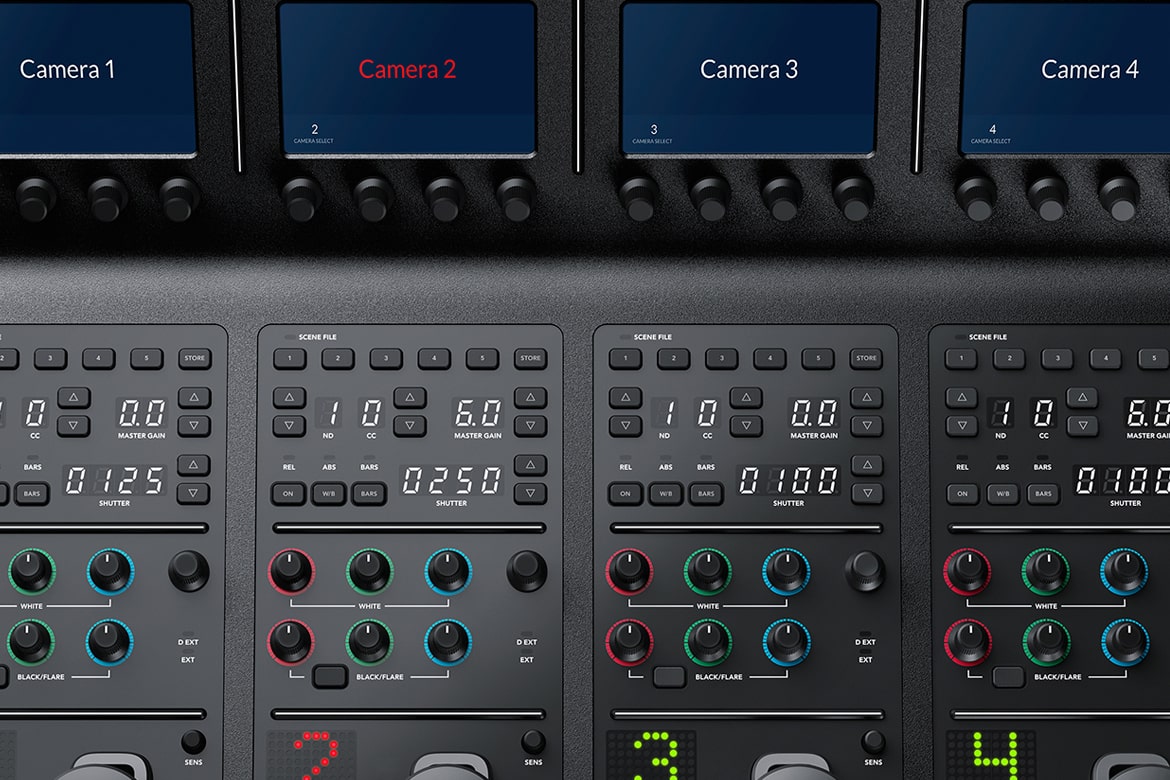

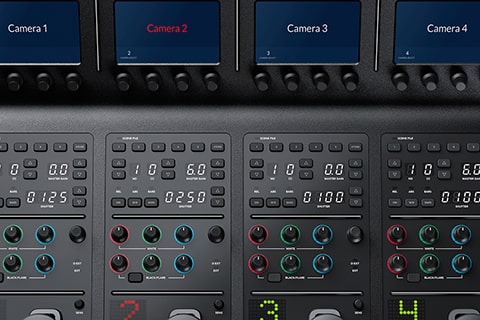

- LCD Screens with Soft Buttons & Encoders
- 4 x High-Quality Joysticks
- Recallable Presets
- Overview
- Tech Specs
Control up to four URSA Mini, URSA Broadcast, Blackmagic Studio, or Micro Studio cameras!

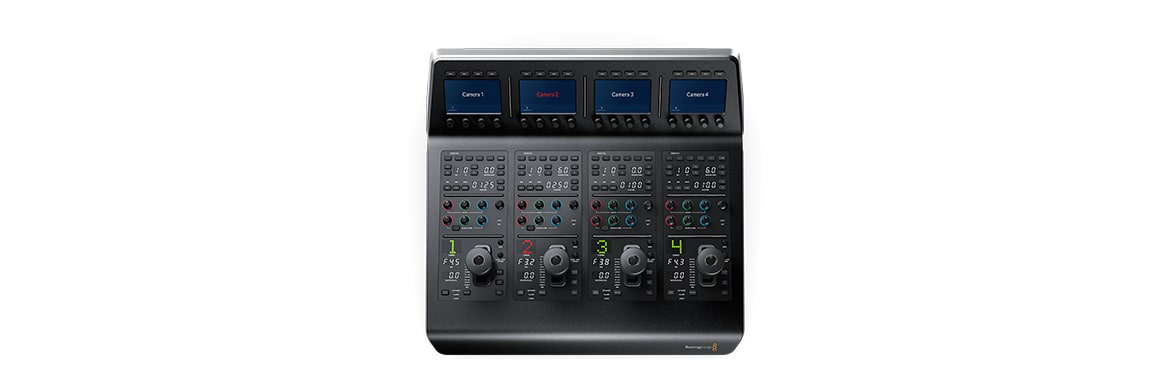

The ATEM Camera Control Panel provides independent controls for up to 4 URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio cameras from a single control panel. You get iris control, shutter speed, white balance, master gain, pedestal, RGB controls for white and black, and more.

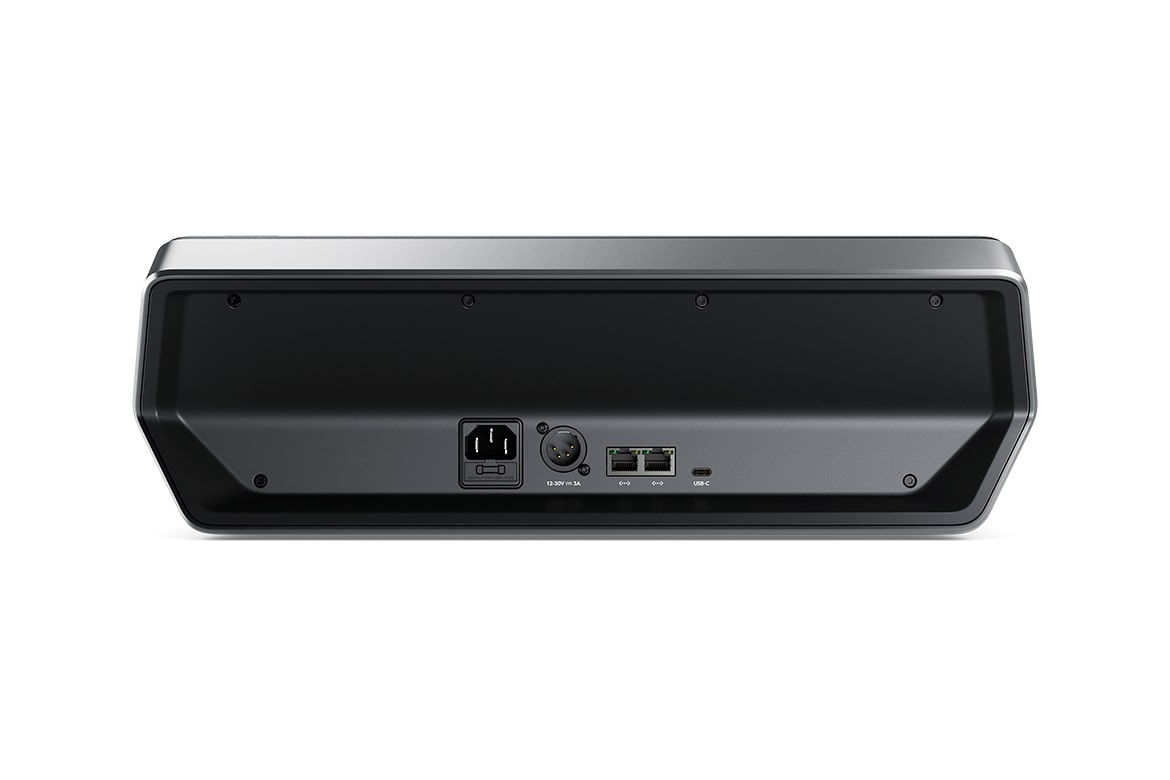

| Connections | |
| Ethernet | 2 x 10/100/1000 BaseT with loop output for additional control panels or computers. |
| Software Updates | 1 x USB-C for firmware updates. |
| Product Specifics | |
| LCD Menu Displays | 4 |
| Camera Number Display | Green off air, red on air |
| Setup | White and black balance setup |
| 3 Axis Joystick | 4 |
| Preview Button | 4 |
| Iris Control | Auto Iris On, Coarse control. |
| Panel Active | Protects settings |
| Software | |
| Software Applications: | ATEM Software Control Panel. | Physical Specifications |
| Width | 16.93 in |
| Depth | 15.31 in |
| Height | 5.57 in |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | Up to 95% |
Operating Systems
- Mac
Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows
Windows 8.1 or Windows 10.
Power Requirements
- Input Voltage
1 x Internal 100 - 240V AC. - DC Power
12-30V 3A. - Redundant Power
Yes - Power Usage
30W
