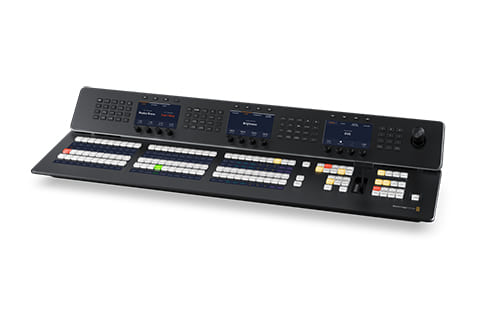

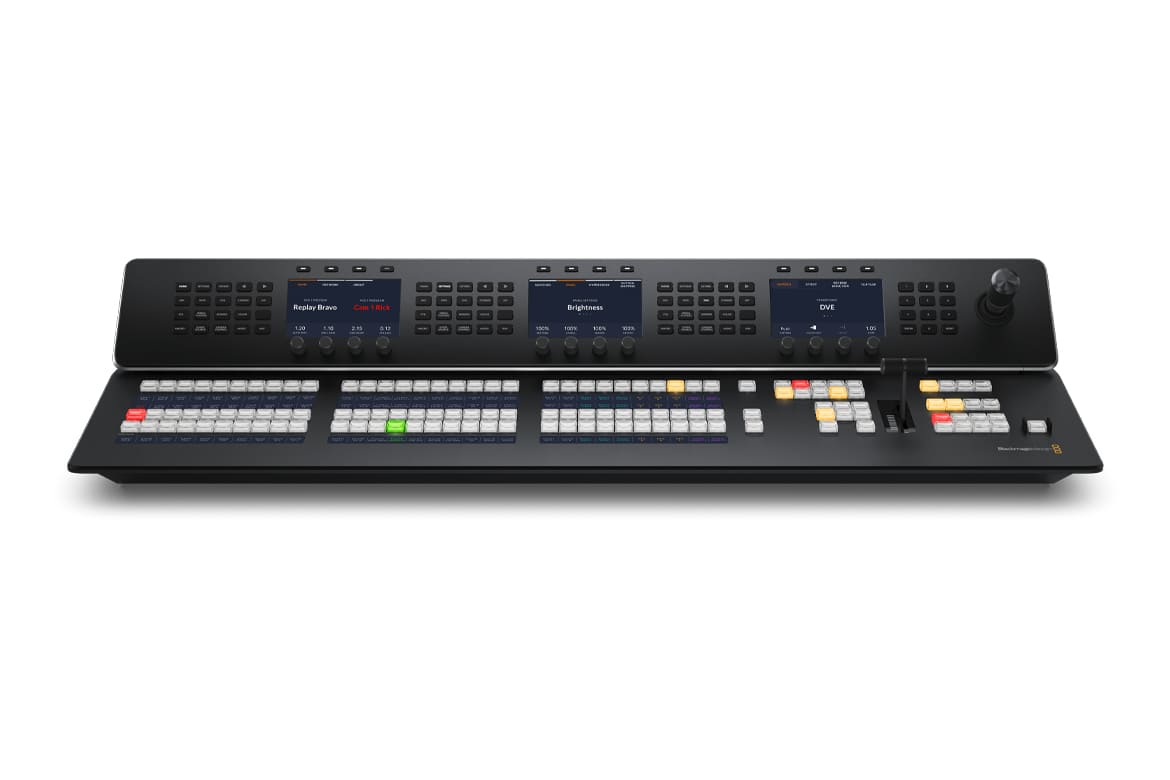

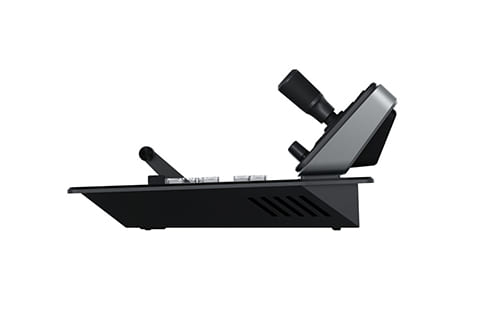

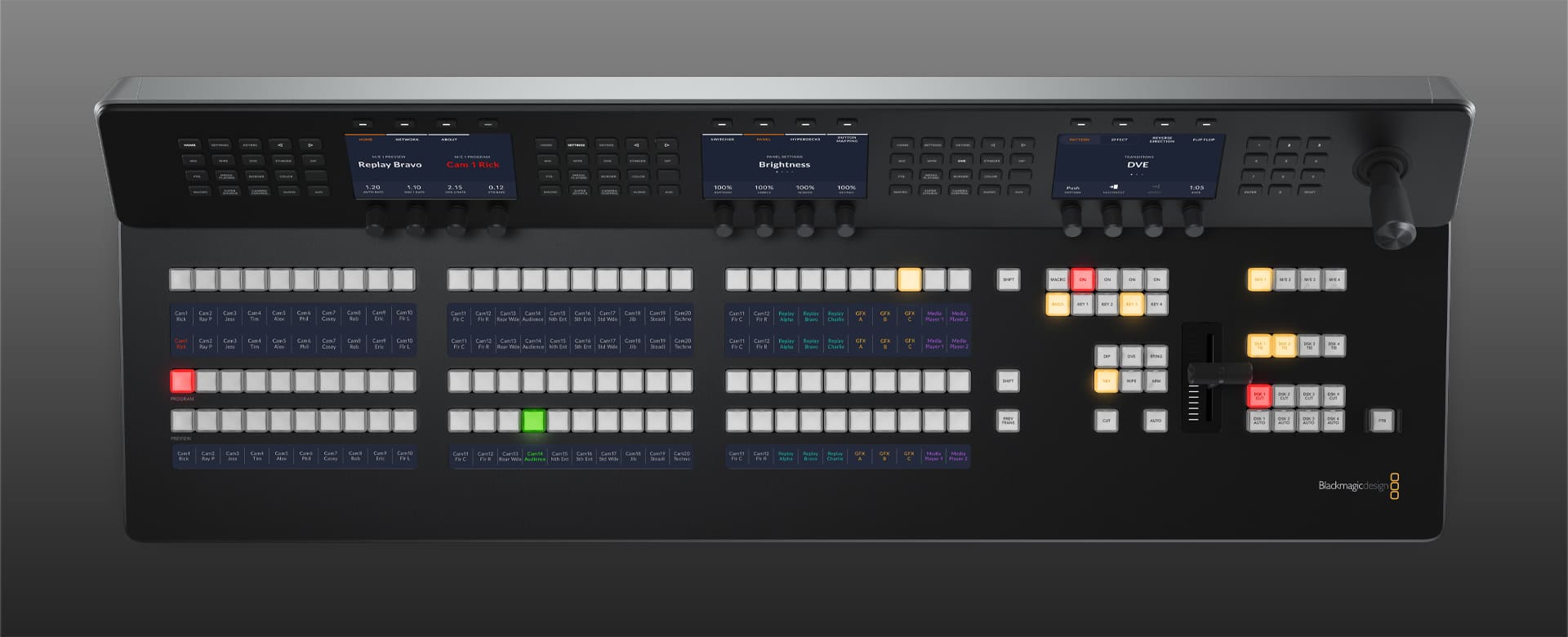

ATEM 1 M/E Advanced Panel 30
Larger 1 M/E hardware panel with 20 input buttons and 2 system control LCDs, plus buttons for control of 4 upstream keyers, 4 downstream keyers and 4 M/E rows. Includes a joystick and T‑bar fader!
Product Highlights
- Control Panel for ATEM Switchers
- 30 Input Buttons
- 3 System Control LCDs
- 4 x Upstream & 4 x Downstream Keyers
- 1 x M/E Row
- Joystick for Precise DVE Control
- Ergonomically Designed T-Bar
- Single-Button Fade to Black
- Dedicated Preview Transition Button
- Color Backlit Buttons
- Overview
- Tech Specs
The ATEM 1 M/E Advanced Panel 30 features a single M/E row, 30 input button design that is ideal for switching big productions from desk surfaces that are not deep enough for a bigger panel. It has 3 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and it also includes an independent select bus! Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!
| Connections | |
| Ethernet | 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. |
| Software Updates | 1 x USB-C for firmware updates. |
| Product Specifics | |
| Number of Mix Effects Rows | 1 |
| Direct Cross Points | 30 |
| Shifted Cross Points | 60 |
| Crosspoint Button Type | Tri-Color LED |
| Preview Transition | 1 |
| Transition Rate Displays | Via main menu |
| LCD Menu Displays | 3 |
| Menu Control | 3 x 20 buttons |
| Dedicated Macro Buttons | 1 x 30 |
| Transport Control Buttons | 8 |
| Destination Bus | 1 |
| Source Select Bus | 1 |
| Fader Bar | 1 |
| 3 Axis Joystick | 1 |
| Numeric Keypad | 1 |
| Software | |
| Software Applications | ATEM Software Control Panel. |
| Physical Specifications | |
| Width | 36.2 in |
| Depth | 12.5 in |
| Height | 5.63 in |
| Weight | 24 lb |
| Environmental Specifications | |
| Operating Temperature | 0°to 40°C (32° to 104°F) |
| Storage Temperature | -20°to 45°C (-4° to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | |
| What's Included | ATEM 1 M/E Advanced Panel 30 Welcome wallet with QR code for software download |
Operating Systems
- Mac
Mac 11.1 Big Sur,
Mac 12.0 Monterey or later. - Windows
Windows 10 and 11.
Power Requirements
- Input Voltage
2 x Internal 100 - 240V AC. - Redundant Power
Yes - Power Usage
75W
