ATEM 1 M/E Advanced Panel 20

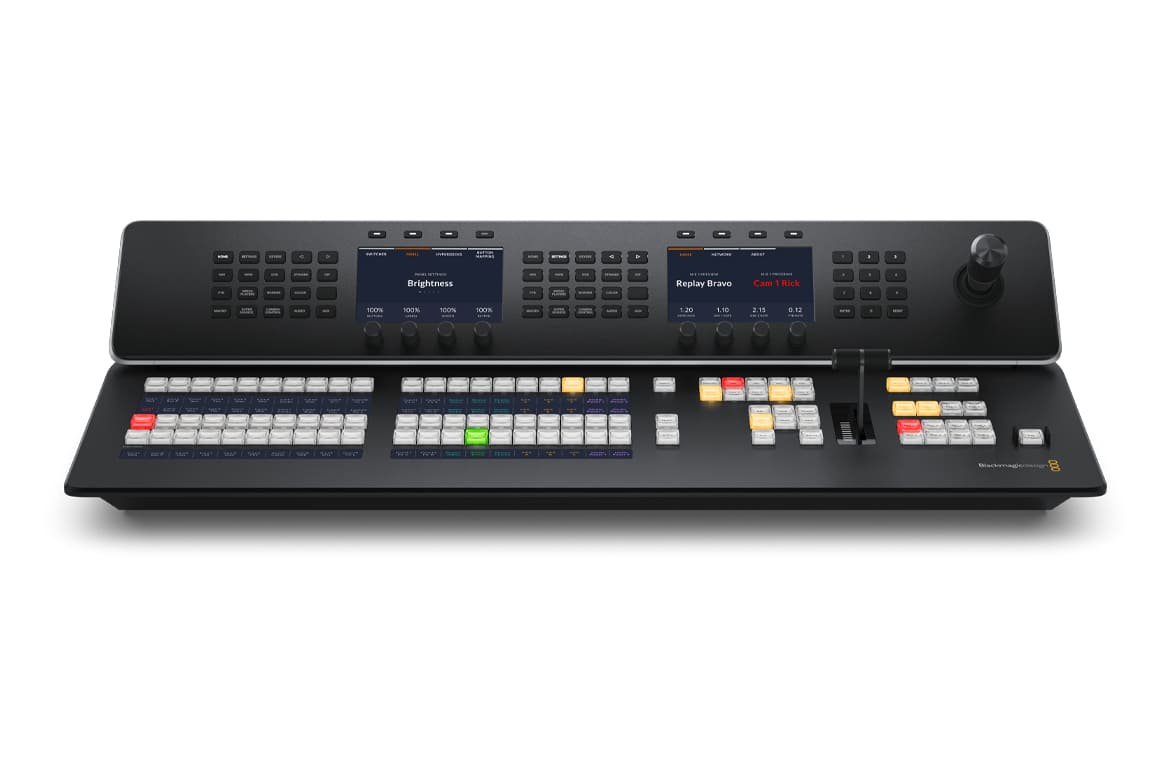

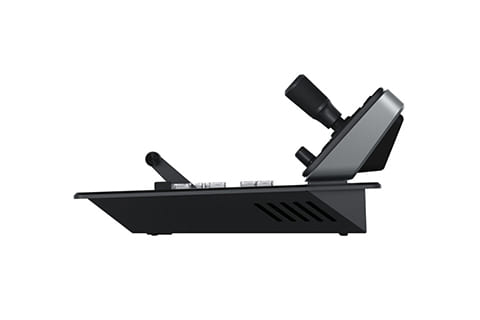

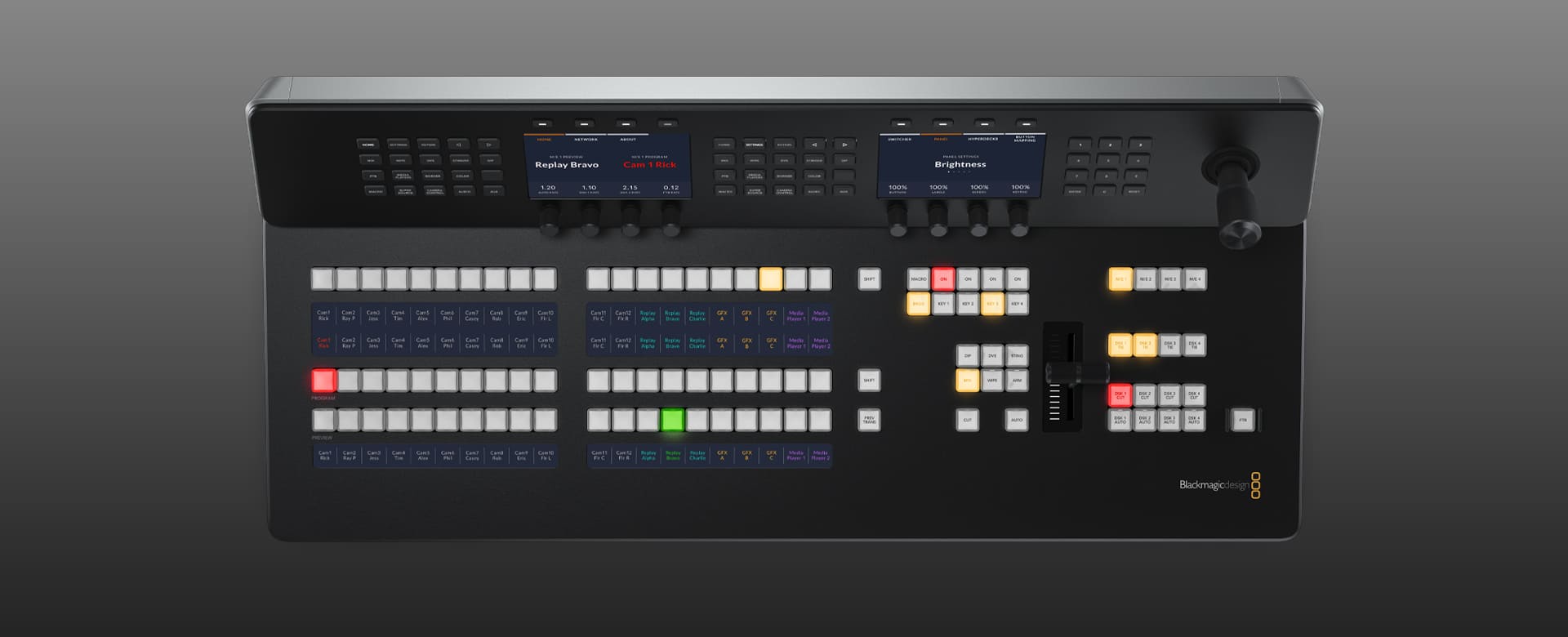

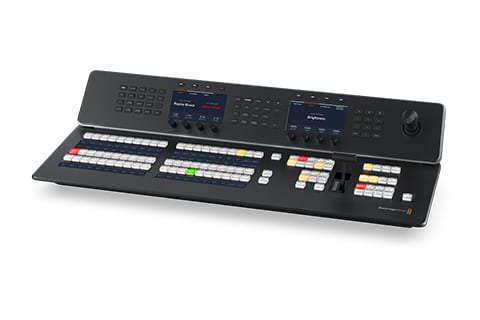

Larger 1 M/E hardware panel with 20 input buttons and 2 system control LCDs, plus buttons for control of 4 upstream keyers, 4 downstream keyers and 4 M/E rows. Includes a joystick and T‑bar fader!
Product Highlights
- Control Panel for ATEM Switchers
- 20 Input Buttons
- 2 System Control LCDs
- 4 x Upstream & 4 x Downstream Keyers
- 1 x M/E Row
- Joystick for Precise DVE Control
- Ergonomically Designed T-Bar
- Single-Button Fade to Black
- Dedicated Preview Transition Button
- Color Backlit Buttons
- Overview
- Tech Specs
The ATEM 1 M/E Advanced Panel 20 is a single M/E, 20 input button switching panel that includes the features and flexibility needed for switching big and small productions in a highly portable and compact design. It has 2 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and there is an independent select bus. Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!
Connections | |
Ethernet | 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. |
Software Updates | 1 x USB-C for firmware updates. |
Product Specifics | |
Number of Mix Effects Rows | 1 |
Direct Cross Points | 20 |
Shifted Cross Points | 40 |
Crosspoint Button Type | Tri-Color LED |
Preview Transition | 1 |
Transition Rate Displays | Via main menu |
LCD Menu Displays | 2 |
Menu Control | 2 x 20 buttons |
Dedicated Macro Buttons | 1 x 20 |
Transport Control Buttons | 8 |
Destination Bus | 1 |
Source Select Bus | 1 |
Fader Bar | 1 |
3 Axis Joystick | 1 |
Numeric Keypad | 1 |
Software | |
Software Applications | ATEM Software Control Panel. |
Physical Specifications | |
Width | 28.4 in |
Depth | 12.5 in |
Height | 5.63 in |
Weight | 19.2 lb |
Environmental Specifications | |
Operating Temperature | 0°to 40°C (32° to 104°F) |
Storage Temperature | -20°to 45°C (-4° to 113°F) |
Relative Humidity | 0% to 90% non-condensing |
What's Included | |
What's Included | ATEM 1 M/E Advanced Panel 20 Welcome wallet with QR code for software download |
Operating Systems
- Mac
Mac 11.1 Big Sur,
Mac 12.0 Monterey or later. - Windows
Windows 10 and 11.
Power Requirements
- Input Voltage
2 x Internal 100 - 240V AC. - Redundant Power
Yes - Power Usage
75W
