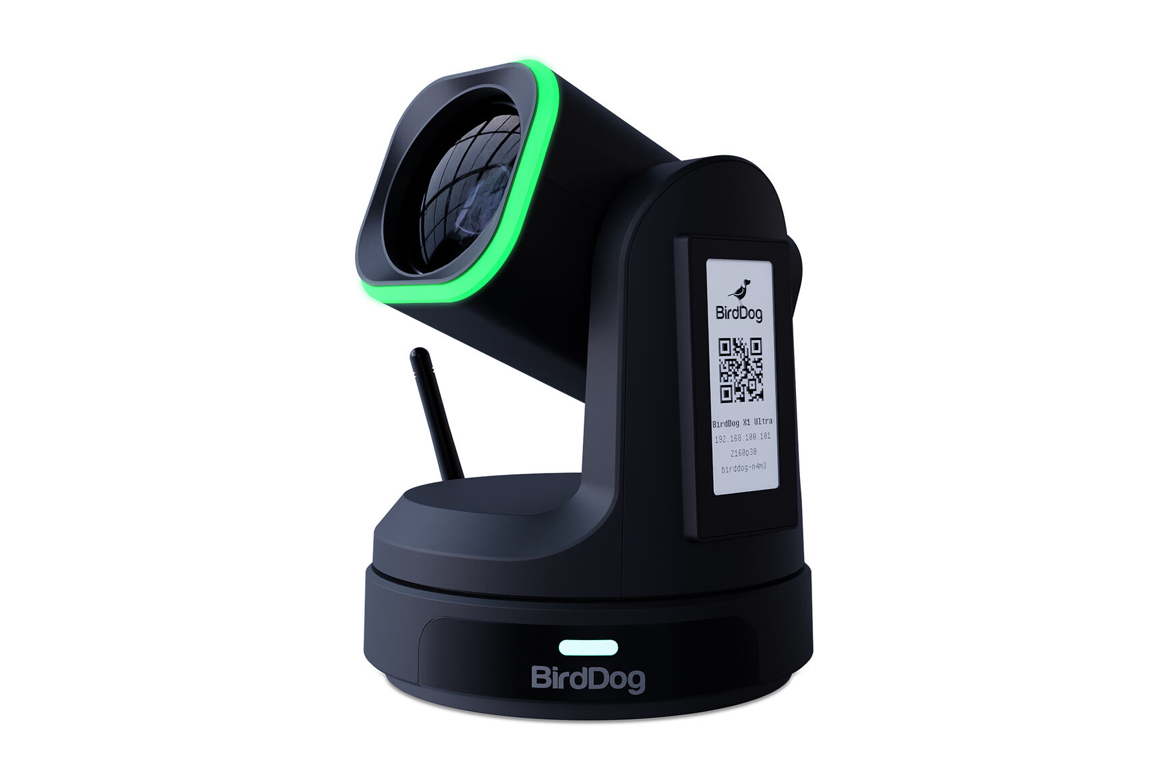

BirdDog X1 Ultra
BirdDog

X1 Ultra

THE WORLD'S FIRST WI-FI PRODUCTION PTZ.
The future of live production and live streaming is here.
Product Highlights
  • 12x Zoom & UHD 4K30 Resolution
  • AI Auto Framing

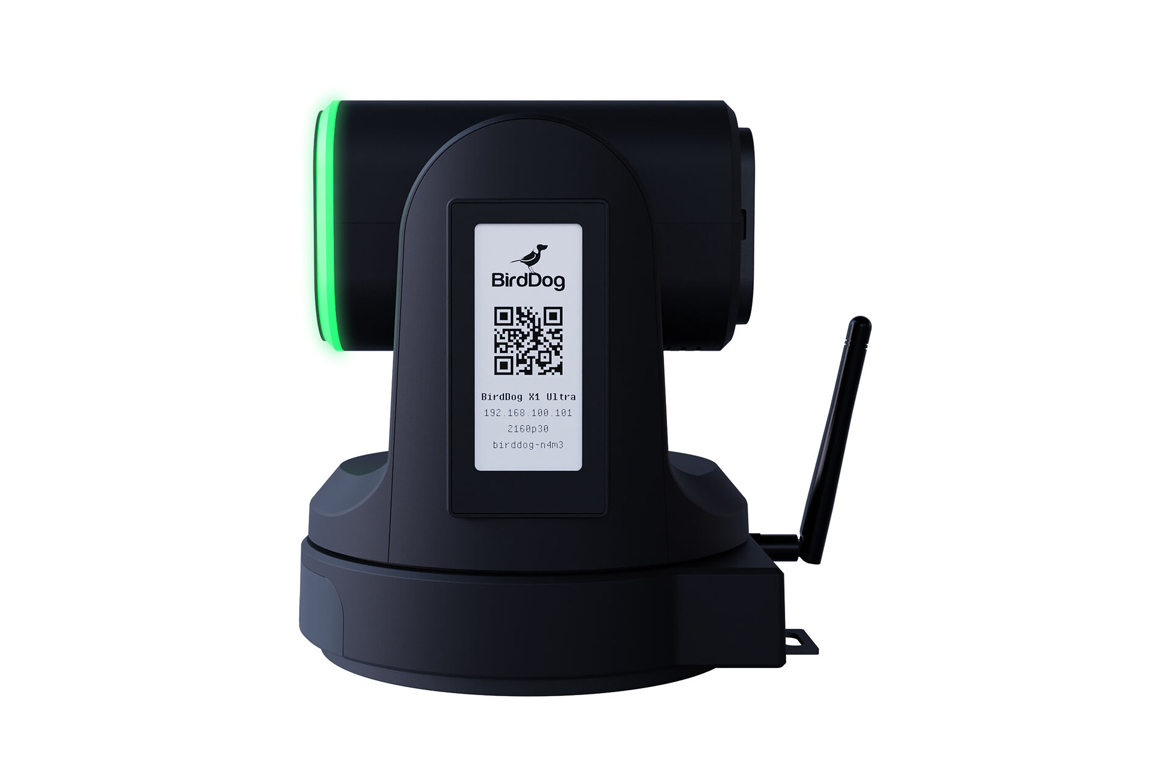

  • Integrated 2.93" E-Ink Display
  • Wi-Fi 5 & NDI|HX3 Support
  • HDMI & USB/UVC Outputs
  • Built-In Halo Tally
  • Color Matrix, API & Kelvin Control
  • PoE Support
  • Exceptional Low-Light Performance

  • Overview
  • Tech Specs

Capture UHD 4K30 resolution video and keep your subjects in frame with AI auto framing using this black X1 Ultra PTZ Camera with 12x Zoom from BirdDog. Boasting a powerful 12x zoom as well as color matrix, API, and Kelvin control, the versatile X1 Ultra offers exceptional low-light performance and support for Wi-Fi 5 and NDI|HX3.

Physical connectivity options include an HDMI output and a USB/UVC output with independent resolution for direct connection to Microsoft Teams, Zoom, and more. A built-in halo tally and a 2.93" E-Ink display augment the camera's broad functionality features, and PoE (Power over Ethernet) support allows you to power the camera using a single Ethernet cable and facilitating quick and easy setup with limited cable clutter.

Integrated NDI Decoder
The camera features an NDI|HX decoder designed specifically for confidence monitoring, return feeds, or teleprompter usage. All the connectivity is contained into a single cable, radically simplifying how you interface with your equipment. Less gear. Less hassle.

AI Tracking
Keep your subject in focus with AI tracking technology, intelligently following your subject's movements in real-time. Whether you're orchestrating a live event, capturing spontaneous moments in a hybrid environment, or hunting down sports action, AI tracking helps you get well framed.

Wi-Fi Connectivity
No need to use cables to capture every shot. On top of regular Ethernet with PoE, the camera boasts built-in Wi-Fi functionality. Easily capture shots from spots where it's hard to run a cable, seamlessly integrating into any environment.

NDI|HX2 & NDI|HX3 Integration
Achieve superior network performance via NDI|HX2 and NDI|HX3 integration. You get significantly reduced network impact and excellent image quality for a more user-friendly experience in more network environments.

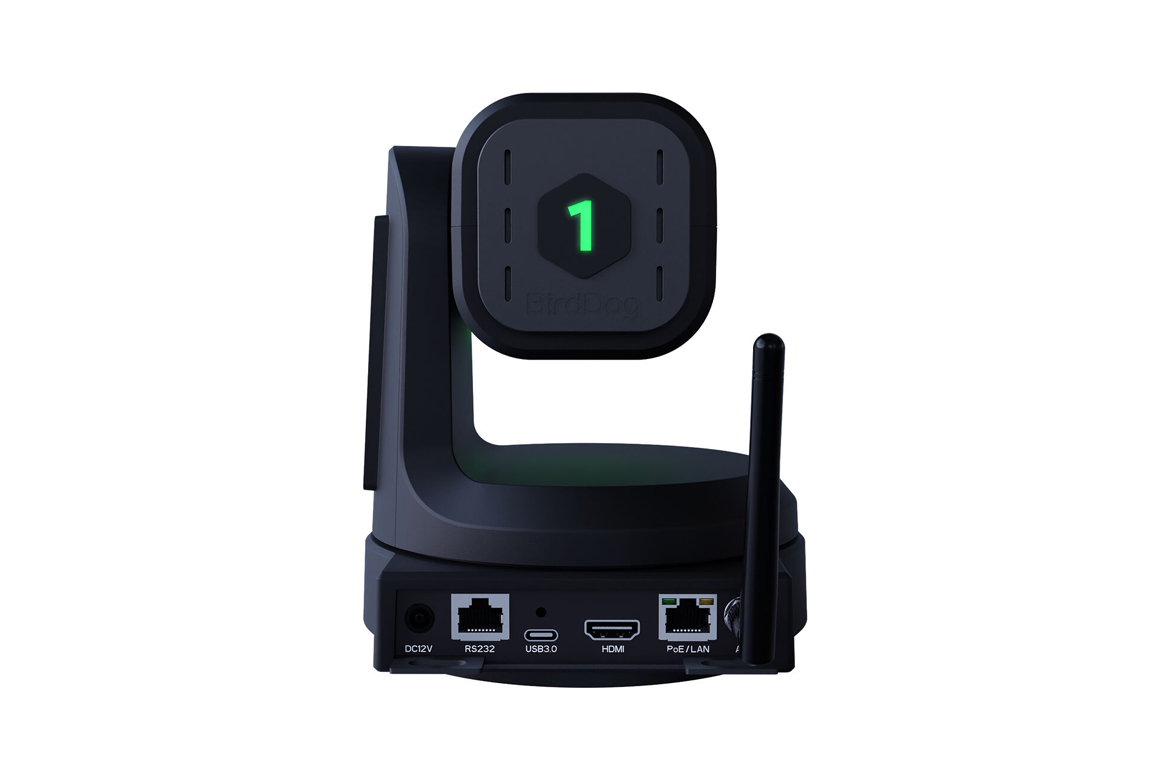

A visible and effective halo tally system is prominent with a large, daylight visible border, and an interchangeable, illuminated numbering system. Your cast and crew will always know where to look to keep you audience engaged and your look polished.

IMAGING
IMAGE SENSOR Sony 1/2.8” CMOS • ULTRA HD
LENS f=4.1mm - 49.2mm
OPTICAL ZOOM 12x
Video Format 2160p @ 30/29.97/25fps
1080p @ 30/29.97/25fps
720p @ 30/29.97/25fps
Horizontal angle of view 70.28º (W) - 6.57º (T)
Vertical angle of view 42.06º (W) - 3.76º (T)
Diagonal angle of view 78.36º (W) - 7.5º (T)
Aperture F1.8 ~ 2.68
Focus Auto, Manual
Exposure Auto, Shutter Priority, Iris Priority, Manual
Backlight Compensation Yes
Digital Noise Reduction 2D and 3D Noise Reduction
SNR >50dB
Effective Pixels 8.29 MP
MECHANICAL
Pan/Tilt Rotation ±±75°, -90°~+90°
Pan Control Speed 0.1 -80°/sec
Tilt Control Speed 0.1 -60°/sec
Preset Number 255 presets
I/O INTERFACE
Video Output Interfaces HDMI, USB-C UVC 1.1, Network
Video Compression Format H.264, H.265
Network Interfaces 100M adaptive Ethernet port; POE IEEE802.3af, Wi-Fi IEEE 802.11ac
Encoder Network Protocols NDI|HX2, NDI|HX3, SRT, RTSP, RTMP
HDMI Decoder Network Protocols NDI|HX2, NDI|HX3
Control Interfaces 10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS232 (input & output), RS485, TYPE-C(UVC1.1)
Control Protocols VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI
3rd Party Control Protocols Support for Q-sys, Crestron and BitFocus Companion modules is scheduled for August 2024
GENERAL PARAMETER
Input Voltage DC 12V, POE IEEE802.3af
Input Current 2.0A (Max.)
Power Consumption 13W (Max.)
Working Temperature -10℃ ~ +40℃
Working Humidity 20% ~ 80%

Dimension (W*H*D)
  • 171.6*192.6*171.6mm/ 260*217*197mm (before/ after packing)

Net and Gross Weight
  • 1.43kg/2.096kg (Net/Gross weight)
