Universal Audio Apollo x6 Heritage Edition

16 x 22 Thunderbolt 3 Audio Interface for Mac and Windows.
Product Highlights
  • A special edition of UA's acclaimed Apollo x6 interface — with a premium suite of 10 award-winning plug-in titles from Helios,® Fairchild,® Teletronix,® Pultec,® UA, and more — a $2,400 value
  • 16 x 22 Thunderbolt 3 audio interface with class-leading 24-bit/192 kHz conversion
  • Realtime UAD HEXA Core Processing for tracking through UAD plug-ins at near-zero latency, regardless of audio buffer size
  • 2 Unison-enabled mic/line preamps — track through fully authentic preamp emulations from Neve, API, SSL, Manley, Avalon, Helios, UA, and more
  • Produce with LUNA Recording System — a fully-integrated recording application made for Apollo (Mac only)
  • Compatible with Logic Pro, Pro Tools, Cubase, Ableton Live, and more
  • Surround monitor controller up to 5.1 format
  • UAD HEXA Core processing onboard for additional mixing horsepower for Pro Tools, Logic, Cubase, Live, and other major DAWs
  • Combine up to 4 Thunderbolt-equipped Apollos and 6 total UAD devices; backward-compatible with Thunderbolt 1 and 2 Macs via optional adapter
  • Selectable +24 dBu operation for easy compatibility with professional mixing consoles and tape machines
  • Convenient front panel monitoring functions including Alt Speakers, Talkback mic, and assignable Dim or Mono
  • Uncompromising UA analog design, superior components, and premium build quality
  • Also includes “Realtime Analog Classics Plus” UAD plug-in bundle featuring UA 610-B Tube Preamp, Legacy Pultec EQ, additional LA-2A and 1176 compressors, Marshall Plexi Classic, Ampeg SVT-VR Classic, and more
  • Free, industry-leading technical support — on the phone and online — from knowledgeable audio engineers

  • Overview
  • Tech Specs

Apollo x6 Heritage Edition has all the benefits of the acclaimed Apollo x6, including world-beating A/D and D/A conversion, HEXA Core UAD plug-in processing, Unison-enabled mic preamps, and full LUNA Recording System integration. And it goes a step further, with a software suite of 10 award-winning UAD plug-in titles, featuring Collections from Helios,® Fairchild,® Teletronix,® Pultec,® and UA.

A Special Edition featuring Iconic UAD Analog Collections Onboard
A hallmark feature of Apollo is its Realtime UAD Processing, letting you run the full library of UAD plug-ins at near-zero latency. Taking you a step further, Apollo x6 Heritage Edition gives you 10 premium plug-in titles worth over $2,400 — including the full suite of UA's Teletronix, 1176, and Fairchild compressors, Helios Type 69, V76, and UA 610 Unison mic preamps, all Pultec EQs, Oxide Tape Recorder, and Pure Plate Reverb.

These premium Heritage Edition titles are in addition to Apollo x6's included "Realtime Analog Classics Plus" bundle, giving you the most accurate library of classic analog emulations included with any professional audio interface.

Elite-Class A/D and D/A Conversion
With thousands of chart-topping songs and Grammy-winning albums under their belt, Apollo interfaces are no strangers to tracking stellar-sounding records. To improve on the previous generation Apollo interfaces’ class-leading audio conversion, UA engineers obsessively auditioned the latest A/D and D/A converters — ultimately pairing elite-class 24-bit/192 kHz converters with all-new analog circuitry for an ultra-pristine signal path.

Realtime UAD HEXA Core Processing
Apollo x6 Heritage Edition features HEXA Core processing, with six DSP chips and 50% more UAD plug-in processing power than previous Apollos. This lets you run more UAD plug-ins, whether you’re tracking in real time with channel strips from Neve, Manley, SSL, Avalon, Helios, or API, or running high UAD plug-in counts when mixing in your DAW.

Unison™ Technology — The Sound of Neve, API, Avalon & Manley Preamps
Perfect for electronic musicians and post production professionals who don’t require tons of mic inputs, Apollo x6 Heritage Edition features two Unison-enabled mic preamps, letting you track through exacting mic preamp emulations from Neve, API, Manley, SSL, Avalon, Helios, and Universal Audio.* A Universal Audio exclusive, Unison is a proprietary hardware-software integration that nails the tone of these sought-after tube and solid-state mic pres — including their input impedance, gain stage “sweet spots,” and component-level circuit behaviors.

LUNA Recording System — Deep Apollo Integration with a Fast, Natural Workflow
All Apollo X series interfaces work with all major DAWs, including Logic Pro, Ableton Live, Pro Tools, and more. But they become a fully integrated recording system with LUNA, a powerful recording application for Mac from Universal Audio. Bolstered by Accelerated Realtime Monitoring,™ LUNA lets you track and mix in an intuitive single-window workflow with unlimited track counts, with full AU support and access to exclusive LUNA Instruments and Extensions.

Surround Sound Monitoring and +24 dBu Operation
With comprehensive 5.1 surround monitoring support, Apollo x6 Heritage Edition is a boon for engineers and producers working on audio and music for video games, television, and the web. In addition, Apollo x6 Heritage Edition offers selectable +24 dBu operation for out-of-the-box compatibility with professional mixing consoles and other high-end pro audio equipment.

Build a Networked Studio System Over Thunderbolt

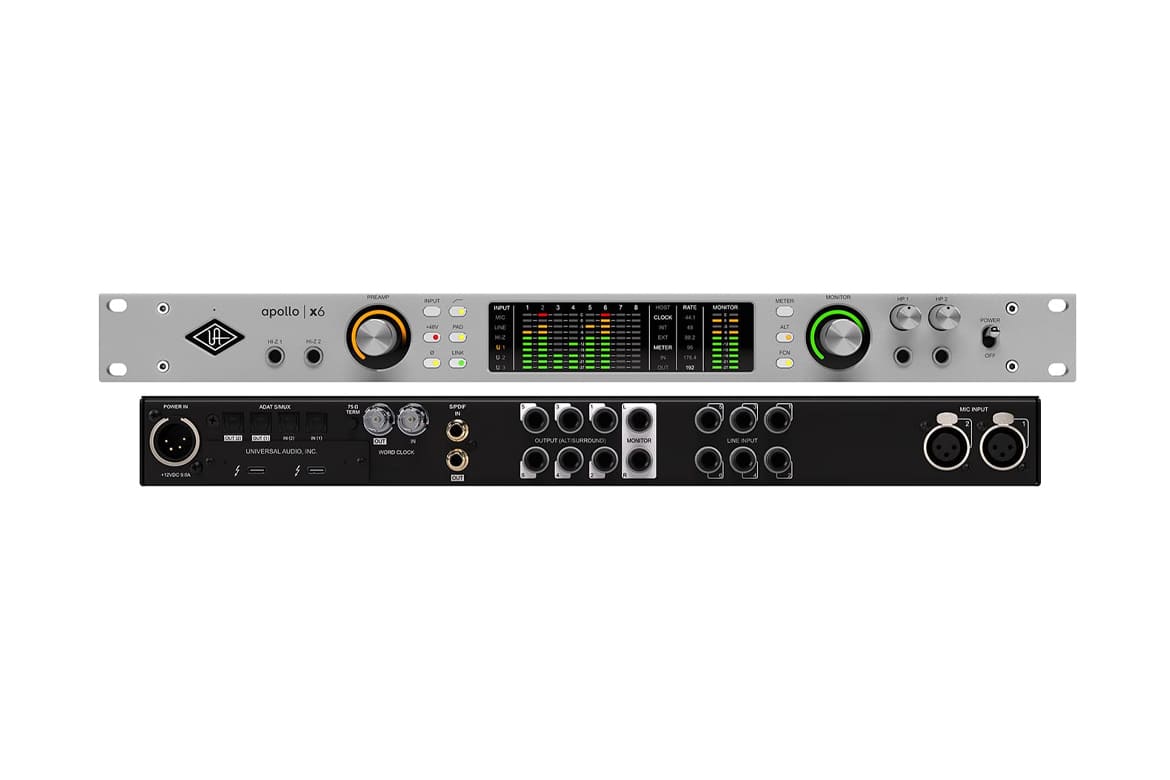

Apollo x6 Heritage Edition offers 16 x 22 simultaneous inputs/outputs (6 x 12 analog I/O) and two built-in Thunderbolt 3 ports, which are backwards-compatible with Thunderbolt 1 and 2 Macs via adapter (sold separately). This allows users of any Thunderbolt-equipped Apollo desktop or rackmount audio interfaces to easily combine up to four Apollos and six total UAD-2 devices.

Connectivity
Host Connection 1 x USB Type-C (Thunderbolt 3)
Analog I/O 2 x 1/4" (6.3 mm) TS Hi-Z Input
6 x 1/4" (6.3 mm) TRS Line Input
2 x XLR 3-Pin Input
2 x 1/4" (6.3 mm) TRS Headphone Output
2 x 1/4" (6.3 mm) TRS Monitor Output
6 x 1/4" (6.3 mm) TRS Line Output
Digital I/O 1 x BNC (Word Clock) Input
1 x BNC (Word Clock) Output
1 x RCA Coaxial / S/PDIF Input
1 x RCA Coaxial / S/PDIF Output
2 x TOSLINK / ADAT, S/MUX Input
2 x TOSLINK / ADAT, S/MUX Output
MIDI I/O None
Performance
Frequency Response Headphone Outputs:
20 Hz to 20 kHz ±0.05 dB
Hi-Z Inputs:
20 Hz to 20 kHz ±0.04 dB
Line Inputs:
20 Hz to 20 kHz ±0.05 dB
Line Outputs:
20 Hz to 20 kHz ±0.07 dB
Mic Inputs:
20 Hz to 20 kHz ±0.05 dB
Monitor Outputs:
20 Hz to 20 kHz ±0.06 dB
Gain Range Inputs:
+10 to +65 dB
Max Input Level Hi-Z Inputs:
+12.4 dBu
Line Inputs:
+24 dBu
Mic Inputs:
+26 dBu (Pad On)
Max Output Level Line Outputs:
+24 dBu
Monitor Outputs:
+24 dBu
Headphone Output Power 150 mW into 300 Ohms
Dynamic Range Outputs:
125 dBA
Hi-Z Inputs:
121 dBA
Line Inputs:
123 dBA
Line Outputs:
27 dBA
Mic Inputs:
122 dBA
Monitor Outputs:
129 dBA
Impedance Hi-Z Inputs:
1 MOhm
Line Inputs:
10 kOhms
Line Outputs:
100 Ohms
Mic Inputs:
5.5 kOhms
Monitor Outputs:
100 Ohms
Word Clock:
75 Ohms
THD+N Headphone Outputs:
-102 dB (0.0008%)
Hi-Z Inputs:
-111 dB (0.00028%)
Line Inputs:
-113 dB (0.00022%)
Line Outputs:
-119 dB (0.00011%)
Mic Inputs:
-114 dB (0.0002%)
Monitor Outputs:
-118 dB (0.00012%)
Digital Audio
Sample Rates Up to 192 kHz
Bit Depth 24-Bit (AD/DA Conversion)
Latency 1.1 ms at 96 kHz (Input to Output)
Compatibility
OS Compatibility macOS 10.10
macOS 10.11
macOS 10.12
macOS 10.13
Windows 10
Processor Requirement Intel Core i7
Storage Requirements 6 GB
Required Hardware Available Thunderbolt 3 Port
Thunderbolt Cable (Not Included)
Internet Connection Required for Registration and Software/Driver Download
Power
AC Input Power 100 to 240 VAC at 50/60 Hz
AC/DC Power Adapter 12 VDC at 6 A (Included)
Power Consumption 30 W (Typical)
72 W (Maximum)
General
Operating Temperature 32 to 104°F / 0 to 40°C
Physical
Dimensions 19 x 1.8 x 13.5" / 48.3 x 4.5 x 34.3 cm
Weight 9.0 lb / 4.1 kg

Included in Apollo "Heritage Edition" Bundle
  • UA 1176 Classic Limiter Collection
  • Teletronix LA-2A Classic Leveler Collection
  • Pultec Passive EQ Collection
  • Fairchild Tube Limiter Collection
  • Teletronix LA‑3A Audio Leveler
  • UA 610 Tube Preamp & EQ Collection
  • Helios Type 69 Preamp & EQ Collection
  • V76 Preamplifier
  • Oxide Tape Recorder
  • Pure Plate Reverb

Included in the Realtime Analog Classics Plus Bundle
  • UA 610-B Tube Preamp & EQ
  • Marshall Plexi Classic Guitar Amp
  • Ampeg SVT-VR Classic Bass Amp
  • UA 1176LN Limiting Amplifier (Legacy)
  • UA 1176SE Limiting Amplifier (Legacy)
  • Pultec EQP-1A EQ (Legacy)
  • Pultec Pro EQ (Legacy)
  • Teletronix LA-2A Leveling Amplifier (Legacy)
  • Fairchild 670 Compressor (Legacy)
  • Precision Enhancer Hz
  • Raw Distortion
  • Precision Channel Strip (Precision Mix Rack Collection)
  • Precision Reflection Engine (Precision Mix Rack Collection)
  • Precision Delay Mod (Precision Mix Rack Collection)
  • Precision Delay Mod L (Precision Mix Rack Collection)
  • RealVerb Pro Custom Room Modeler
