MOTU UltraLite-mk3 Hybrid

Product Highlights
  • Hybrid FireWire & USB 2.0 Connectivity
  • On Board DSP Processor
  • Classic Reverb, LA-2A Compressors, EQ
  • 10 Inputs, 14 Outputs
  • Mic, Line, Guitar, & Instrument Inputs
  • Generates & Slaves to SMPTE Time Code
  • Windows & Mac Compatible

  • Overview
  • Tech Specs

Hybrid FireWire/USB 2.0 Audio & MIDI Interface

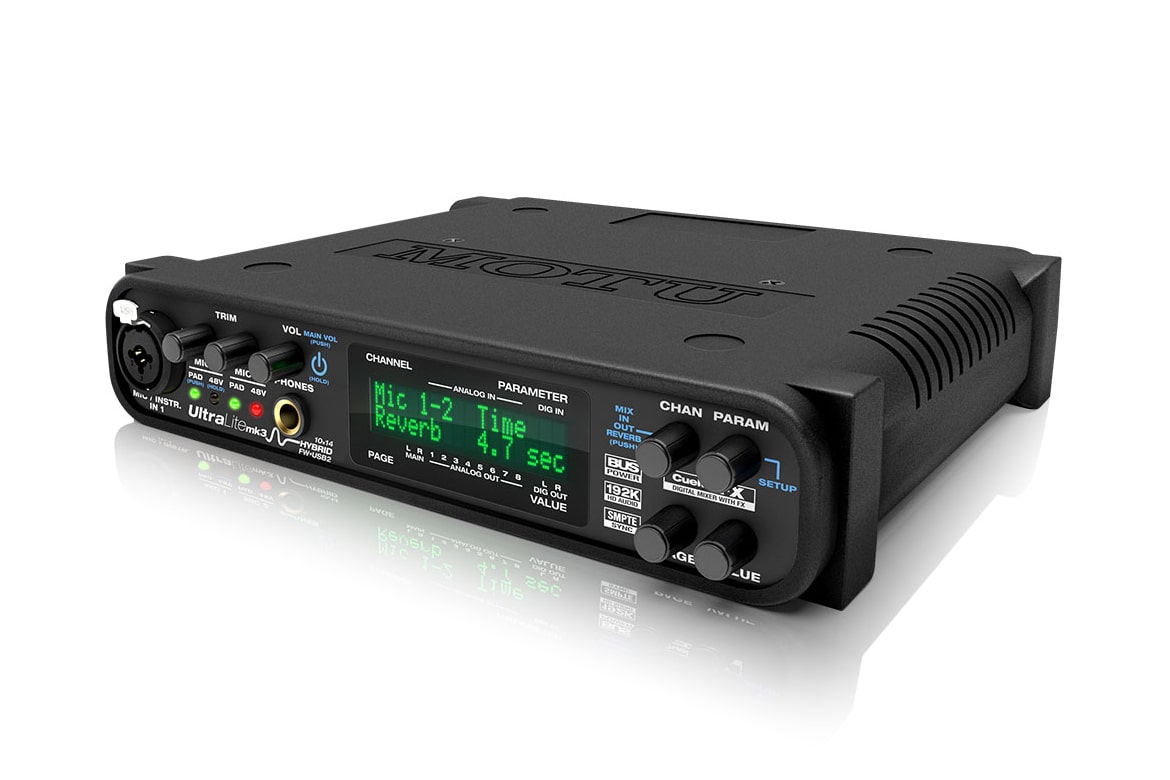

The UltraLite-mk3 Hybrid from MOTU is a hybrid FireWire and USB 2.0 audio and MIDI interface for Windows and Mac computers with built-in DSP processing that also offers powerful stand-alone mixer functionality. It connects to both Mac and Windows computers through either a FireWire or USB port and provides high-resolution audio inputs and outputs for the connected computer. The option of computer connections provides a welcome level of future-proof usage.

Built-in DSP processing gives you the ability to add reverbs, compressors, and EQ to all input and output channels of the UltraLite-mk3, without taxing the host computer's processors. Additionally, when the UltraLite-mk3 is configured for stand-alone use, the DSP processing can be used without being attached to a computer. You can even call up the effects and tweak their parameters to your liking by utilizing the LCD display, all without a computer. Among the included effects are a vintage LA-2A compression emulation, and a range of reverbs and EQs.

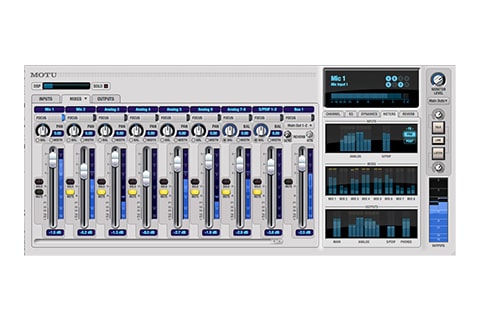

A rich assortment of inputs and outputs are provided on the UltraLite-mk3, and controlling their gain settings is easy. You can make fine adjustments to the microphone preamps, as well as the input and output trims of all of the 1/4" jacks. Mac and Windows compatible CueMix FX software is included which enables you to create and save elaborate mixing and routing setups for the UltraLite-mk3. You can even slave to external SMPTE time code source through any of its quarter-inch inputs or outputs. MOTU SMPTE Console software is included to generate, regenerate, or slave other devices to your computer.

Converters 24-bit
Sample Rates 44.1, 48, 88.2, 96, 176.4 and 192kHz
Analog In 2 x Neutrik combo/XLR
6 x 1/4" TRS phone (balanced/unbalanced)
Analog Outputs 10 x 1/4" TRS phone
1 x 1/4" TRS phone Headphone
Digital Input Connectors 1 x RCA coaxial S/PDIF (stereo)
1 x FireWire (shared with output)
1 x USB 2.0 (shared with output)
Digital Output Connectors 1 x RCA coaxial S/PDIF (stereo)
1 x FireWire (shared with output)
1 x USB 2.0 (shared with output)
MIDI In/Out 2 x 5-pin DIN (16-channels I/O)
Sync In/Out S/PDIF
Directly resolves to or generates time code via any quarter-inch input or output
Headphone Output Yes, 1/4" Stereo with Volume Control
Phantom Power Yes, +48V
Dimensions Not Specified by Manufacturer
Weight Not Specified by Manufacturer
Specialties On-board DSP effects
FireWire & USB 2.0 connectivity

Mac System Requirements
  • A Mac with an Intel processor
  • 1 GB RAM; 2 GB or more recommended
  • Mac OS X version 10.6 or later required
  • Available Thunderbolt or high-speed USB 2.0 (or 3.0) port
  • USB cable included; Thunderbolt cable purchased separately
  • A large hard drive (preferably at least 250 GB)

Windows System Requirements
  • 1 GHz Pentium-based PC compatible or faster
  • 1 GB RAM; 2 GB or more recommended
  • Windows 10, 8, 7 or Vista, 32- or 64-bit; Vista SP 2 or later required
  • Available Thunderbolt or high-speed USB 2.0 (or 3.0) port
  • USB cable included; Thunderbolt cable purchased separately
  • A large hard drive (preferably at least 250 GB)

Operating Systems
  • Mac OS X version 10.6 or later
  • Windows 10, 8, 7 or Vista (SP2 or later is required)

64-bit operation
  • Available for Mac OS X 10.6 or later
  • Available for 64-bit versions of Windows 10, 8, 7 or Vista
  • Requires a 64-bit CPU
