Marantz Professional Turret

Product Highlights
  • All-in-one, freestanding broadcasting system
  • Full HD webcam with H.264 video compression
  • High-quality USB condenser microphone (48kHz/16-bit) with pop filter
  • Dimmable LED light ring / daylight-balanced with cool, warm and diffusion filter accessories
  • USB-C output to computer for high-speed, low-latency
  • Internal USB hub
  • Headphone amplifier

  • Overview
  • Tech Specs

Broadcaster Video-Streaming System

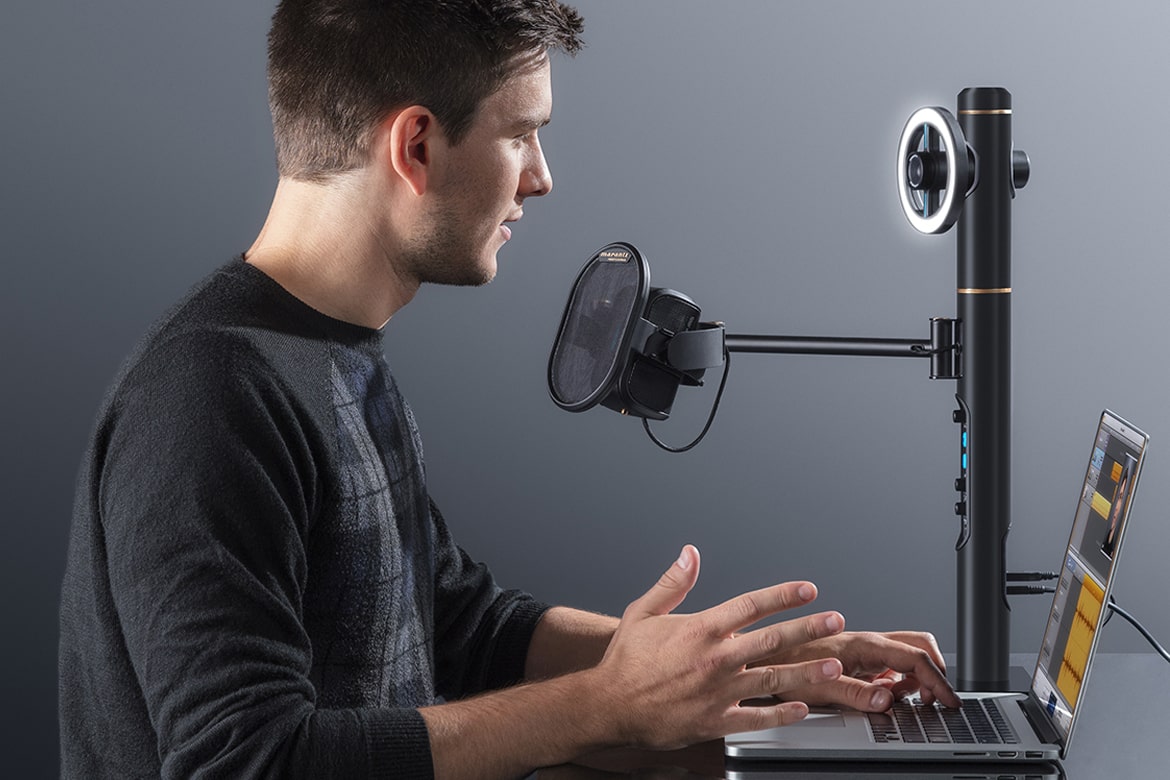

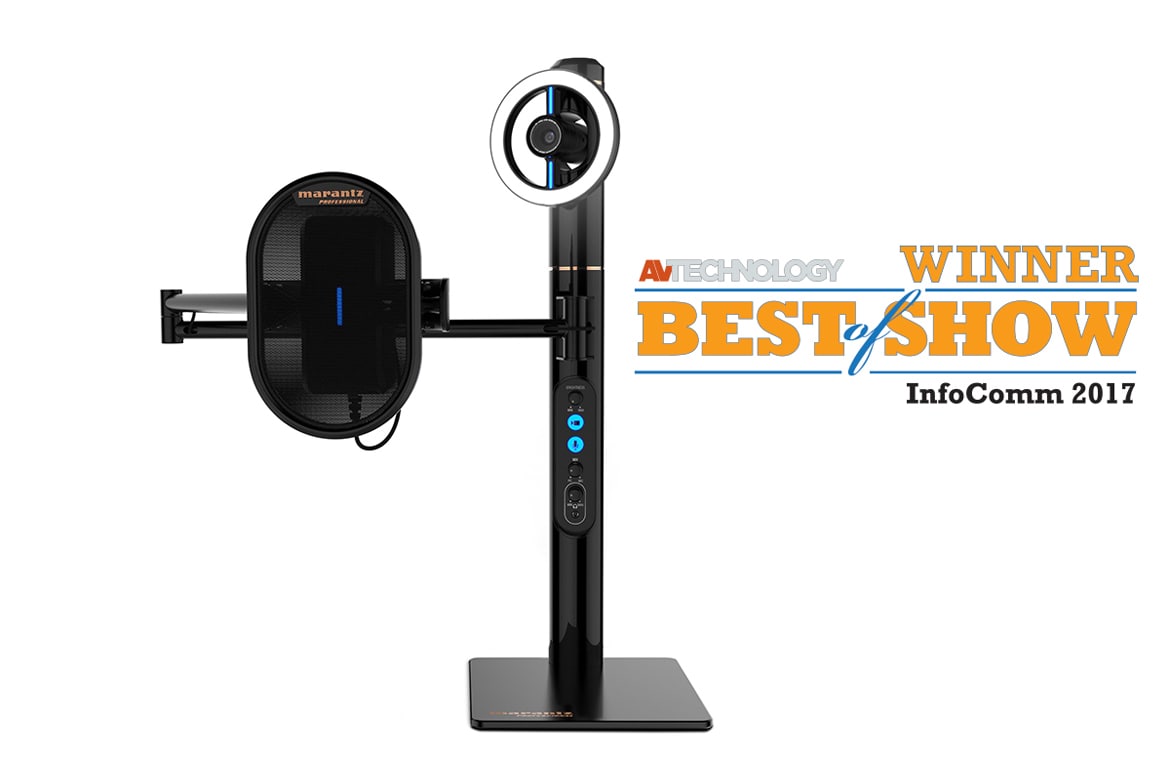

The Turret Broadcast Video Streaming System from Marantz Professional combines an HD video camera, microphone, ring light, and headphone amplifier with a control tower/stand. Together, these components provide an all-in-one broadcast tool expressly designed for streaming and podcasting. The Turret System's compact, portable size suits it to both desktop and location use with the centrally located camera, microphone, and light controls placed within easy reach on the control tower.

The Turret camera features full HD recording at 1080p, automatic low-light correction, a 78° wide-angle lens, auto-focusing, and both Windows and Mac compatibility. H.264 video compression is built-in for easy streaming, and the Turret includes an internal USB hub; a high-speed USB-C output minimizes signal latency.

On the audio side, the Turret features a high-performance condenser mic, gain control with an integrated preamp, pop filter, and direct monitoring while recording. To add music or an effects channel, a mix control enables you to blend the mic's audio with a USB audio input. The preamp outputs a pristine signal to your headphones, enabling you to hear your audio output as your audience does.

The LED ring light surrounds the Turret camera, providing even illumination of the streamer/podcaster. This dimmable, daylight-balanced LED fixture comes with cool white, and warm filters for matching to the light at your location.

Camera
Diagonal Field of View (FOV) 78°
Optical Resolution 2MP native
Recording Full HD 1080p video (up to 1920 x 1080 pixels) recording
Frame Rates 30 fps/1080p, 30 fps/720p
Video Compression H.264 video compression, M-JPEG compatible
Compatible with Windows® 7, 8, 10 & Mac OS 10.6 or later
USB Microphone
Electret condenser capsule 14mm diameter
Sensitivity -34dB ± 2dB (0db = 1V/Pa @ 1KHZ)
Output Impedance 100 Ohms ±30% (at 1 kHz)
Polar pattern Cardioid
Pad Switch 0 dB / -10 dB
Sample rate 32 kHz / 44.1 kHz / 48 kHz @16-bit
USB 2.0 Class Compliant
Frequency response 150 Hz - 15 kHz
Equivalent noise level < 12 dbA (A-weighted)
Self noise < 12dBA
Headphone Amplifier
Frequency Response 20 Hz – 20 kHz
Output power 130mW
Level control
3.5mm stereo output
Mix control to mix microphone audio with USB audio input
LED Light Ring
4" dimmable LED light ring
5600 K
(30) wide-angle white LEDs @ 5600K
USB
USB 1 & 2 (2) Type A USB 3.0, 0.75A total available current between two ports for powering devices
To PC (1) USB-C connector / USB 3.0 connection
USB Audio In Class 2 compliant speaker device for audio to be monitored in headphone output – set by user in the compute
Microphone Auxiliary Output
Fixed line-level output on 3.5mm TRS jack
Dimensions
With Arm fully in 16.7" (424mm) Width including base (max)
With Arm fully out 33.9" (860mm) Width including base (max)
Base Dimensions (width x length) 6.85" x 8.04" (174mm x 204mm)
Height with Extension 19.6" (498mm)
Height without Extension 17.7" (449mm)
Weight 7.7 lbs (3.5 kg)
Power
AC-DC Power Supply
100 ~ 240 VAC compatible
12 VDC @ 1 Amp output

Dimensions
  • With Arm fully in: 16.7" (424mm) Width including base (max)
  • With Arm fully out: 33.9" (860mm) Width including base (max)
  • Base Dimensions (width x length): 6.85" x 8.04" (174mm x 204mm)
  • Height with Extension: 19.6" (498mm)
  • Height without Extension: 17.7" (449mm)
  • Weight: 7.7 lbs (3.5 kg)
