M-Audio BX5 D3
M-Audio

BX5 D3

Product Highlights
  • Bi-amplified design with 100 watts (60 LF, 40 HF) for powerful, accurate sound
  • 5” Kevlar low-frequency driver with high-temp voice coil and damped rubber surround
  • 1” natural silk dome tweeter delivers superb transient details
  • New computer-optimized tweeter waveguide for precise imaging
  • Acoustic Space Control to fine-tune low-end response to your room
  • Optimized rear port for extended low-frequency response
  • XLR balanced and 1/4” balanced/unbalanced inputs for connecting audio interfaces, mixers, synthesizers DJ gear, and more
  • Volume control enables you to dial in the perfect monitor playback level
  • Ultra-wide range 52-35kHz frequency response covers full musical spectrum
  • Front panel LED shines brightly when speaker is positioned at ideal monitor angle

  • Overview
  • Tech Specs

Dual Speaker & Subwoofer System

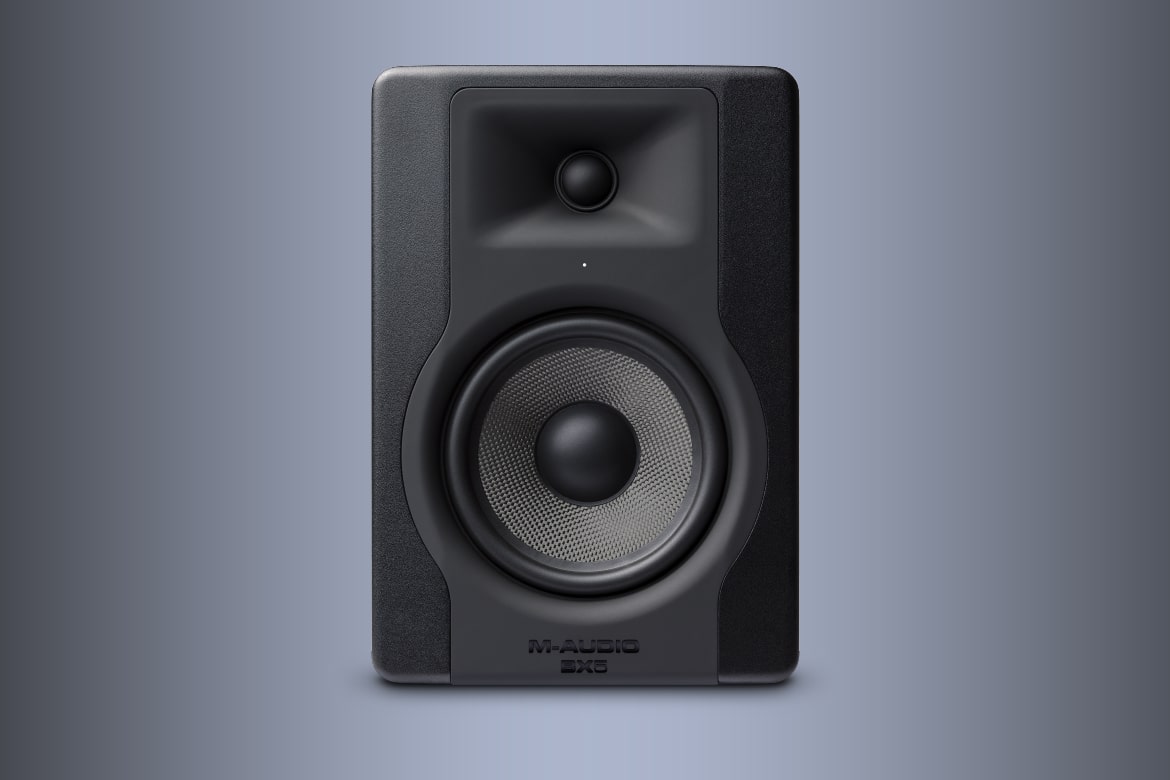

The BX5 D3 from M-Audio is a 2-way, 100W powered studio monitor designed to offer a wide frequency response and easy configuration for mixers, DJs, producers, and recordists in small control rooms, personal studios, and mobile rigs. The monitor produces a frequency response of 52 Hz to 35 kHz, thanks to two Class A/B amplifiers feeding a 5” Kevlar woofer and 1” silk dome tweeter.

A rear-mounted bass port delivers extended bass response, while the tweeter’s custom waveguide yields a wide sweet spot and minimized high-frequency scatter. Volume and low-frequency controls are provided so you can tune the monitor to cooperate with the sound of the room. Place the monitor on the supplied acoustic foam pad to decouple it from your table or stands, which aids in reducing unwanted bass vibrations.

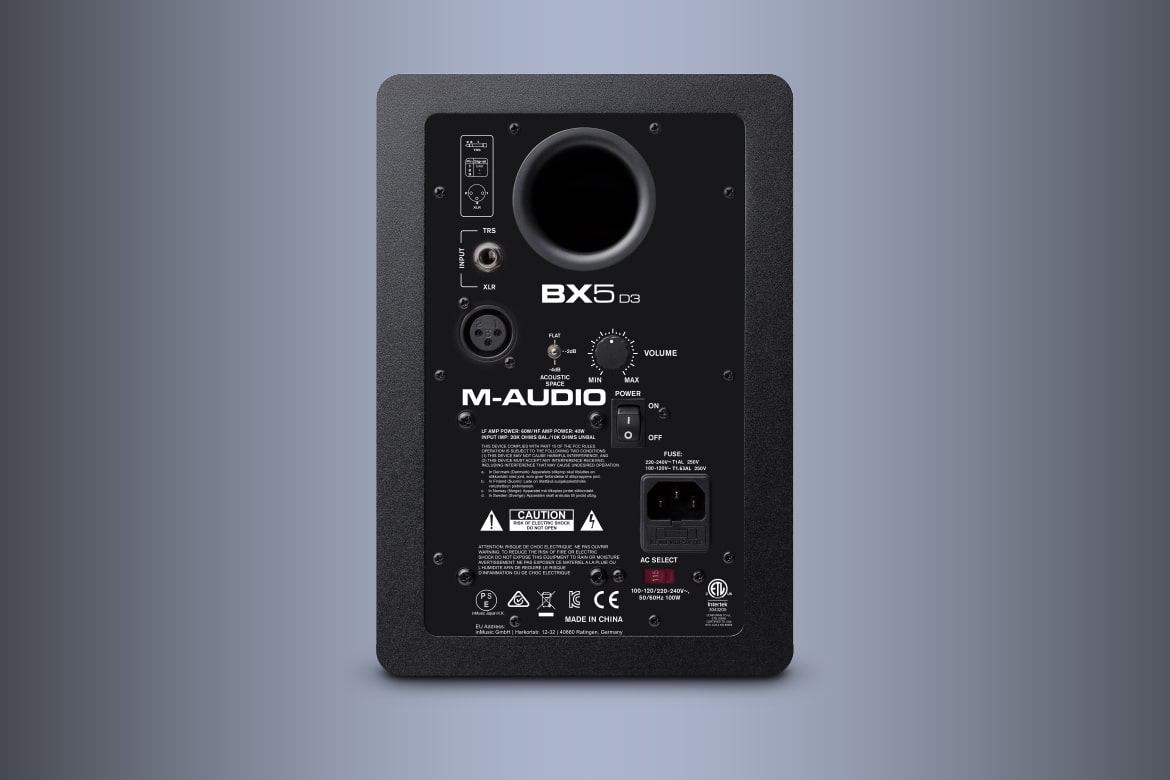

The BX5 D3 can interface with a variety of equipment, via balanced XLR and balanced/unbalanced 1/4” TRS input jacks. Setup is simple, due to the front-mounted LED, which appears brighter when you are at the ideal angle.

Type 2-way near-field studio reference monitors
Low Freq. Driver 5 inch (127mm) Kevlar curved cone with high temperature voice coil and damped rubber surround. Magnetically shielded
High Freq. Driver 1 inch (25mm) magnetically shielded natural silk dome
Frequency Response 52Hz – 35kHz
Crossover Frequency 2.0kHz
Low Freq. Amplifier Power 65W
High Freq. Amplifier Power 55W
Input Sensitivity 85mV pink noise input produces 96dBA output SPL at 1
Input Connectors 1x XLR balanced input connector
1x TRS balanced/unbalanced input connector
Input Impedance 10kΩ balanced, 20kΩ unbalanced
Polarity Positive signal at + input produce outward LF cone displacement
ProtectionL RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external mains fuse

General Specs
  • Power Requirements
    Factory-programmed for 115V ~50/60Hz, 230V ~50/60Hz, or 100V ~50/60Hz
  • Cabinet
    Vinyl-laminated high-acoustic-efficiency MDF
  • Dimension (height x width x depth)
    10in. x 6.9in. x 7.8in
    254mm x 176mm x 197mm
  • Weight (without packing)
    12.3 lbs., 5.6kg
