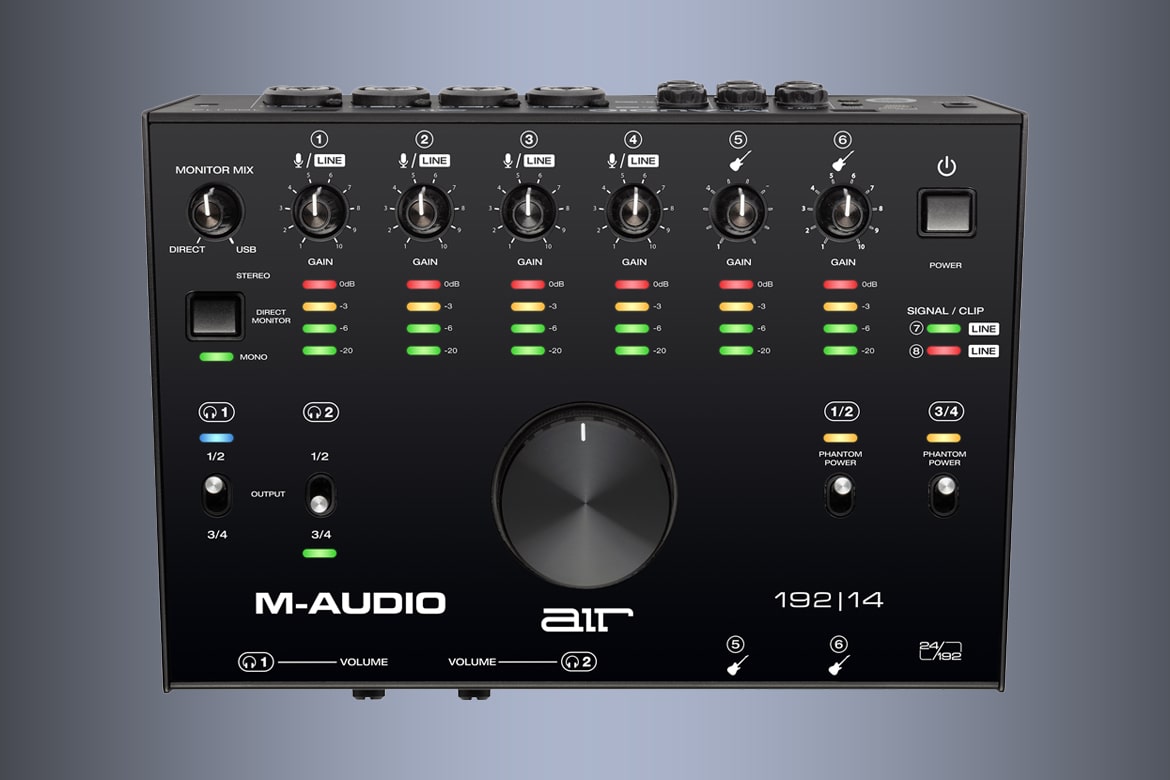

AIR 192|14
8-In/4-Out 24/192 USB Audio Interface
Product Highlights
- 24-bit/192kHz resolution for professional recording and monitoring
- Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
- Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
- VU LED meters for dialing in the perfect level

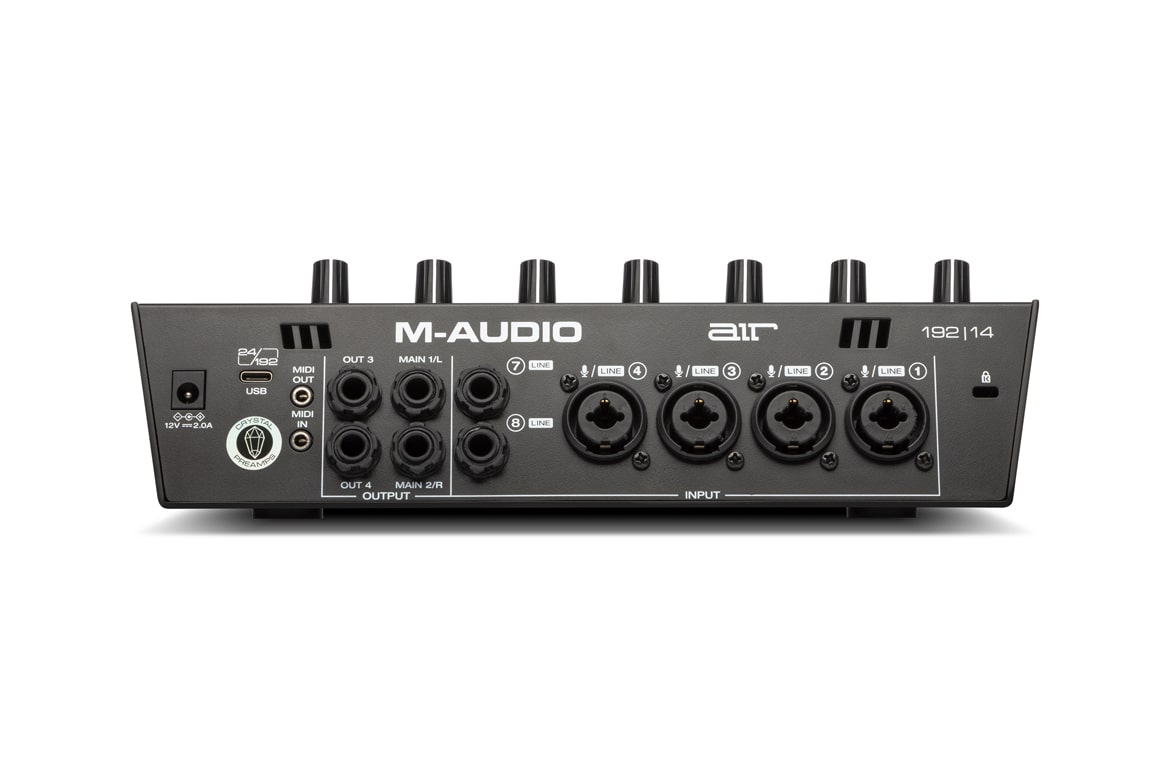

- (4) XLR+¼" TRS combo inputs, (2) ¼” instrument inputs and (2) ¼” line inputs
- MIDI input/output for connecting virtually any external MIDI gear
- Stereo ¼” with direct mono/stereo switch; (2) ¼” assignable auxiliary outs
- (2) ¼” headphone outputs with independent source and level controls
- Rugged metal chassis; large central control for easy volume adjustment
- USB/Direct knob for balancing between the input signal and the computer signal
- *Round trip latency is dependent on buffer settings, and computer hardware
- Overview
- Tech Specs
Conquer any recording session with professional studio quality and features!

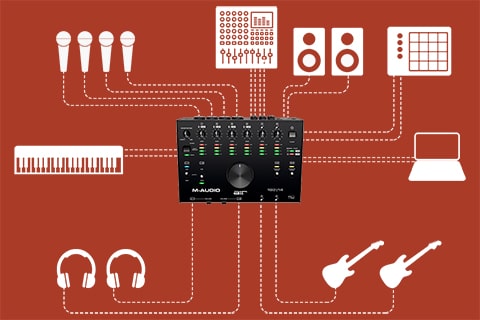

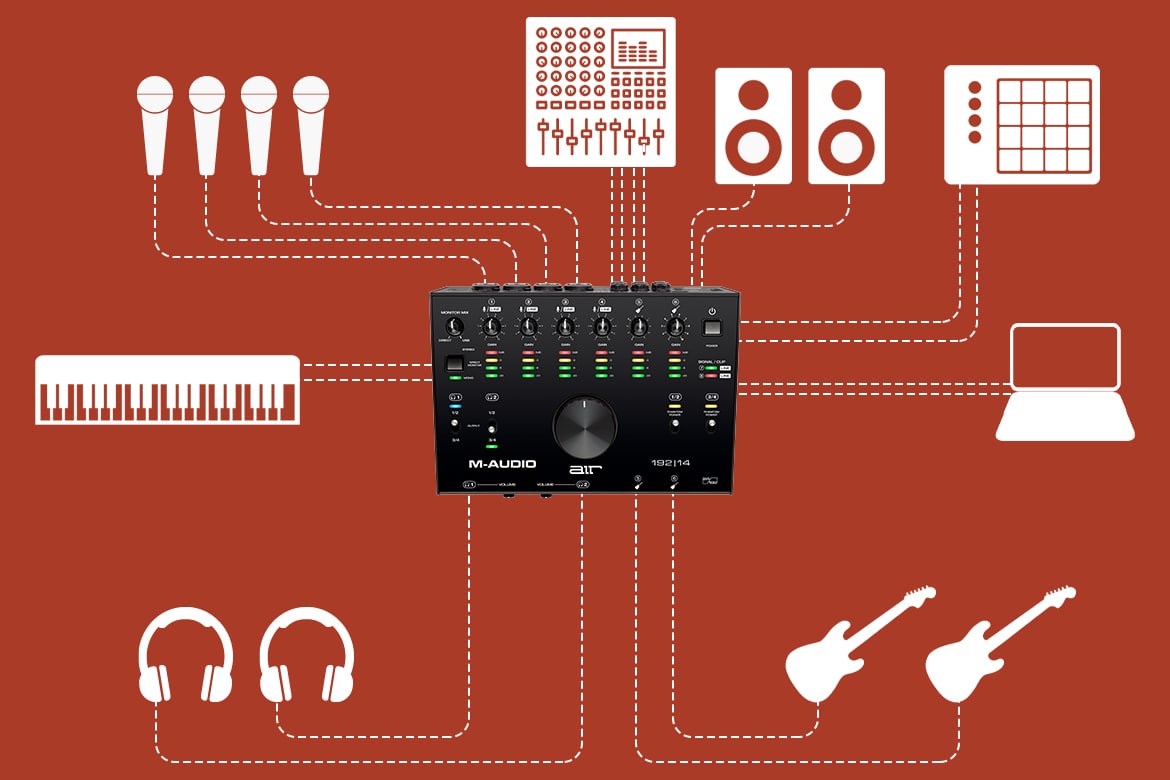

The M-Audio AIR 192|14 is an 8-in 4-out feature-packed USB audio/MIDI interface that provides all of the connections and software you need to easily create professional 24-bit/192kHz studio-quality recordings. The AIR 192|14 features (4) XLR+¼” TRS combo inputs, (2) ¼” line inputs and (2) ¼” instrument inputs that have a specially designed gain and impedance stage to provide the most accurate representation of your guitar or bass when plugged directly into the interface. There is also MIDI input and output connections so you can connect any external midi gear that you may have such as external sequencers, drum machines and controllers.
Four onboard Crystal preamps
The AIR 192|14's four low-noise Crystal preamps build a solid foundation for any style recording. Clean and uncolored, M-Audio's Crystal preamps are a blank slate for your creative mix decisions down the road.
Latest-gen A/D converters
High headroom and low distortion are yours at every stage of the recording process, thanks to the AIR 192|14's current-gen A/D converters.

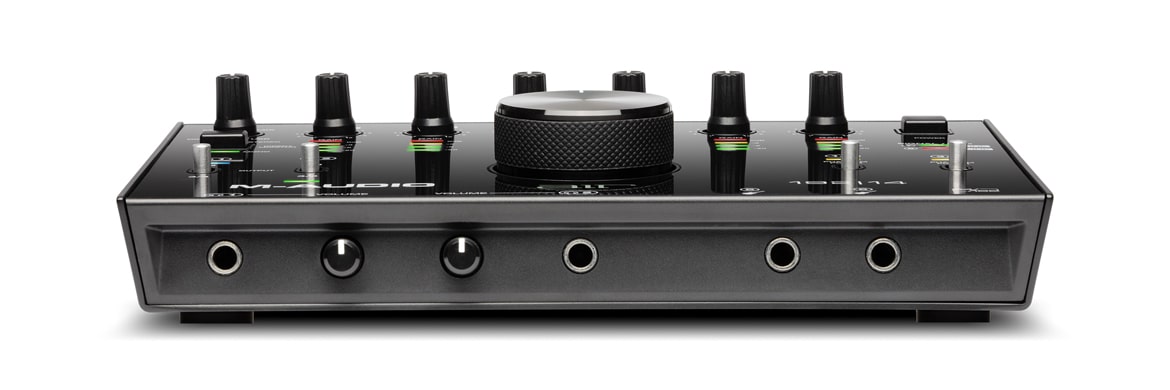

Direct inputs for guitar and bass
Twin front-mounted 1/4" instrument inputs equip the M-Audio AIR 192|14 for singer/songwriters to full ensembles. The included Eleven Lite FX suite gives you several virtual amp, cab, and stomp options to choose from, so you can leave your amp and pedalboard behind.
MIDI I/O for outboard gear
Take advantage of the included AIR virtual instrument suites when you pair your MIDI-equipped controller with the AIR 192|14. Two 5-pin MIDI to 1/8" adapters are included.
Rugged tabletop form factor

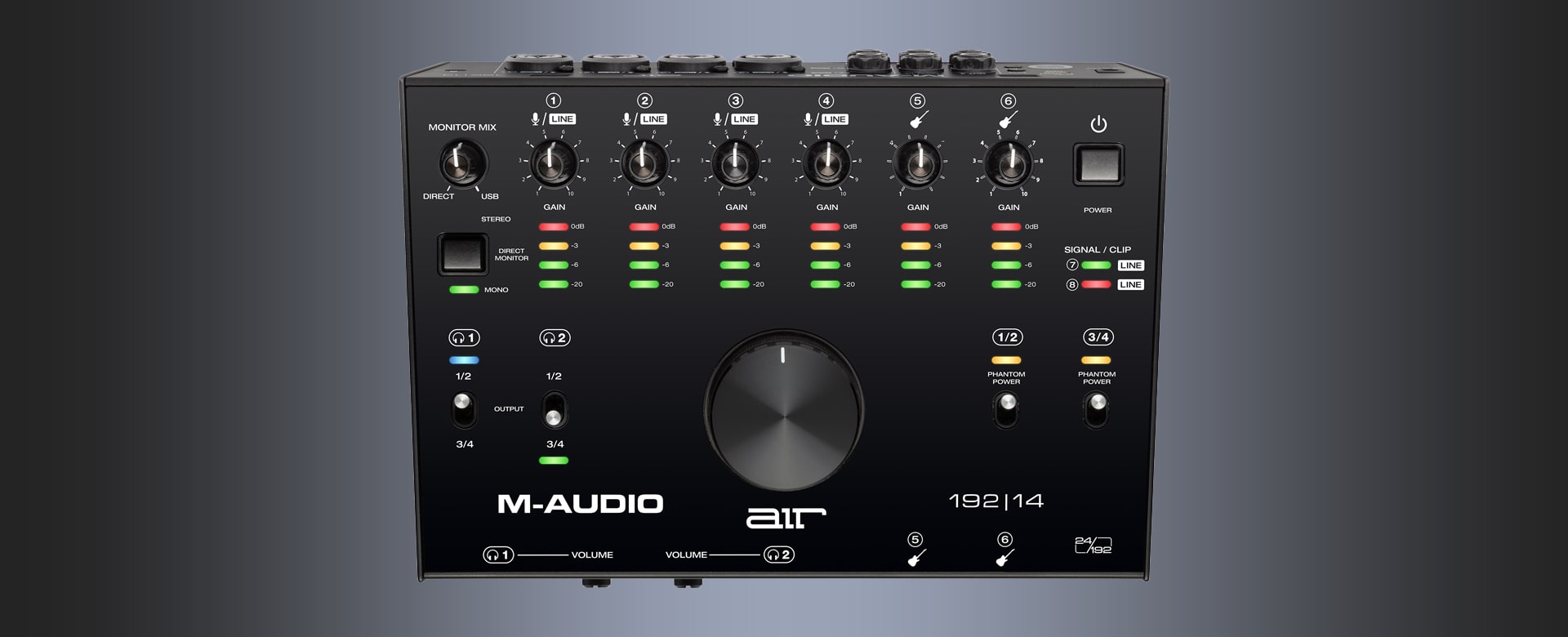

The M-Audio AIR 192|14's desk-friendly form factor puts all essential controls right at your fingertips, with an ergonomic tilt that improves visibility for desktop and remote use. A feature we at Sweetwater have enjoyed in all recent AIR interfaces is the large central volume knob, which is unmistakable and easy to access for setting desired monitoring levels. The all-metal chassis feels great underhand and is sure to hold up to location recording.
High-speed USB-C
USB-C protocol (also compatible with USB 2.0) gives the AIR 192|14 fast round-trip speeds — as low as 2.59ms — to minimize latency when you're tracking and monitoring.
| Mic Inputs 1-4 (balanced XLR) | |
| Frequency Response | 20 Hz – 20 kHz (+/-0.2 dB) |
| Dynamic Range | 113 dB (A-weighted) |
| THD+N | 0.003% |
| Preamp EIN | -137 dBu (40 Ω source, A-weighted) -129 dBu (150 Ω source, unweighted) |
| Max Input Level | +14 dBu |
| Gain Range | 62dB |
| Line Inputs 1-4 (balanced 1/4" [6.35 mm] TRS) | |
| Frequency Response | 20 Hz – 20 kHz (+/-0.1 dB) |
| Dynamic Range | 113 dB (A-weighted) |
| THD+N | 0.001% (1 kHz, +4 dBu, -1 dBFS) |
| Max Input Level | +30 dBu |
| Gain Range | 61 dB |
| Inst Inputs 5-6 (unbalanced 1/4" [6.35 mm] TS) | |
| Frequency Response | 20 Hz – 20 kHz (+/-0.1 dB) |
| Dynamic Range | 110 dB (A-weighted) |
| THD+N | 0.001% (1 kHz, +4 dBu, -1 dBFS) |
| Max Input Level | +16 dBu |
| Input Impedance | ~1 MΩ |
| Gain Range | 59 dB |
| Fixed Line Inputs 7–8 (balanced 1/4" TRS) | |
| Dynamic Range | 113 dB (A-weighted) |
| THD+N | 0.001% (1 kHz, +4 dBu, -1 dBFS) |
| Frequency Response | 20 Hz – 20 kHz (+/-0.1 dB) |
| Max Input Level | +17 dBu |
| Line Outputs 1–2 (balanced 1/4" TRS) | |
| Frequency Response | 20 Hz – 20 kHz (+/-0.2 dB) |
| Dynamic Range | 112 dB (A-weighted) |
| THD+N | 0.002% (1 kHz, -1 dBFS) |
| Max Output Level | +17 dBu |
| Fixed Line Outputs 3–4 (balanced 1/4" TRS) | |
| Frequency Response | 20 Hz – 20 kHz (+/-0.2 dB) |
| Dynamic Range | 113 dB (A-weighted) |
| THD+N | 0.002% (1 kHz, -1 dBFS) |
| Max Output Level | +17 dBu |
| Headphone Outputs (stereo 1/4") | |
| Dynamic Range | 111 dB (A-weighted, 32 Ω load) |
| THD+N | 0.002% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω load) |
| Frequency Response | 20 Hz – 20 kHz (+/-0.2 dB) |
| Maximum Power Delivered | 160mW (<1% THD, 32 Ω load) |
| Maximum Output Level | +15 dBu (unloaded) |
| Impedance Range | 32 Ω – 600 Ω |
| General | |
| Other Connectors | (1) 1/8” (3.5 mm) MIDI input (1) 1/8” (3.5 mm) MIDI output (1) USB Type-C port (1) Power adapter input |
| Power Adapter | 12 VAC, 2 A, center-positive (included) |
| Dimensions (width x depth x height) | 10.2" x 7.3" x 3.6" (25.9 x 18.6 x 9.1 cm) |
| Weight | 3.9 lbs. 1.8 kg |
Software Package
- Ableton Live Lite
- Creative FX Collection Plus
- Xpand!2
- Mini Grand
- DB33
- Strike
- Hybrid 3
- Touch Loops
- Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects
-
MPC Beats
- 3 Virtual Instruments - TubeSynth, Electric, Bassline
- 80 FX Plugins - AIR Channel Strip, Half Time
- 2GB of factory content with bonus F9 instruments library
