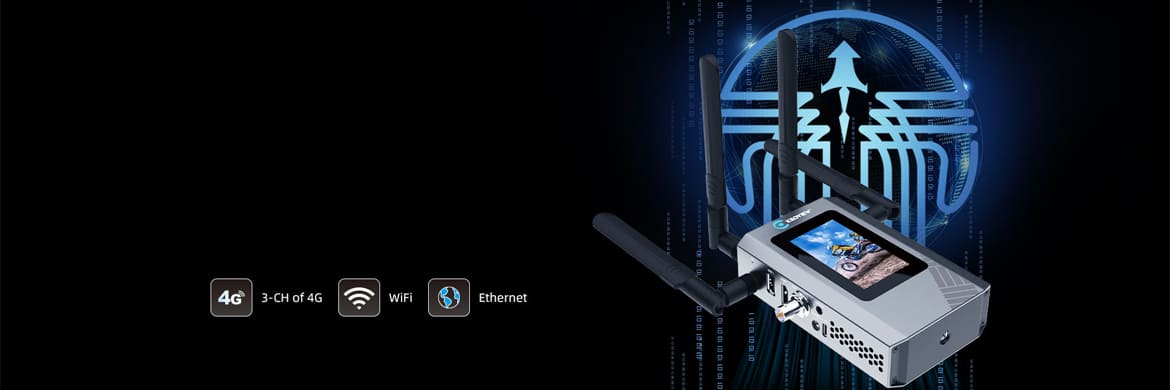

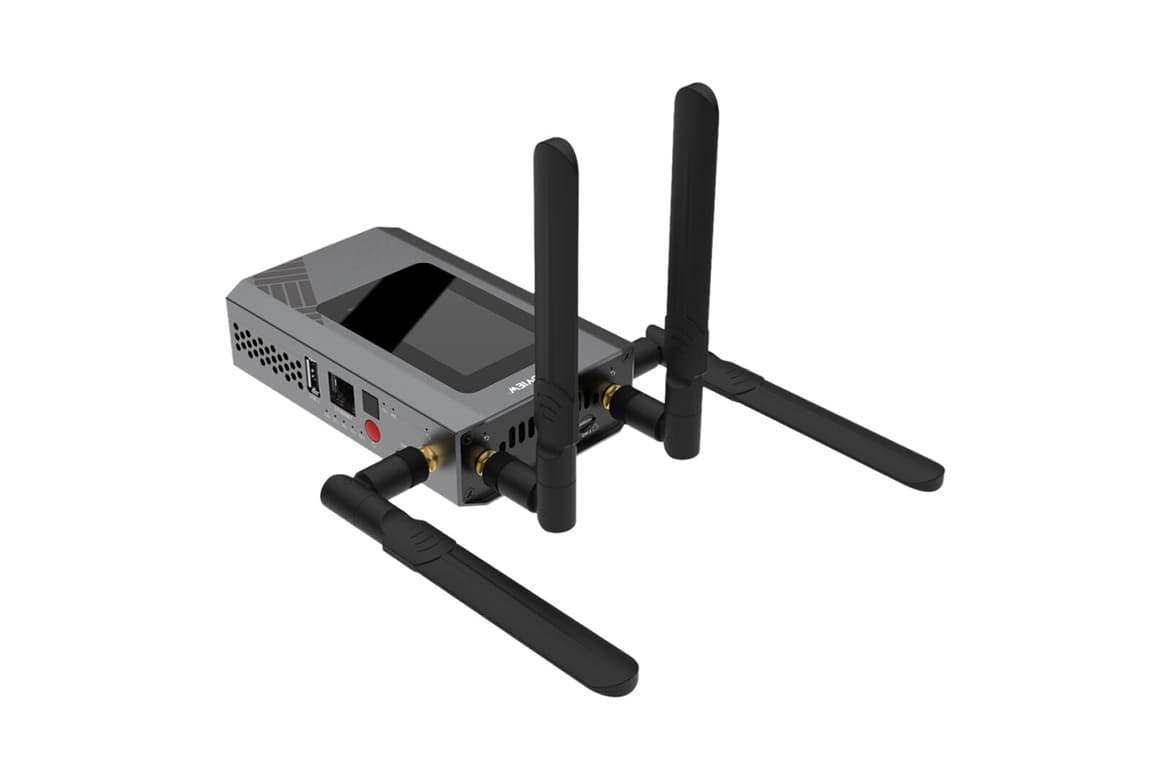

Kiloview P3 Mini 4G Wireless Bonding Encoder
Easy outdoor Streaming. Anytime, Anywhere
Product Highlights
- Wireless Live Streaming Encoder
- 3 x 4G Cellular Networks
- Wi-Fi & Ethernet Connectivity
- 3G-SDI & HDMI Inputs
- Supports Resolutions up to 1080p60
- KiloLink Bonding Transmission Technology
- Antenna Isolation Design
- 5000mAh Battery Included
- Supports PD Fast Charging
- Overview
- Tech Specs
The P3 Mini 4G Wireless Bonding Encoder is the perfect outdoor live streaming device built on patented KiloLink bonding transmission technology, serving also as the upgraded version of P1/ P2. The P3 Mini features professional-grade antenna isolation design, allowing for the effective bonding and connection of multiple channels (supporting 3*4G cellular network + 1WiFi + 1*RJ45 Ethernet port), boasting exceptional anti-interference capability and stable transmission performance. It is equipped with dual input interfaces for 3G-SDI and HDMI, supporting up to 1080P60 video resolution. Additionally, the P3 mini is equipped with a 5000mAh battery with 4-hours continuous operation and supports PD fast charging, fully meeting versatile application scenarios.
Model | P3 Mini |
Voice Intercom | Support |
Video Input | 1*1080P60 HDMI+1*3G-SDI |
Video Encoding | H.265/H.264 |
Resolution | up to 1080P60 |

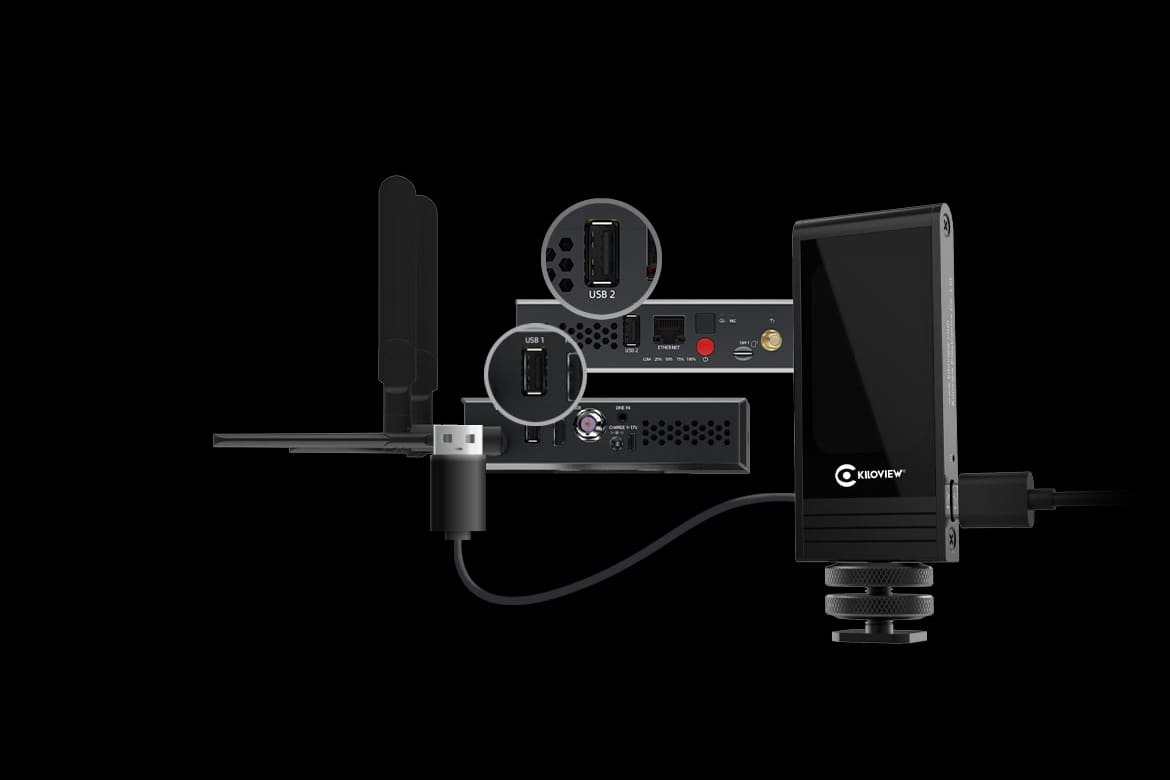

Recording/Storage | USB expansion |
PTZ | USB |
Protocols | NDI HX/ SRT/ RTMP/ RTSP/RTP/HLS/ TS-UDP (with KiloLink Server Pro) |
Power Supply | DC 12V/3A PD Fast Charging |
Power Consumption | 16W |
Network | 4G / WiFi / Ethernet |
Multi-channel Audio Encoding |
HDMI: 4 channels SDI: 4 channels Line in: 2 channels |
Management | Web/KiloLink Server Pro |

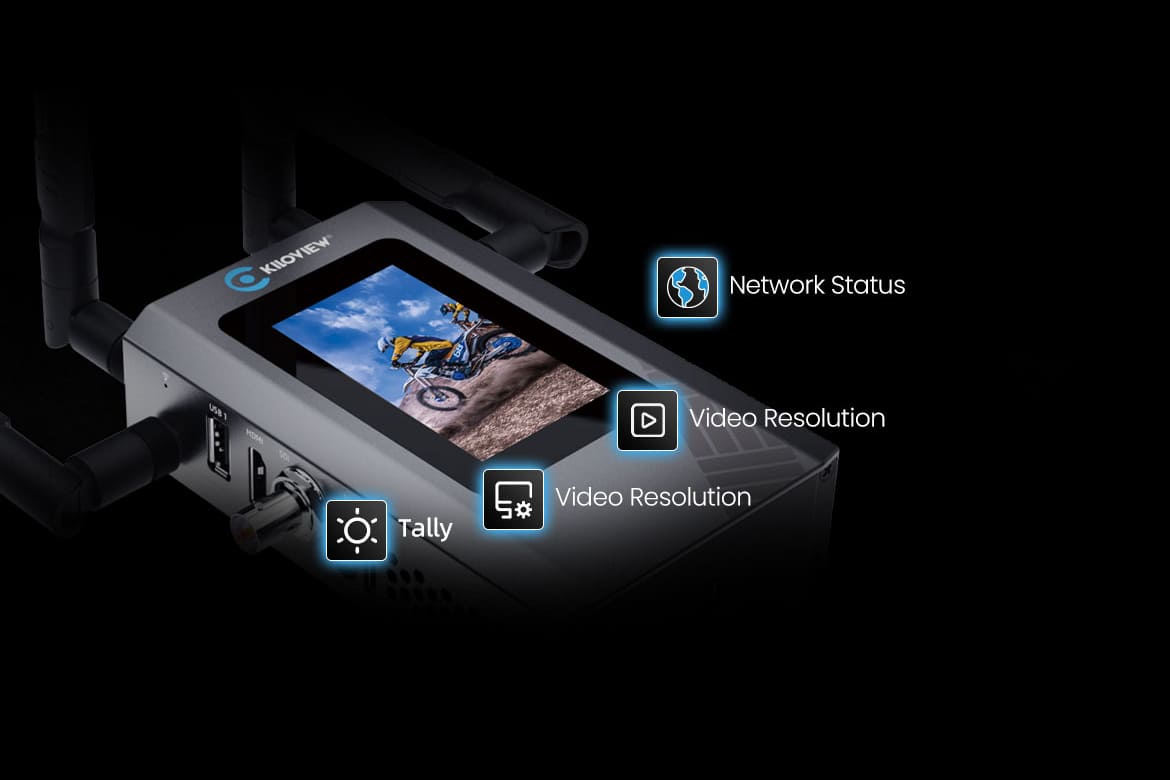

Display | 3" LCD touchscreen |
Bonding Performance | 3CH 4G cellular network, WIFI (2.4G/5G dual band), Ethernet |
Battery | 4900mAh 7.2V 35.28W |
Audio Port | 1*3.5mm Line in or SDI/HDMI embedded |
Weight
- 600g
Dimension (mm)
- 138*85*35mm
