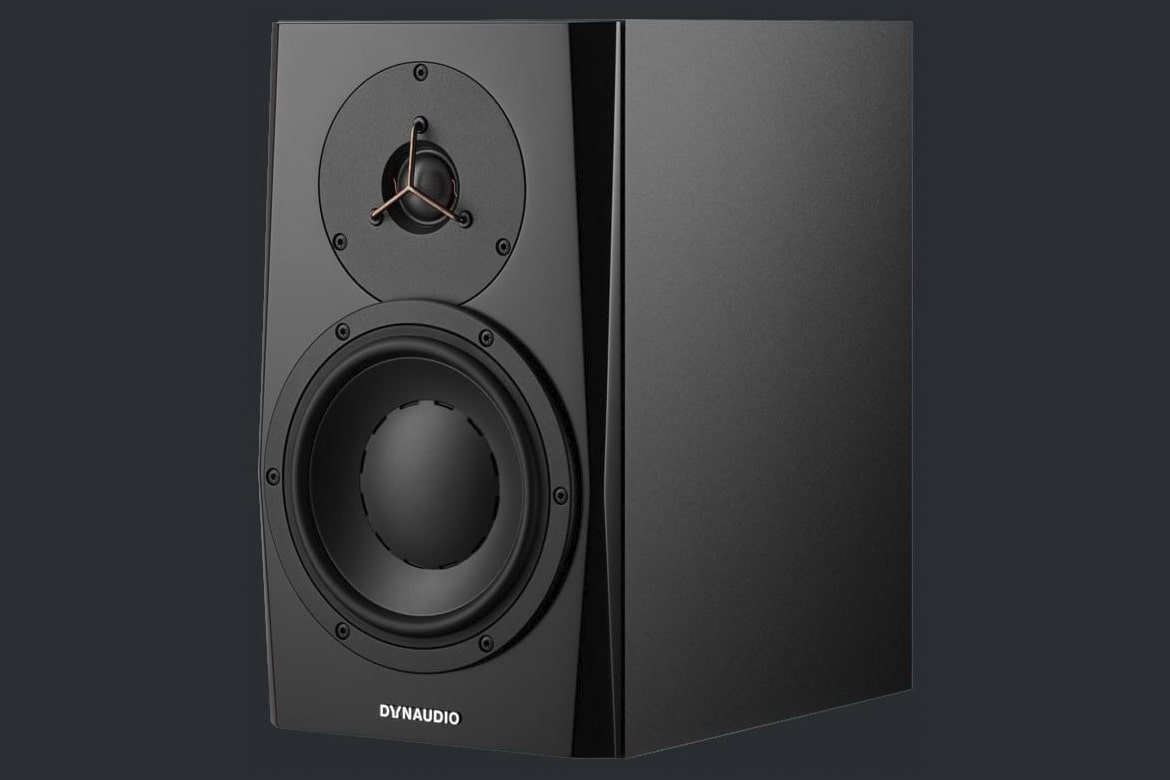

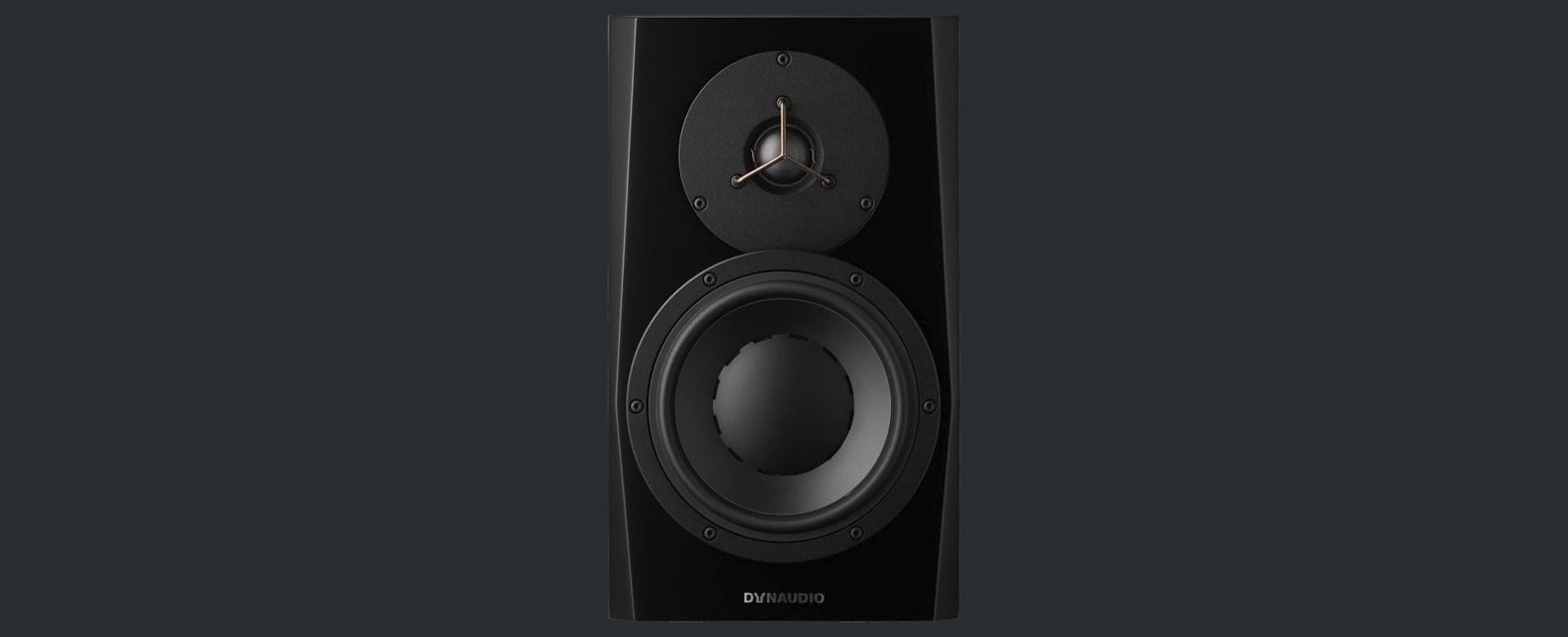

Dynaudio LYD 7 Black
Dynaudio

LYD 7 (Black)

2-way Active Nearfield Monitor with 7" Low-frequency Driver and Wall-position, Sound Balance, and Bass Extension Adjustments (each)
Key features
  • 2-way active nearfield monitor with 7" low-frequency driver
  • Onboard Class D bi-amplification: 50-watt HF, 50-watt LF
  • Maximum SPL (per pair, measured at 1 meter): 109dB
  • Crossover frequency: 4300Hz
  • Frequency response: 45Hz–22kHz
  • Bass reflex design with innovative side-flared slotted rear port
  • Advanced DSP with wall-boundary, sound balance, and bass extension adjustments
  • Expertly designed and crafted at Dynaudio's facilities in Skanderborg, Denmark
  • Overview
  • Tech Specs

The LYD 7 is the middleweight entry in Dynaudio's LYD range of active nearfield reference monitors, which makes it perfect for small-to-midsized control rooms as well as home hi-fi deployment. The technology employed in the LYD series is distilled from Dynaudio's extensive experience in designing and manufacturing the no-compromise main monitors used in top studios worldwide. The foundation of the LYD 7's outstanding overall performance is its accurate, controlled low-frequency reproduction. You rely on your monitors to reveal the truth about what you're recording. Does the lead vocal sit right in your mix? Is there too much bass? Not enough? Free of distortion, coloration, and phase issues that can cloud your judgment, the LYD 7 lets you know exactly what's going on with your tracks, mixes, and masters. With the Dynaudio LYD 7, you'll make better recordings.

Max SPL (1m, pair) 109dB
Principle Bass reflex
Crossover Frequency 4.3kHz
Tweeter 1in soft dome
Mid N/A
Woofer 7in
Sensitivity (85dB @ 1m, free field)
+6dB 50mV
0dB 100mV
-6dB 200mV
Amplifier
Power (Tweeter/Woofer) HF 50W/LF 70W
Type Class D
Power consumption standby <0.5W
Power consumption max. 100W
Input voltage 90 - 264V AC, 50 - 60Hz

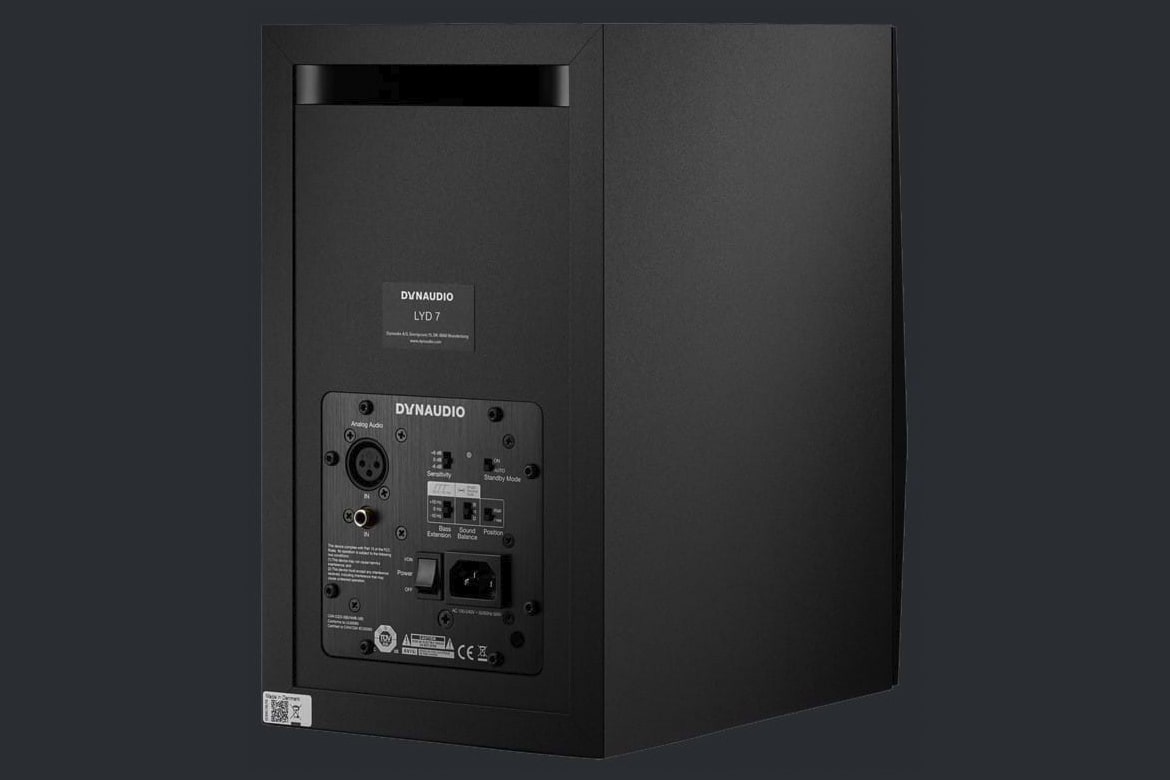

Inputs XLR balanced/RCA unbalanced
Outputs N/A
Cut-off frequencies -6dB limits
Bass extension +10Hz 65Hz - 21kHz
Bass extension 0Hz 55Hz - 21kHz
Bass extension -10Hz 45Hz - 21kHz
Free field frequency response 55Hz - 19kHz

Dimensions & Weight
  • Dimensions (W x H x D)
    186 x 320 x 296mm
  • Weight
    8kg
