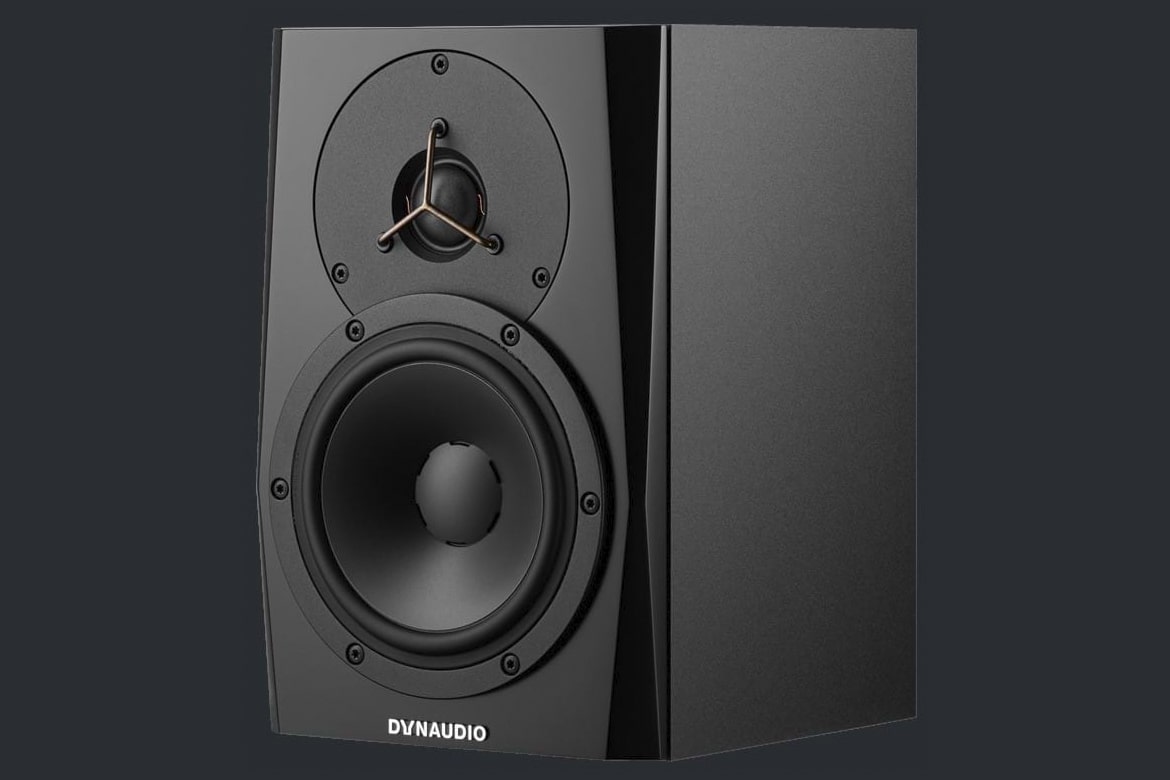

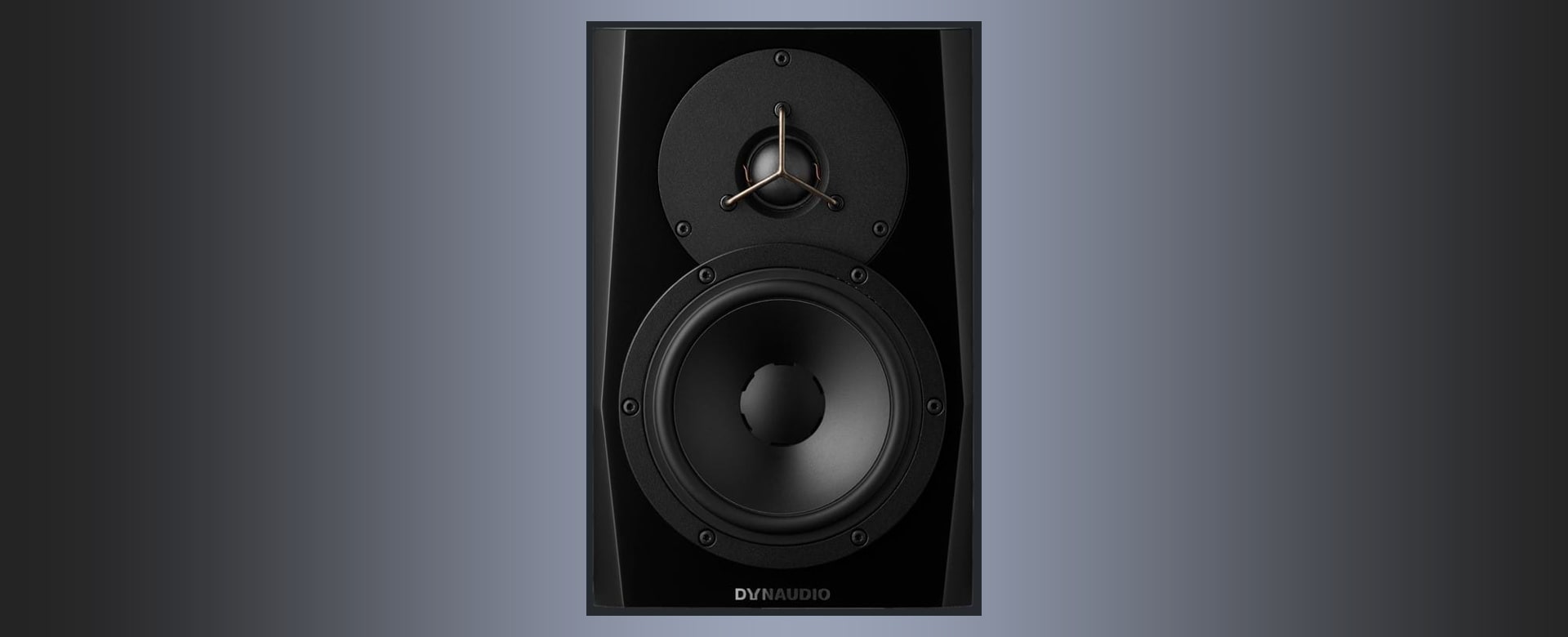

LYD 5 (Black)
2-way Active Nearfield Monitor with 5" Low-frequency Driver and Wall-position, Sound Balance, and Bass Extension Adjustments (each)
Key features
- 2-way active nearfield monitor with 5" low-frequency driver
- Onboard Class D bi-amplification: 50-watt HF, 50-watt LF
- Maximum SPL (per pair, measured at 1 meter): 106dB
- Crossover frequency: 5200Hz
- Frequency response: 50Hz–22kHz
- Bass reflex design with innovative side-flared slotted rear port
- Advanced DSP with wall-boundary, sound balance, and bass extension adjustments
- Expertly designed and crafted at Dynaudio's facilities in Skanderborg, Denmark
- Overview
- Tech Specs
The LYD 5 is the bantamweight entry in Dynaudio's LYD line of active nearfield reference monitors, which makes it perfect for small control rooms as well as home hi-fi applications. The technology employed in the LYD series is distilled from Dynaudio's extensive experience in designing and manufacturing the no-compromise main monitors used in top studios worldwide. The foundation of the LYD 5's outstanding overall performance is its tight, accurate low-frequency reproduction. You rely on your monitors to reveal the truth about what you're recording. Does the lead vocal sit right in your mix? Is there too much bass? Not enough? Free of distortion, coloration, and phase issues that can cloud your judgment, the LYD 5 lets you know exactly what's going on with your tracks, mixes, and masters. With the Dynaudio LYD 5, you'll make better recordings.
Max SPL (1m, pair) | 106dB |
Principle | Bass reflex |
Crossover Frequency | 5.2kHz |
Tweeter | 1in soft dome |
Mid | N/A |
Woofer | 5in |
Sensitivity (85dB @ 1m, free field) | |
+6dB | 50mV |
0dB | 100mV |
-6dB | 200mV |
Amplifier | |
Power (Tweeter/Woofer) | HF 50W/LF 50W |
Type | Class D |
Power consumption standby | <0.5W |
Power consumption max. | 100W |
Input voltage | 90 - 264V AC, 50 - 60Hz |
Inputs | XLR balanced/RCA unbalanced |
Outputs | N/A |
Cut-off frequencies -6dB limits | |
Bass extension +10Hz | 70Hz - 21kHz |
Bass extension 0Hz | 60Hz - 21kHz |
Bass extension -10Hz | 50Hz - 21kHz |
Free field frequency response | 62Hz - 19kHz |
Dimensions & Weight
- Dimensions (W x H x D)
170 x 260 x 211mm - Weight
5.7kg
