LYD 48 (Right Side) - White
180W 3-way Studio Reference Monitor with 8" Woofer, 4" Midrange, and 1" Tweeter (each)
Key features
- Studio Reference Monitor with 8" woofer, 4" midrange, and 1" tweeter
- Designed in mirror-imaged pairs, sold singly
- Class D tri-amplified: LF 80W, MF 50W, HF 50W
- Provides astonishing clarity across the frequency spectrum
- Delivers neutral midrange response critical for proper placement of vocals and instruments
- Advanced DSP lets you adjust low-frequency extension by +/-10Hz
- Position and Sound Balance controls for optimizing performance for any environment
- Expertly designed and crafted at Dynaudio's facilities in Skanderborg, Denmark
- Overview
- Tech Specs

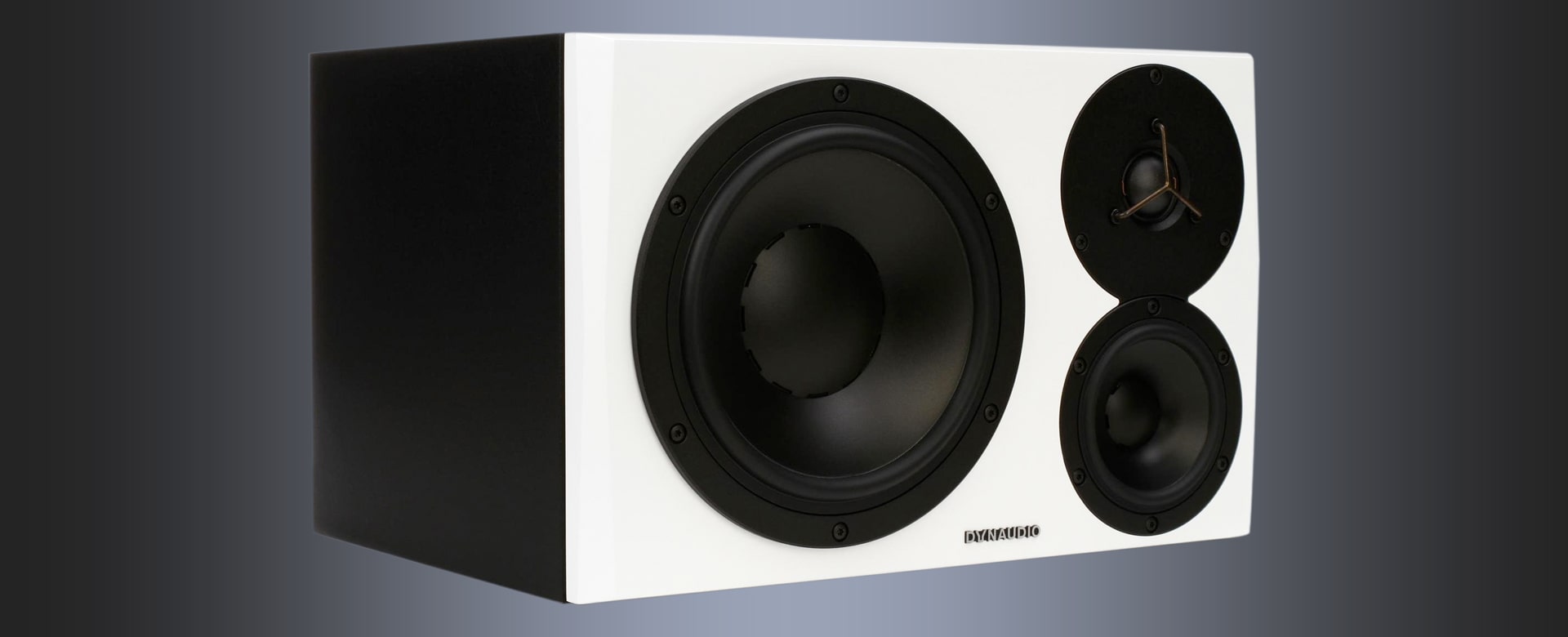

The Dynaudio LYD 48 will take your monitoring accuracy — and your mixes — to a higher level of professionalism. As the new flagship of the LYD range, the LYD 48 builds upon the strengths of its 2-way stablemates, and as a 3-way tri-amplified studio monitor, it achieves superior across-the-board performance. In a 2-way design, the woofer has to work very hard to reproduce the low frequencies as well as a portion of the midrange. Another inherent disadvantage is that the crossover to the tweeter is taking place within that all-important midrange — where the vocal tracks are most vibrant, where your guitars have girth and body, and generally where mixes either shine or fall flat. Having a dedicated midrange driver (and amp) delivers sweeping benefits, including solid bass extension, improved midrange purity, lower distortion, higher SPL capability, and overall accuracy. Suitable for both nearfield and midfield applications, the value-packed Dynaudio LYD 48 will help you make better recordings.
Max SPL (1m, pair) | 112dB |
Principle | Bass reflex |
Crossover Frequencies | 460Hz / 5.5kHz |
Tweeter | 1in soft dome |
Midrange | 4in |
Woofer | 8in |
Sensitivity (85dB @ 1m, free field) | |
+6dB | 50mV |
0dB | 100 mV |
-6dB | 200 mV |
Amplifier | |
Power (Tweeter/Midrange/Woofer) | 50W/50W/80W |
Type | Class D |
Power consumption standby | <0.5W |
Power consumption max. | 100W |
Input voltage | 90 - 264V AC, 50 - 60Hz |
Inputs | XLR balanced/RCA unbalanced |
Outputs | N/A |
Frequency response -6dB limits | |
Bass extension +10Hz | 60Hz - 21kHz |
Bass extension 0Hz | 50Hz - 21kHz |
Bass extension -10Hz | 40Hz - 21kHz |
Free field frequency response | 50Hz - 19kHz |
Frequency response -10dB limits | |
Bass extension +10Hz | 52Hz - 24kHz |
Bass extension 0Hz | 42Hz - 24kHz |
Bass extension -10Hz | 32Hz - 24kHz |
Dimensions & Weight
- Dimensions (W x H x D)
369 x 234 x 328mm - Weight
12kg
