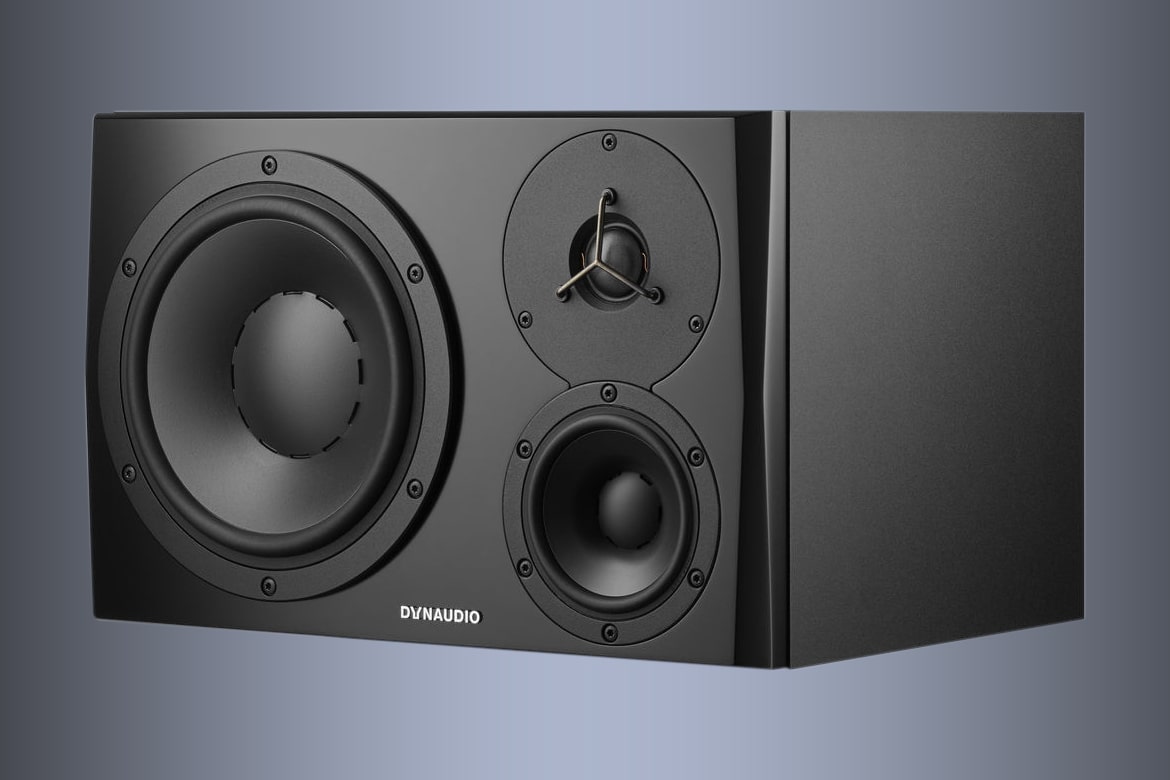

Dynaudio LYD 48
Dynaudio

LYD 48 (Right Side) - Black

180W 3-way Studio Reference Monitor with 8" Woofer, 4" Midrange, and 1" Tweeter (each)
Key features
  • Studio Reference Monitor with 8" woofer, 4" midrange, and 1" tweeter
  • Designed in mirror-imaged pairs, sold singly
  • Class D tri-amplified: LF 80W, MF 50W, HF 50W
  • Provides astonishing clarity across the frequency spectrum
  • Delivers neutral midrange response critical for proper placement of vocals and instruments
  • Advanced DSP lets you adjust low-frequency extension by +/-10Hz
  • Position and Sound Balance controls for optimizing performance for any environment
  • Expertly designed and crafted at Dynaudio's facilities in Skanderborg, Denmark
  • Overview
  • Tech Specs

The Dynaudio LYD 48 will take your monitoring accuracy — and your mixes — to a higher level of professionalism. As the new flagship of the LYD range, the LYD 48 builds upon the strengths of its 2-way stablemates, and as a 3-way tri-amplified studio monitor, it achieves superior across-the-board performance. In a 2-way design, the woofer has to work very hard to reproduce the low frequencies as well as a portion of the midrange. Another inherent disadvantage is that the crossover to the tweeter is taking place within that all-important midrange — where the vocal tracks are most vibrant, where your guitars have girth and body, and generally where mixes either shine or fall flat. Having a dedicated midrange driver (and amp) delivers sweeping benefits, including solid bass extension, improved midrange purity, lower distortion, higher SPL capability, and overall accuracy. Suitable for both nearfield and midfield applications, the value-packed Dynaudio LYD 48 will help you make better recordings.

Max SPL (1m, pair) 112dB
Principle Bass reflex
Crossover Frequencies 460Hz / 5.5kHz
Tweeter 1in soft dome
Midrange 4in
Woofer 8in
Sensitivity (85dB @ 1m, free field)
+6dB 50mV
0dB 100 mV
-6dB 200 mV
Amplifier
Power (Tweeter/Midrange/Woofer) 50W/50W/80W
Type Class D
Power consumption standby <0.5W
Power consumption max. 100W
Input voltage 90 - 264V AC, 50 - 60Hz
Inputs XLR balanced/RCA unbalanced
Outputs N/A
Frequency response -6dB limits
Bass extension +10Hz 60Hz - 21kHz
Bass extension 0Hz 50Hz - 21kHz
Bass extension -10Hz 40Hz - 21kHz
Free field frequency response 50Hz - 19kHz
Frequency response -10dB limits
Bass extension +10Hz 52Hz - 24kHz
Bass extension 0Hz 42Hz - 24kHz
Bass extension -10Hz 32Hz - 24kHz

Dimensions & Weight
  • Dimensions (W x H x D)
    369 x 234 x 328mm
  • Weight
    12kg
