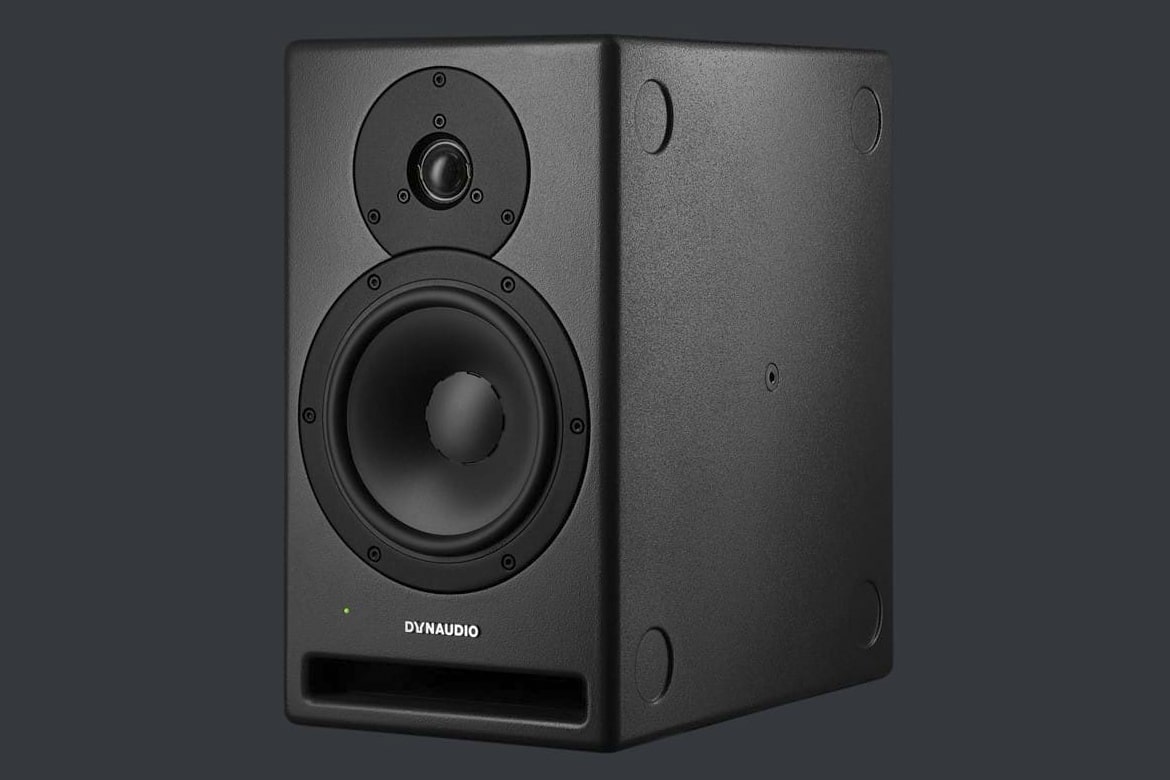

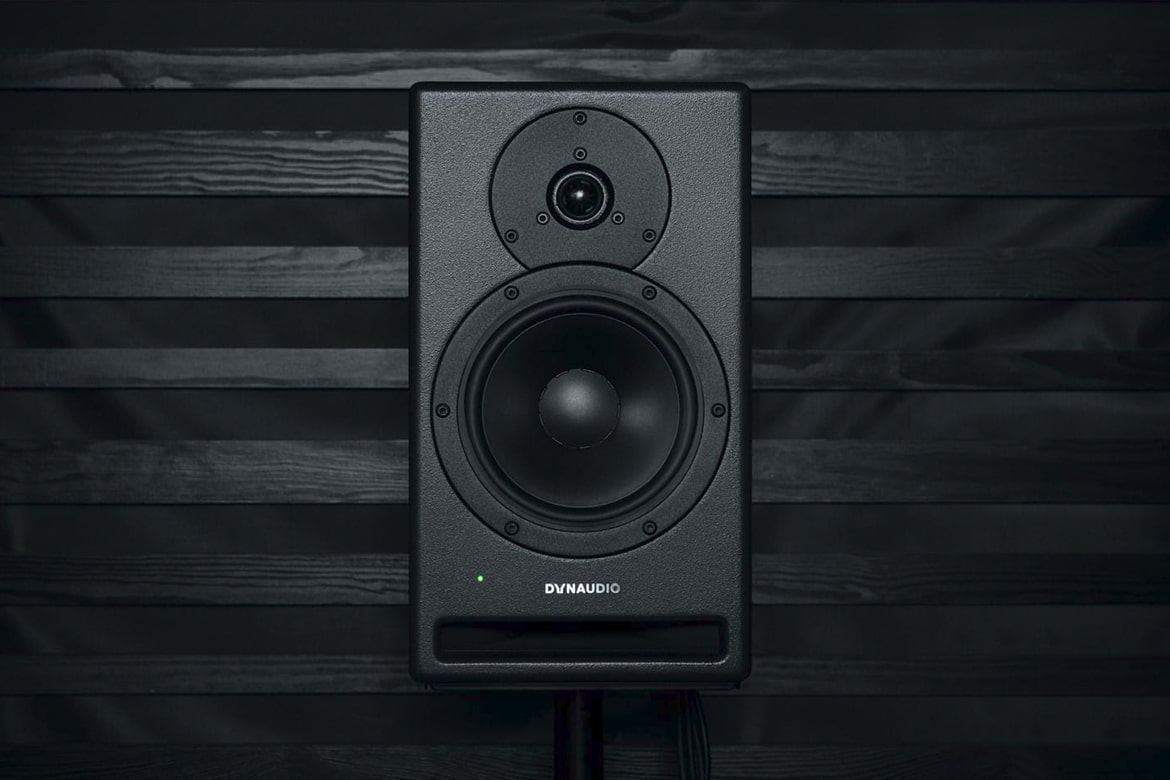

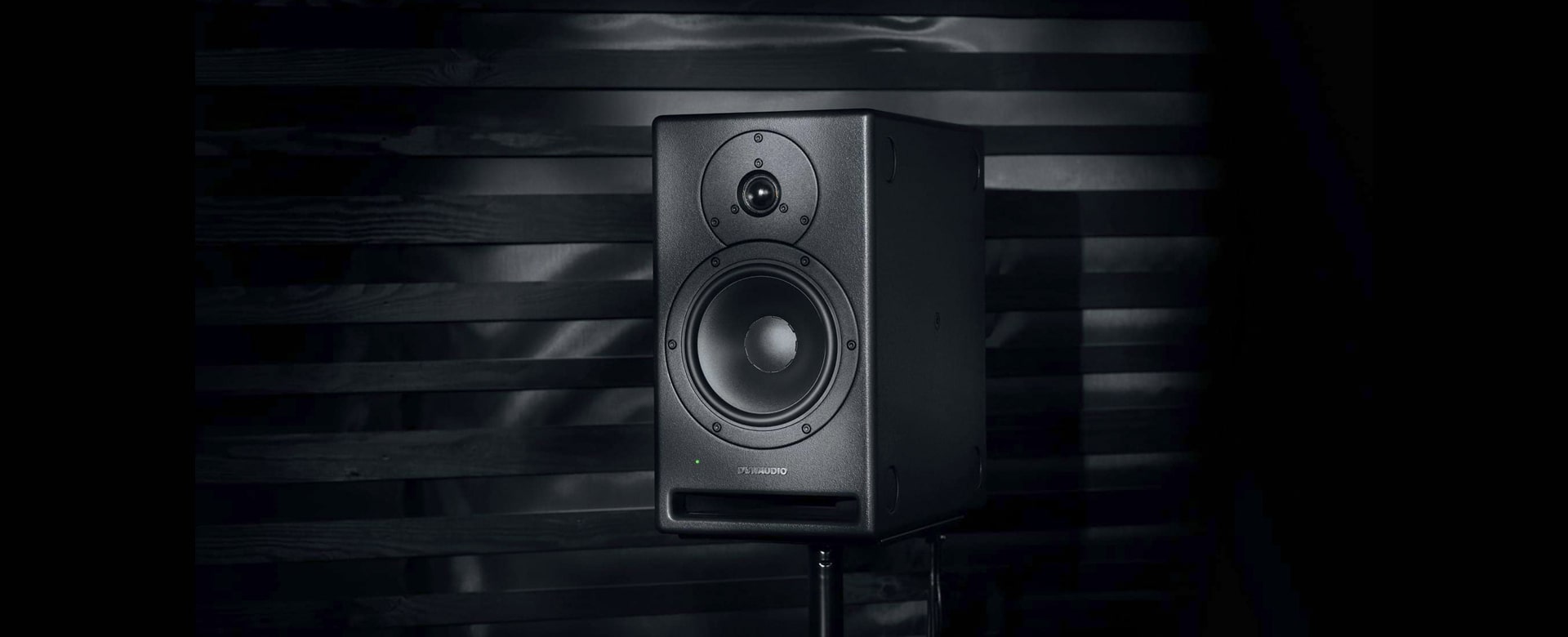

Core 7
Active Studio Nearfield/Midfield/Main Monitor with Class D Pascal Bi-amplification; 1" 150W Tweeter, 7" 500W Mid/Woofer, and Onboard DSP (each) - Black
Key features

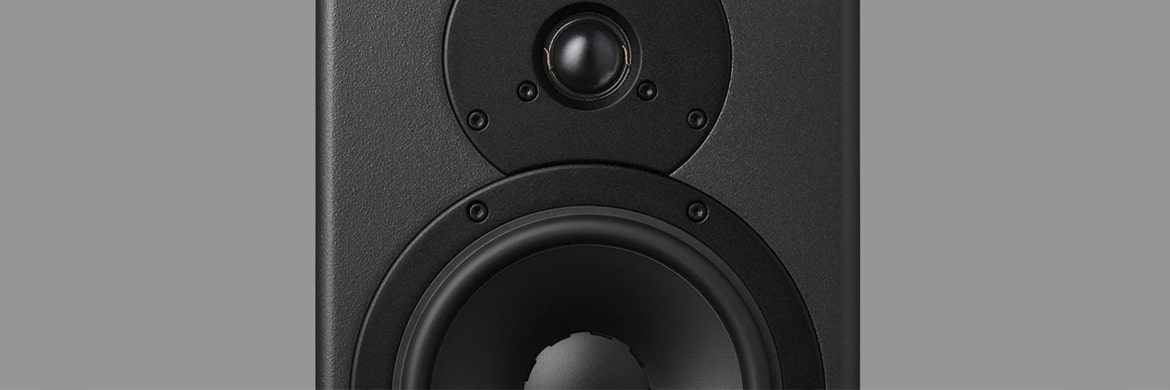

- 1" tweeter, 7" mid/woofer
- Class D Pascal bi-amplification HF 150 watts / LF 500 watts
- Frequency response: 44Hz–21kHz ±3dB (38Hz–24kHz -6dB)
- Front-loaded bass reflex cabinet
- All drivers handcrafted by Dynaudio in Denmark
- Core DSP optimizes imaging, balance, and bass extension
- Analog and AES3 digital inputs
- 24-bit sampling rate and 192kHz resolution; dependent on input signal
- Maximum SPL: 112dB at 1m anechoic, 118dB half space
- Crossover frequency: 2,300Hz
- Overview
- Tech Specs
For most professional studio engineers, the very idea of a compact, 7" 3-way studio monitor sounds nearly impossible. Leave it to Dynaudio to show us how it's done. With extraordinary clarity, tons of headroom, and unbelievable definition across the frequency spectrum, engineers here at Sweetwater have found Core 7 studio monitors show exactly what you can pack in a reasonably small studio monitor.
Highlights of the Dynaudio Core 7 include a 3-way design, with a 7" low-frequency and a 4" midrange MSP (Magnesium Silicate Polymer) driver, and a 1" Esotar Pro tweeter. These speakers are tri-amped for a total of 1,150 watts (500W + 500W + 150W) of amplification — a recipe for extreme headroom. Between its cutting edge waveguide and front-facing bass reflux design, you'll get the kind of focused full-range sound you'd expect from a 2.1 stereo setup, and a wide sweet spot that doesn't sacrifice an iota of stereo imaging. And between extremely flexible mounting options and stellar onboard digital conversion, Dynaudio Core 7 studio monitors are among the finest we've heard.
Tweeter | 1in |
Midrange | N/A |
Woofer | 7in |

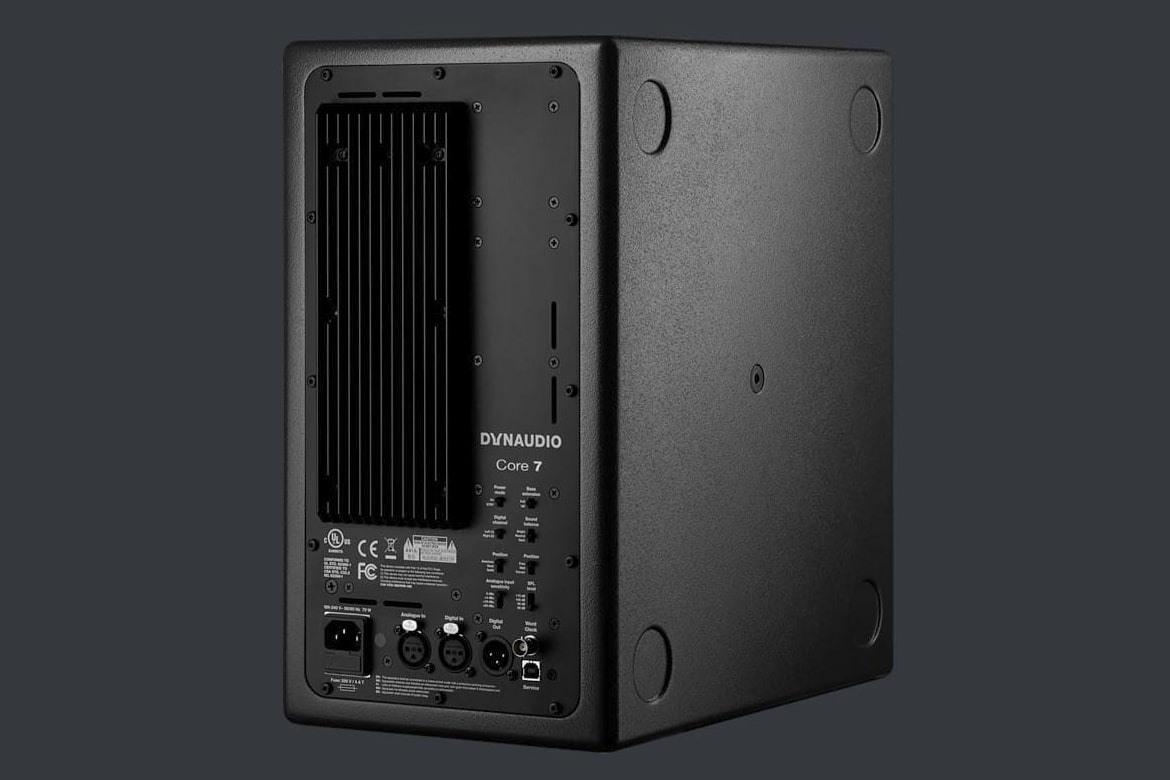

Inputs | Analogue and AES3 digital inputs |
Maximum 24-bit/192 kHz | Depending on input signal |
Maximum SPL | 112 dB @ 1 m anechoic, 118 dB half space |
Crossover frequency | 2300 Hz |
Frequency response (+/- 6 dB) | 38 Hz – 31 kHz |
Frequency response (+/- 3 dB) | 45 Hz – 27 kHz |
Principle | Front-loaded bass reflex |
Amplifiers | Pascal Class-D. HF 150 W / LF 500 W |
Dimensions & Weight
- Dimensions (WxDxH):
220 x 370 x 390 mm (8 11/16 x 14 5/8 x 15 3/8in) - Weight:
14.7 kg (32.4 lb)
