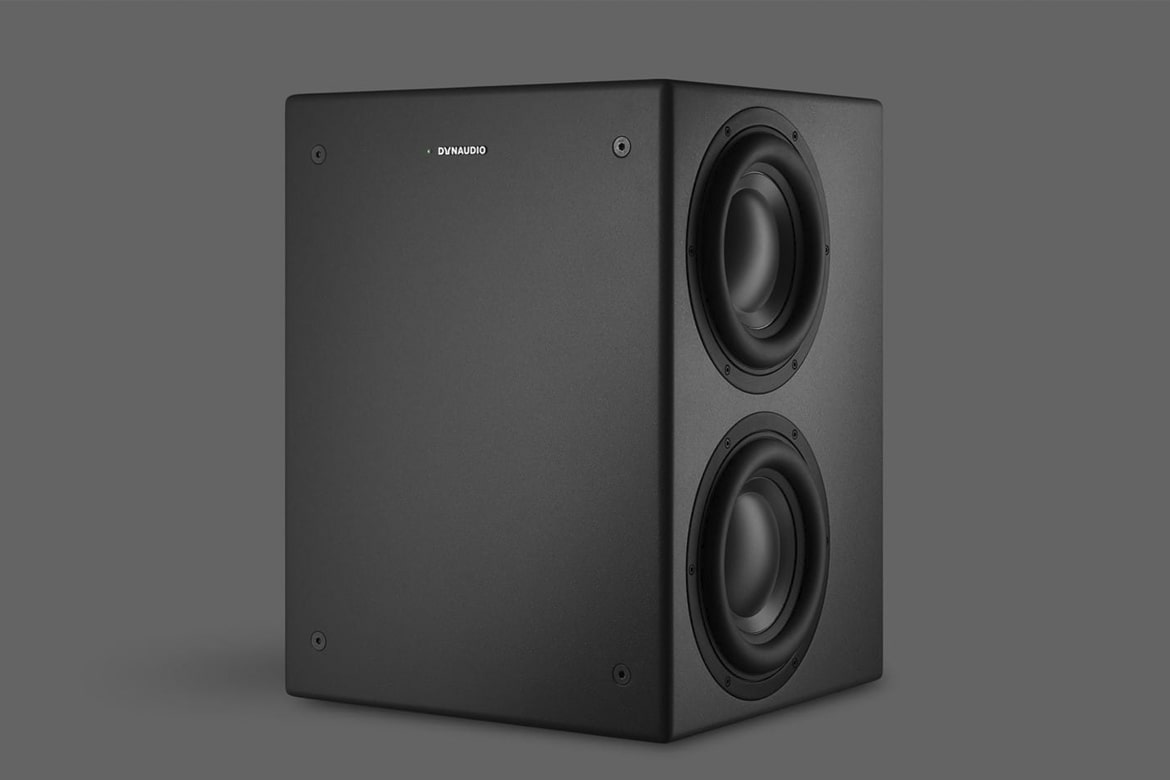

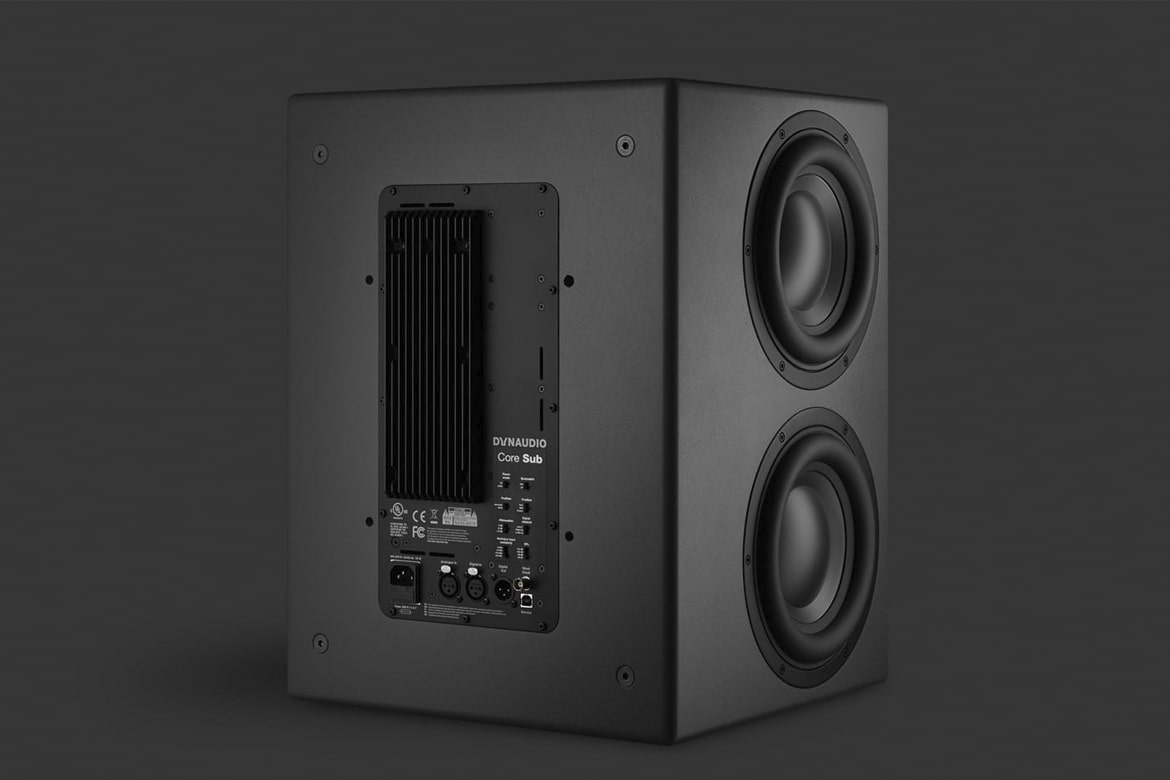

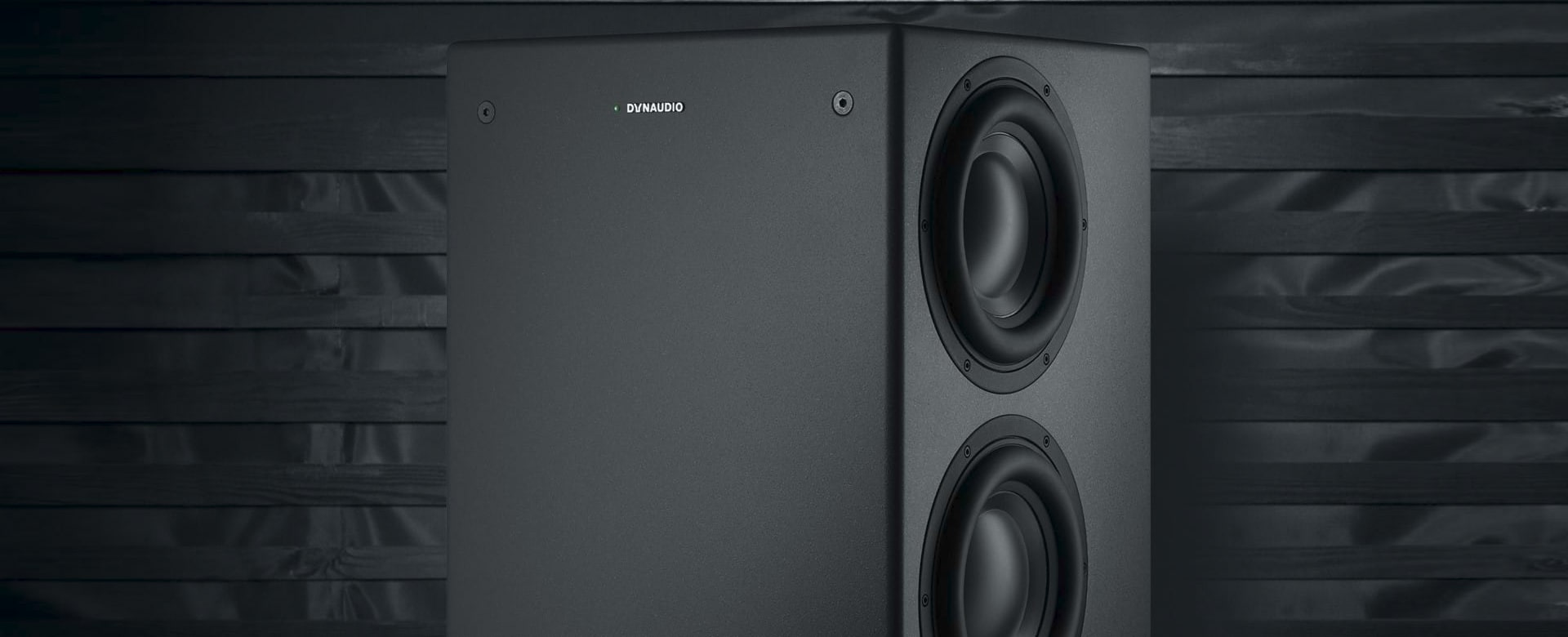

Core Sub
1000W, 4 x 9" Powered Subwoofer with Digital Input and DSP
Key features
- Unique 4 x 9" studio subwoofer delivers deep yet ultra-precise low frequencies
- MSP+ (Magnesium Silicate Polymer) Hybrid Drive speakers feature lightweight aluminum construction for extremely low distortion
- Extremely accurate all the way down to 13.5Hz, well below the threshold of human hearing
- Highly efficient 1000W amplifier provides massive headroom
- Analog and AES3 digital inputs let you keep your signal digital right to the end
- 24-bit sampling rate and 192kHz resolution; dependent on input signal
- Core DSP optimizes imaging, balance, and bass extension
- All drivers handcrafted by Dynaudio in Denmark
- Overview
- Tech Specs
Featuring a quartet of side-firing 9" drivers, Dynaudio's Core Sub offers the kind of tight and focused low-frequency extension that exemplifies what a real studio sub should do. These drivers are Dynaudio's MSP+ (Magnesium Silicate Polymer) Hybrid Drive models, which use aluminum for maximum stiffness. With their dual-action damping system, the Core Sub doesn't run the risk of generating ringing overtones. And with additional perks such as up to 24-bit/192kHz digital input, flexible mounting options, and 1,000 watts of amplification for massive headroom, you can hardly do better than Dynaudio's Core Sub.
| Woofer | 4 x 9in |
| Inputs | Analogue and AES3 digital inputs (no sample-rate conversion) |
| Resolution | Maximum 24-bit / 192 kHz, depending on input signal (32, 44.1, 48, 96 & 192 kHz sample rates supported, analogue runs at 192 kHz) |
| Max SPL | 120 dB |
| Frequency response (- 6 dB) | 13.5 Hz – 200 Hz |
| Frequency response (+/- 3 dB) | 15 Hz – 165 Hz |
| Box principle | Sealed enclosure |
| Amplifiers | Pascal Class-D amplifiers: LF 2 x 500 W |
Dimensions & Weight
- Dimensions (WxDxH):
390 mm, 365 mm, 514 mm (W x D x H)
15 3⁄8in, 14 3⁄8in, 20 1⁄4in (W x D x H) - Weight:
48 kg (105.8 lb)
