Videohub Smart Control Pro

Videohub Smart Control Pro

Blackmagic Design
Product Highlights
  • Controls the Router from the Desktop
  • 40 YRGB Illuminated Buttons
  • Buttons Can Be Backlit
  • USB Connection
  • Windows & Mac Software
  • Single & Multiple Destination Options
  • Take Button
  • Compact - 1U Rack Size
  • Power over Ethernet (PoE)
  • Power Fail Protection

  • Overview
  • Tech Specs

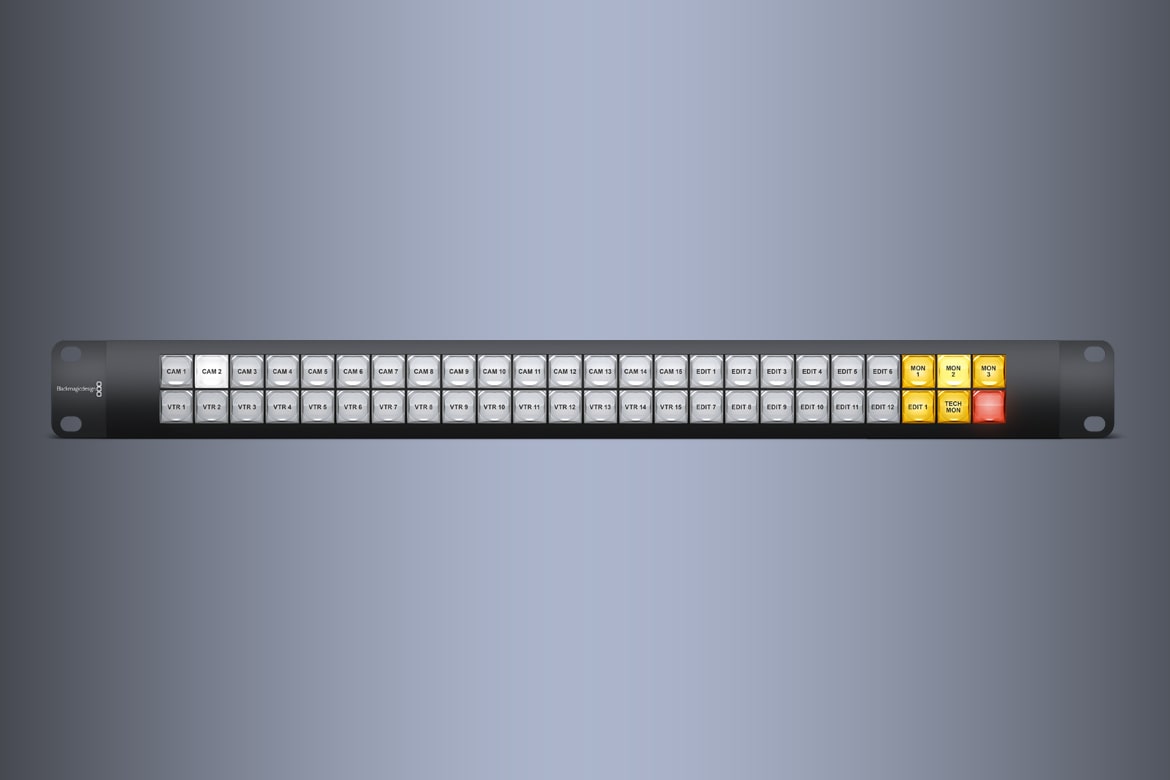

40 button control panel for XY or single destination control. Supports ethernet.

When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Powers via DC or the Ethernet connection!

Connections
Ethernet RJ45 Ethernet with Power over Ethernet supported, without power supplied on loop Ethernet output.
Power +12V DC input
Macro Capability
Macro Capability Up to 10 Macro buttons can be assigned to activate multiple simultaneous switching commands.
Hardware Control
Hardware Control 40 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.
Software
Software Internal Software upgrade via included firmware updater application via USB
Physical Installation
Physical Installation 1 rack unit size. Less than an inch deep.
Button Configuration
Button Configuration Included free for Windows™ and Mac OS X™ via USB 2.0 high speed (480Mb/s) interface.

Operating Systems
  • Mac 10.12 Sierra,
    Mac 10.13 High Sierra or later.
  • Windows 8.1 or Windows 10.

Power Requirements
  • Power Fail Protection
    Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
  • Power Supply
    1 x Universal power supply included with international socket adapters for all countries.
