Videohub Smart Control Pro
48 button control panel for XY or single destination control. Supports ethernet
Product Highlights
- Perfect for Digital Cinema, Live Recording and Monitoring
- Modern Design with 12G‑SDI and Bright HDR Screen
- Upgrade to Better Recording for Digital Cameras
- Large HDR Monitor with Easy Touch Controls
- Dual Media Recorders for Uninterrupted Recording
- Record Direct to External USB‑C Media Disks
- Advanced 12G‑SDI and HDMI 2.0 Inputs and Outputs
- HDR Support with Bright Wide Gamut LCD
- Built In Scopes Ensure Compliance to Standards
- Latest Multi Rate 12G‑SDI for SD, HD and Ultra HD
- Load Custom 3D LUTs to Recreate Film Looks
- Professional Multi Channel SDI and Analog Audio
- Overview
- Tech Specs

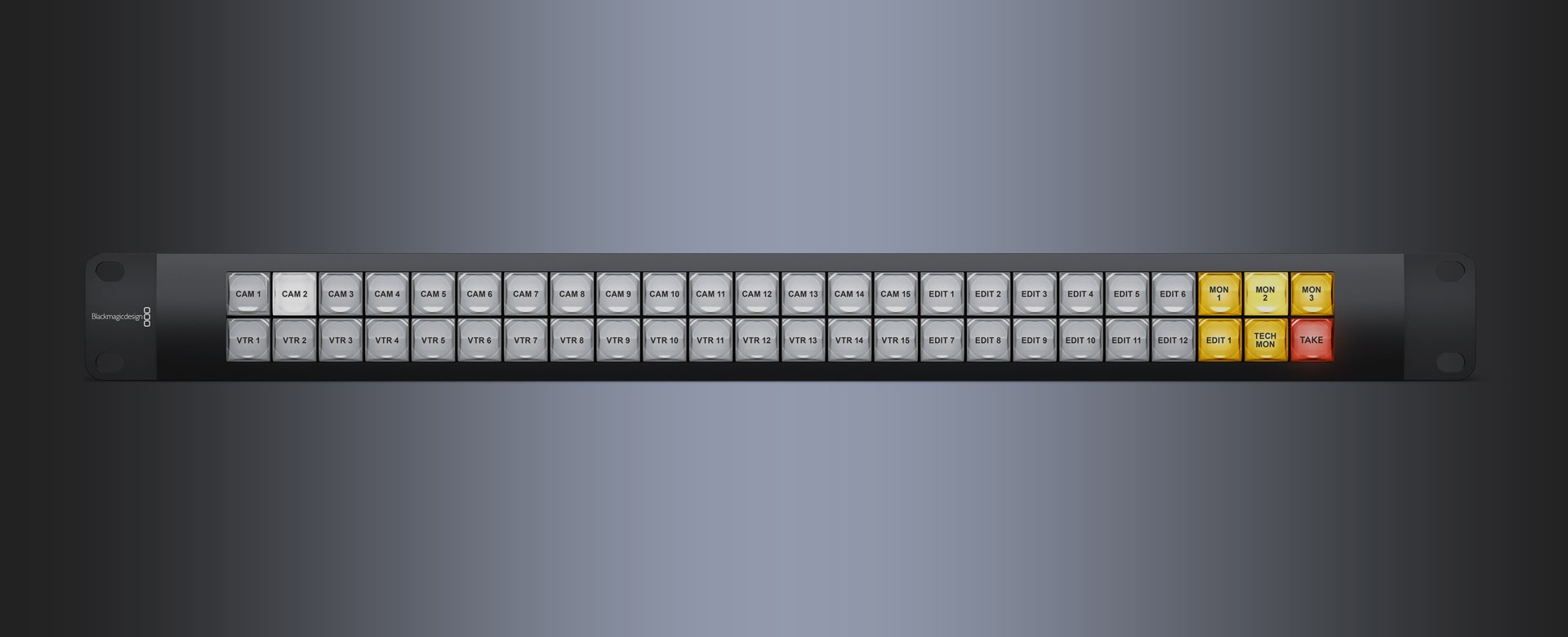

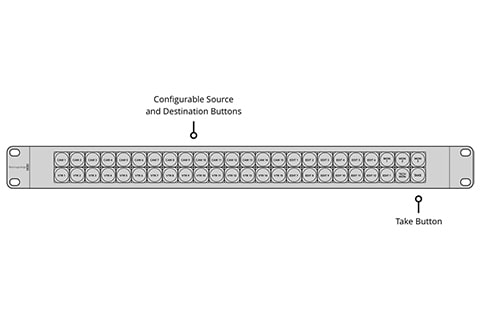

When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Powers via DC or the Ethernet connection!

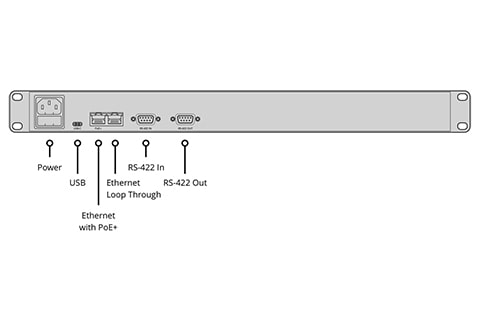

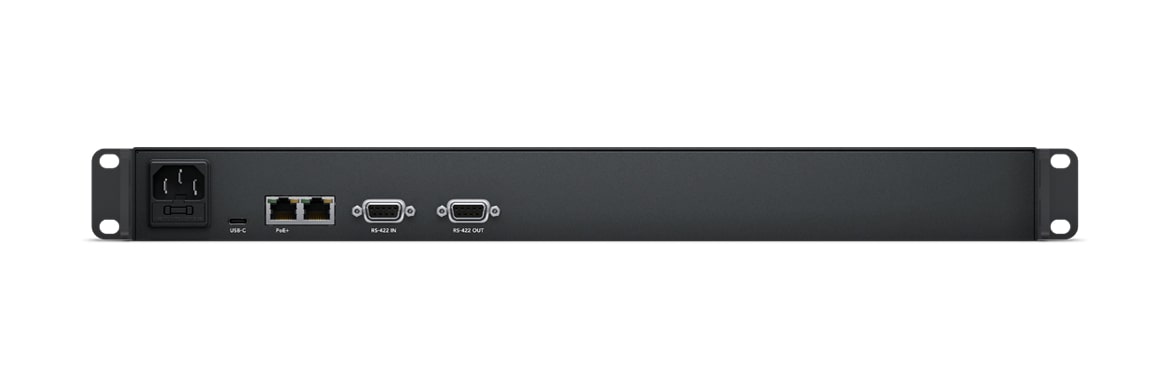

| Connections | |
| Ethernet | RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out. |
| RS-422 | In and Out (for future implementation) |
| Computer Interface | USB-C for configuration and software updates. |
| Power | 100 - 240 AC |
| Macro Capability | |
| Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands. | |
| Hardware Control | |
| 48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network. | |
| Software | |
| Internal Software upgrade via included firmware updater application via USB. | |
| Physical Installation | |
| 1 rack unit size. Less than 3 inches deep. | |
| Button Configuration | |
| Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface. | |
| Physical Specifications | |
| Width | 18.97 in |
| Depth | 4.41 in |
| Height | 1.74 in |
| Weight | 2.2 lb |
| Environmental Specifications | |
| Storage temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac
Mac 10.14 Mojave,
Mac 10.15 Catalina or later. - Windows
Windows 10.
Power Requirements
- Power Fail Protection
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall. - Power Supply
Internal 100 - 240 V AC
