Videohub Master Control Pro

Videohub Master Control Pro

Blackmagic Design
Product Highlights
  • Controls All Videohubs Small to Large
  • Cycles Through, Selects, Routes Inputs
  • Locks and Unlocks Routes
  • Labels Routes and Searches by Label
  • Connects by Ethernet

  • Overview
  • Tech Specs

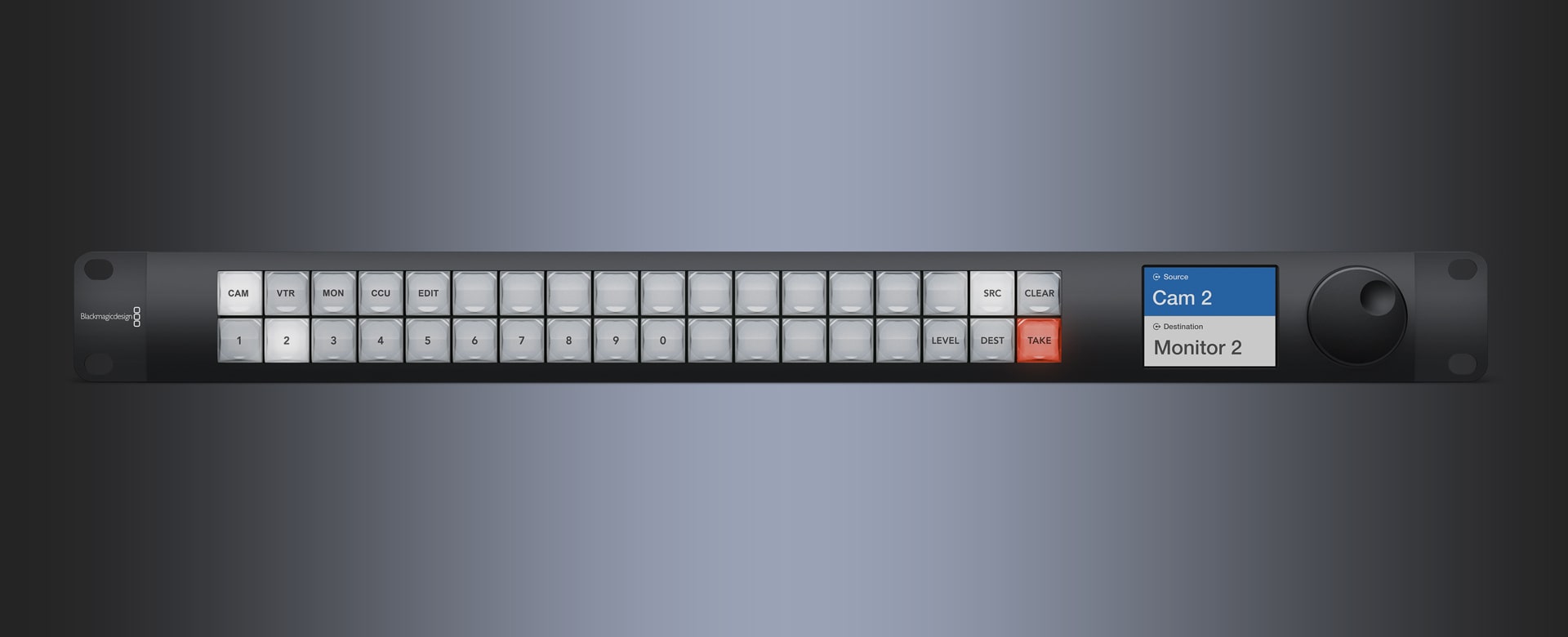

Spin knob and direct entry control panel with LCD status. Supports ethernet.

When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Powers via DC or the Ethernet connection!

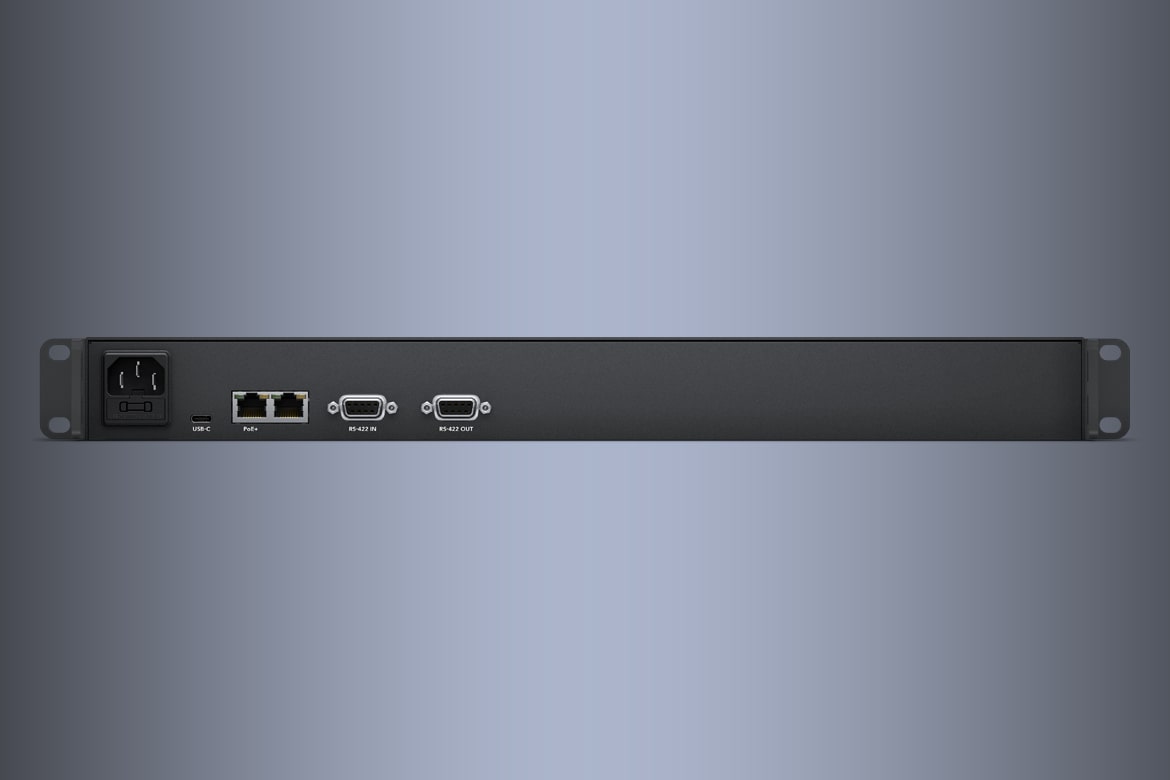

Connections
Ethernet RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
RS-422 In and Out (for future implementation)
Computer Interface USB-C for configuration and software updates.
Power 100 - 240 AC
Hardware Control

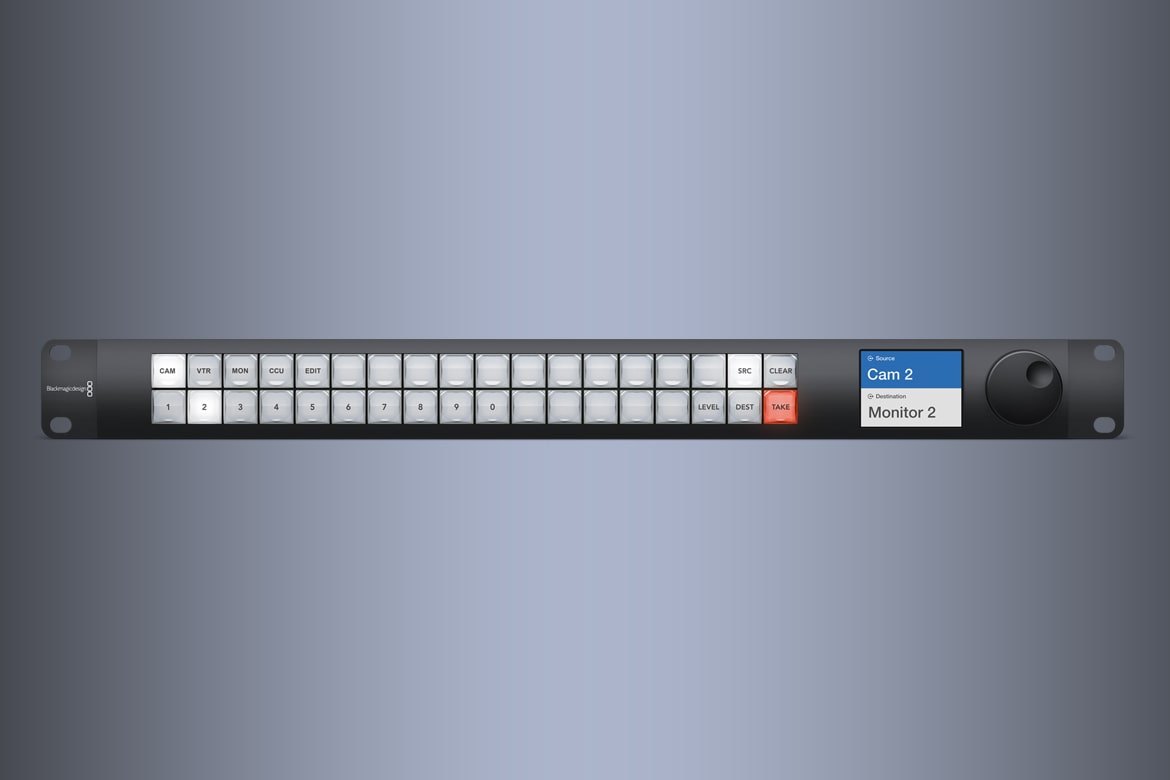

Hardware Control 21 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen.
Software
Internal Software Internal Software upgrade via included firmware updater application via USB or ethernet.
Physical Installation
Physical Installation 1 rack unit size. Less than 3 inches deep.
Button Configuration
Button Configuration Included free for Windows and Mac via USB 2.0 high speed (480Mb/s) interface.
Physical Specifications
Weight 2.2 lb
Width 18.97 in
Height 1.74 in
Depth 4.64 in
Environmental Specifications
Operating temperature 0° to 40° C (32° to 104° F)
Storage temperature 20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing

Operating Systems
  • Mac 10.12 Sierra,
    Mac 10.13 High Sierra or later.
  • Windows 8.1 or Windows 10.

Power Requirements
  • Power Fail Protection
    Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
  • Power Supply
    Internal 100 - 240 V AC
