Product Highlights
- Controls up to 8 Ultimatte Units
- Capacitive Touchscreen LCD
- Rotary Encoders
- User-Friendly Interface
- On Line and On Air Indicators per Unit
- Overview
- Tech Specs
Control up to 8 different Ultimatte 12 units at the same time!

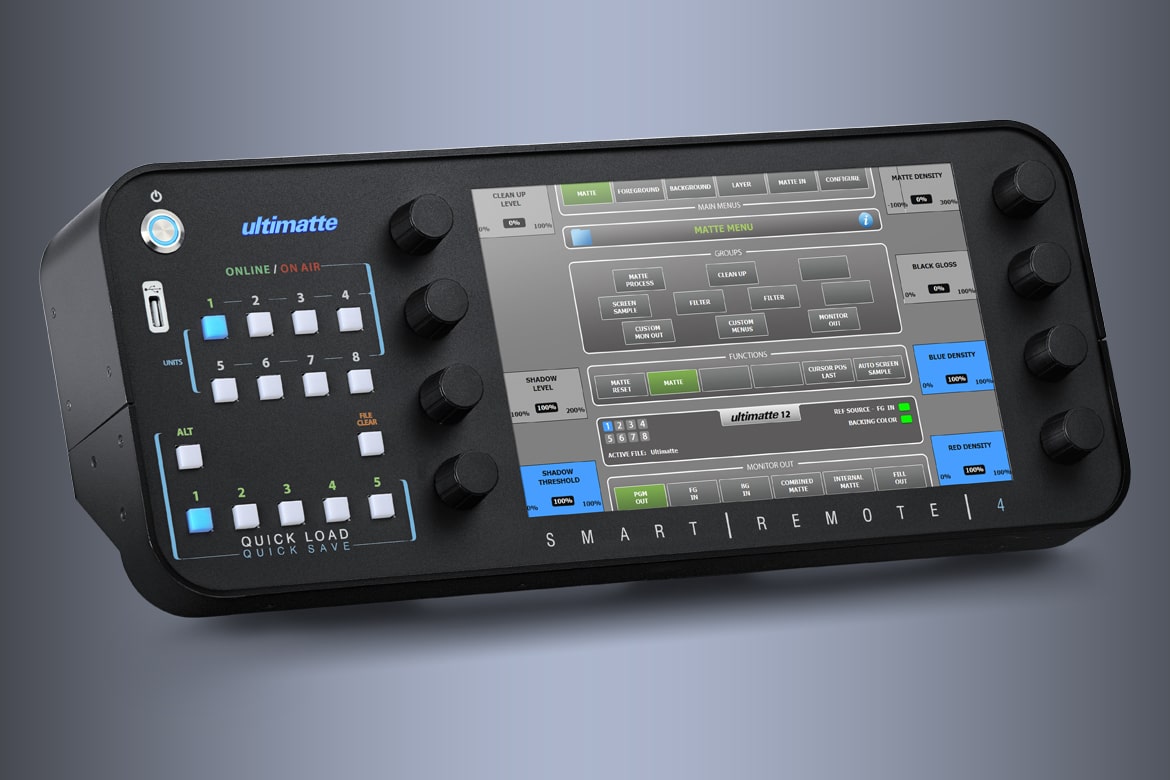

Now you can control control up to 8 different Ultimatte 12 units at the same time via ethernet. Smart Remote 4 features a 10.1 inch touchscreen for quickly navigating menus and adjusting settings, along with hard buttons with on line and on air indicators for quickly switching between units. The file clear button automatically adjusts the most important settings to instantly give you incredible composites!

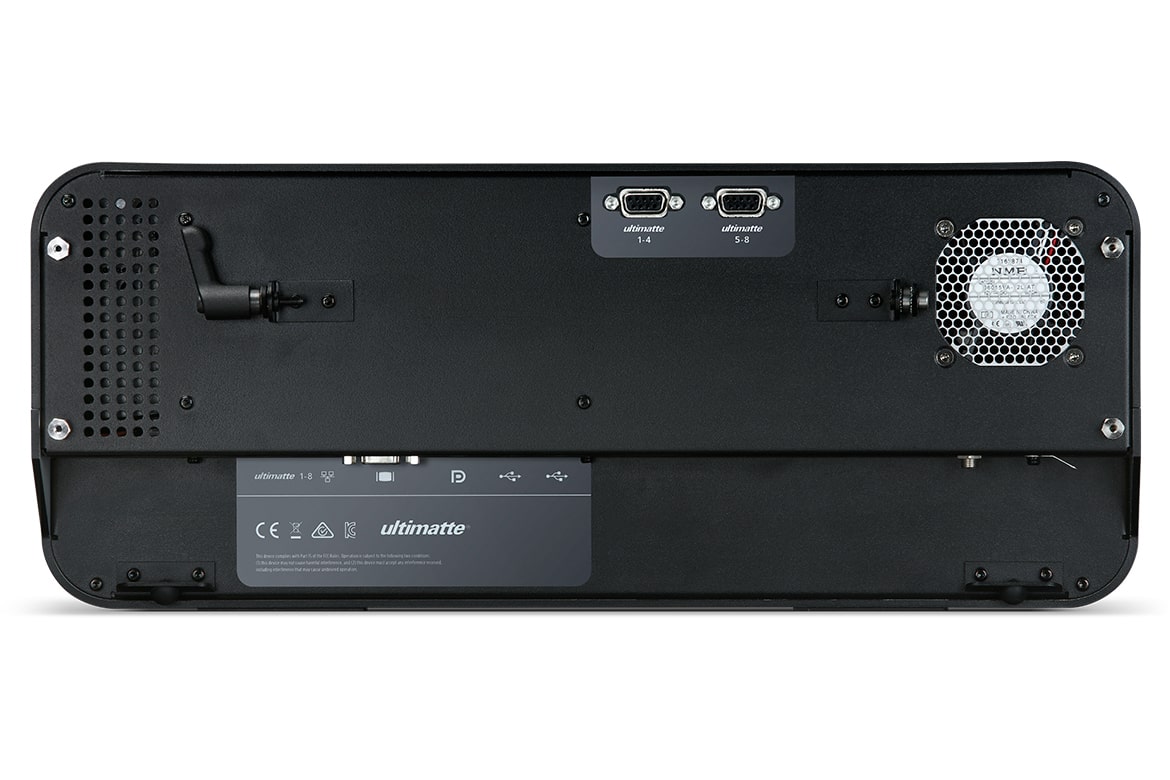

| Connections | |
| Software Updates | 2 x USB 2.0 and 1 x USB 3.0 for firmware updates. |
| SVGA Output | SVGA output allows for graphics to be viewed on an external VGA monitor. |
| Ethernet | 2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12. |
| RS-422 | 2 x for controlling Ultimatte 11. |
| Product Specifics | |
| Rotary Knobs | 8 x rotary knobs for adjusting parameters. |
| Unit ID Buttons | 8 x buttons. Illuminated blue for active. |
| Unit ID LED Indicators | Illuminated green for on line and red for on air. |
| Alt + Quick Load/Save Buttons | Alt button plus 5 buttons for saving files into volatile RAM. |
| Quick Load/Save Buttons | 5 x buttons for loading files stored in volatile RAM. |
| File Clear Button | 1 x button for One Touch Keying. |
| Alt + File Clear | Alt button plus file clear button for One Touch Keying using some user defined presets. |
| Customizable Menus | 4 x menus for building your own menu with your most used controls. |
| LED Control | User adjustable brightness control for LEDs. |
| Fan Speed Control | User adjustable. |
| Software | |
| Software Updates | Software updates via USB to load Smart Remote utility. |
| Control | |
| Touchscreen | 10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus. |
| Power Requirements | |
| Power Supply | 2 x Internal 100-240V AC. |
| Power Supply | 24W |
| Physical Installation | |

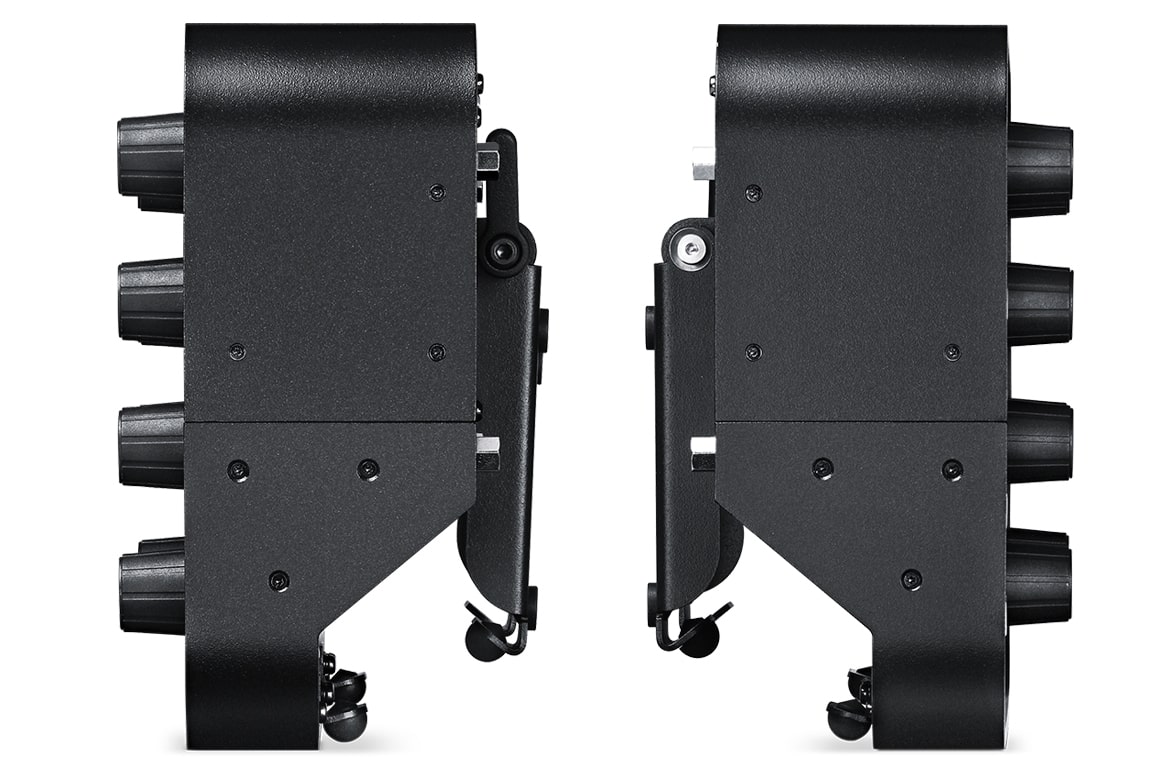

| Physical Installation: | Adjustable desk mounting option. |
| Physical Specifications | |
| Width | 17 in |
| Height | 6.9 in |
| Depth | 4.1 in |
| Weight | 9.26 lb |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Windows 10, 64-bit.
Power Requirements
- Power Supply
100 - 240V AC. - Power Usage
24W
