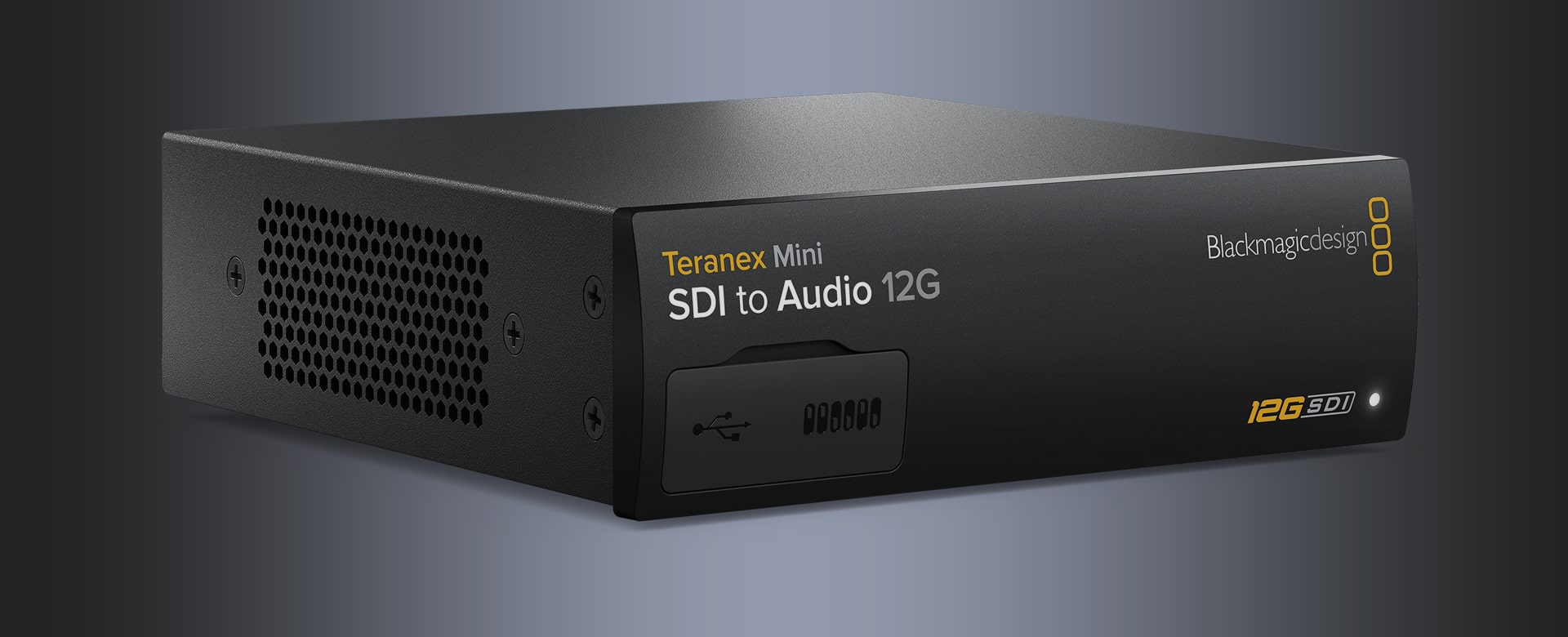

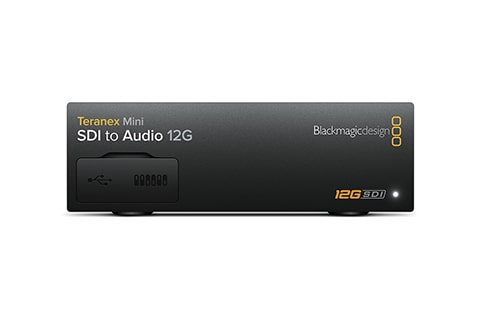

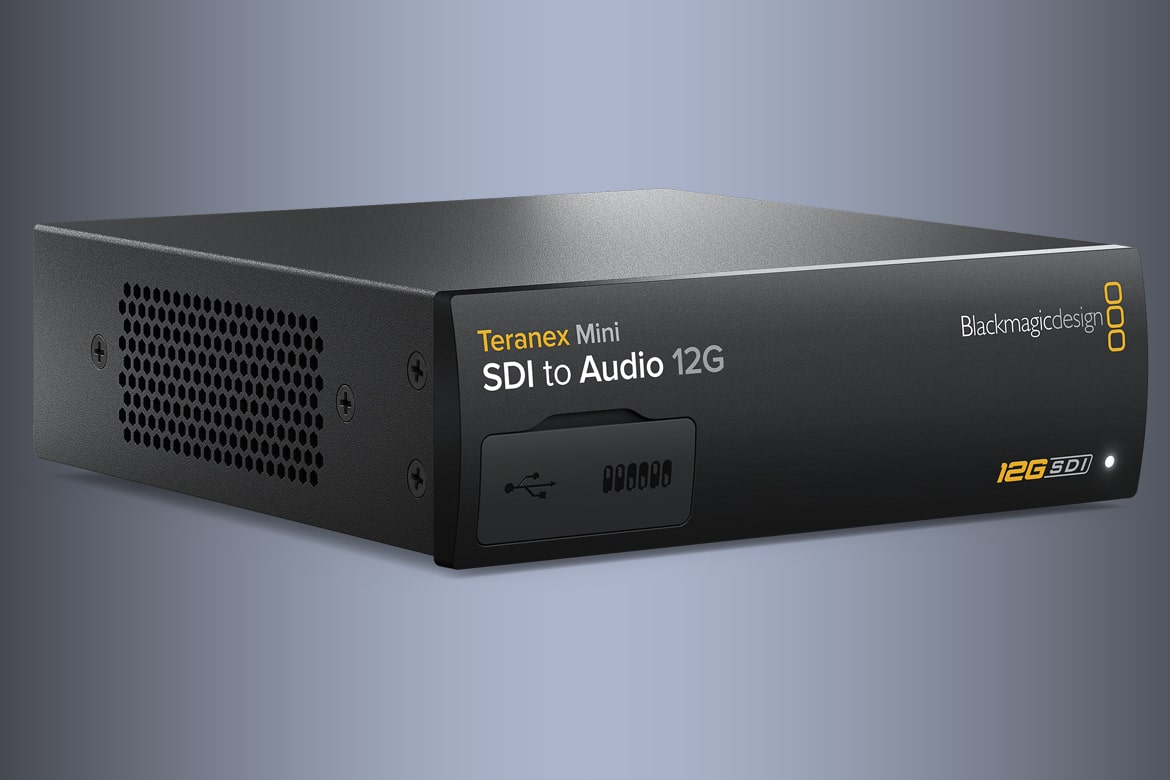

Product Highlights
- Advanced High-Data Rate De-Embedder
- De-Embed Audio from up to 4K SDI Signals
- Output via XLR, AES/EBU, RCA, or S/PDIF
- 12G-SDI Input and Output
- Supports up to Full 4K DCI 4096x2160p
- XLR Connections Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- 3 Units 1U Rack-Mountable in 19" Rack
- Overview
- Tech Specs
Add front panel controls to your Teranex Mini models to adjust settings and to turn features on and off.
De-embed audio from any SD, HD or Ultra HD SDI video connection and output 2 channels of analog audio to balanced XLR, optical or HiFi RCA, or output up to 4 channels of AES/EBU digital audio. Perfect for converting and outputting SDI audio to a massive range of audio equipment such as audio mixers, iPods, analog broadcast decks, audio monitors and more.

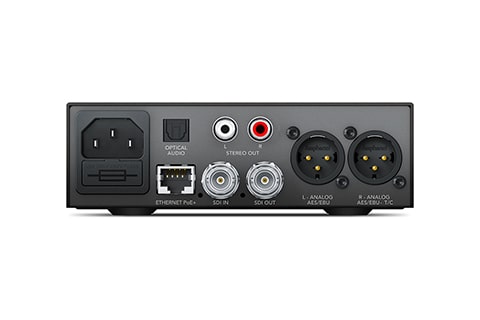

Connections | |
SDI Video Input | 1 x 12G-SDI SD/HD/2K/4K auto switching. |
SDI Video Output | 1 x 12G-SDI loop output. |
Analog Audio Outputs | 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output. |
Digital Audio Outputs | 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output. |
Embedded Audio Support | 16 channels. |
Optical Audio Output | S/PDIF Signal with TOSLINK Connector. |
Multi Rate Support | Automatic switching between SD/HD/2K and 4K. |
Updates and Configuration | USB or Ethernet. |
Re-Clocking | Yes |
Standards | |
SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
2K Format Support | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
4K Video Standards | 4K DCI 23.98p,, 4K DCI 24p 4K DCI 25p |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10 |
SDI Video Rates | SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI. |
SDI Video Sampling | 4:2:2 and 4:4:4. |
SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
SDI Color Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K. |
SDI Color Space | REC 601, REC 709 |
Software Control | Mac™ and Windows™ software upgrade via USB and Ethernet. |
Internal Software Upgrade | Via included updater application. |
Setting Control | |
Basic Settings Control | Mini Switches, USB and Ethernet via free software utility |
Optional Front Panel Control | Front mounted Smart Panel with LCD, rotary knob and six settings buttons |
Physical Specifications | |
Width | 5.51 in |
Height | 1.75 in |
Depth | 6.69 in |
Weight | 1.33 lb |
Environmental Specifications | |
Operating Temperature | 0° to 40° C (32° to 104° F) |
Storage Temperature | -20° to 60° C (-4° to 140° F) |
Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input. - Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet). - Power Consumption
16 Watts - Operational Voltage Range
90 - 240V AC
