Product Highlights
- Advanced High-Data Rate Signal Converter
- Supports Up to 4K DCI 4096x2160p Signals
- Two Independent 12G-SDI Outputs
- Run 4096x2160p 70 ft Using 6G-SDI Cables
- XLR Connections Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- 3 Units 1U Rack-Mountable in 19" Rack
- Manage Numerous Units from a Mac or PC
- Overview
- Tech Specs
Add front panel controls to your Teranex Mini models to adjust settings and to turn features on and off.

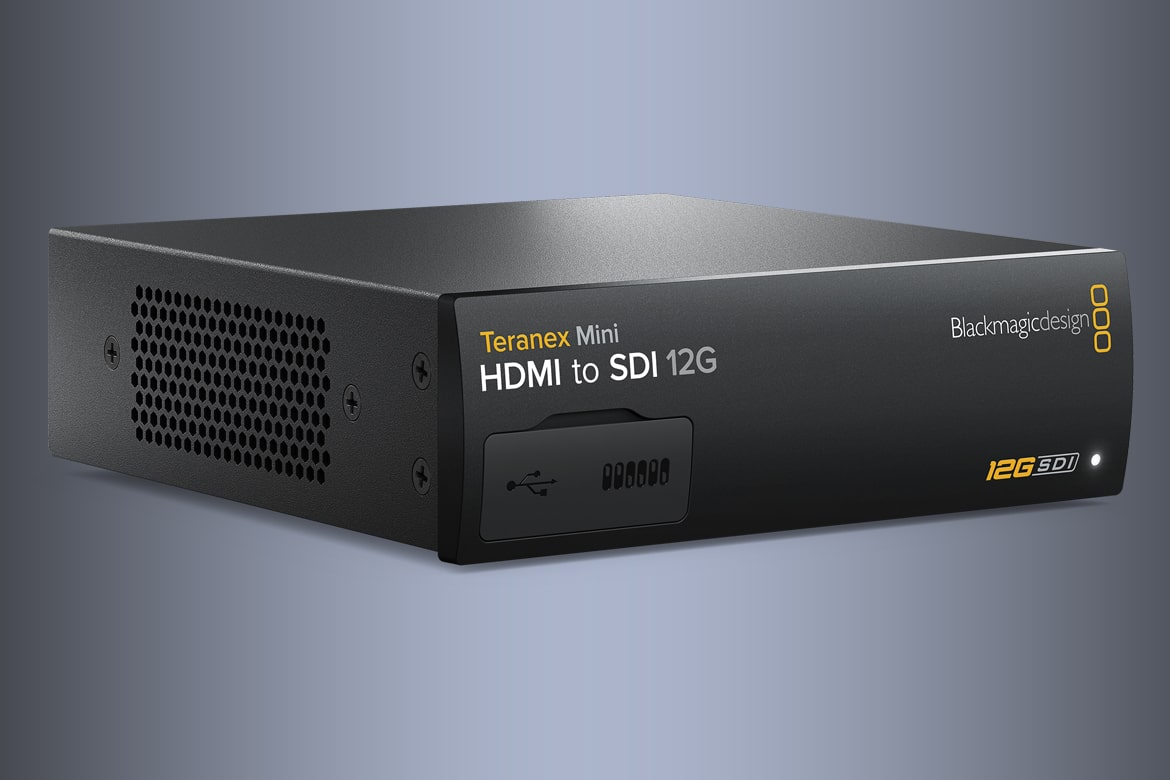

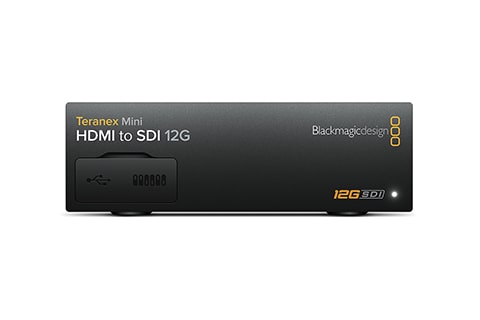

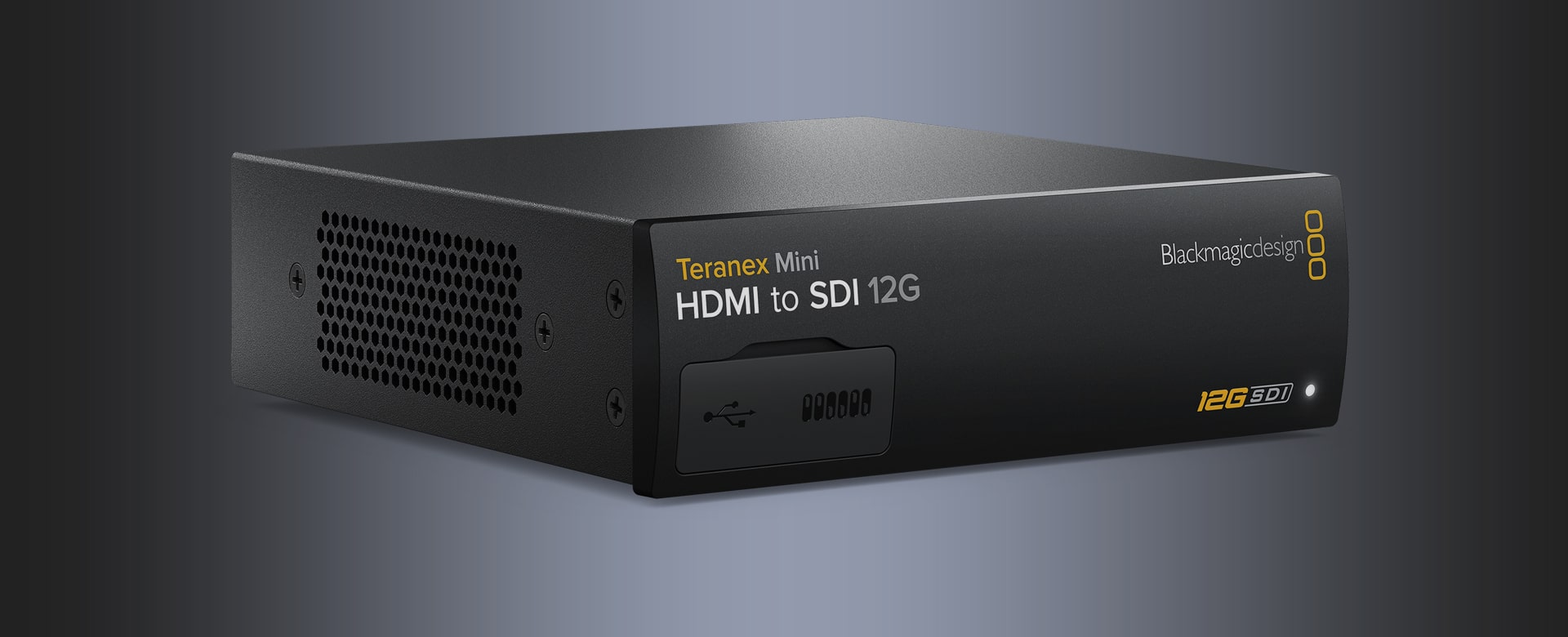

Convert from HDMI to 12G-SDI. Works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. Embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections.

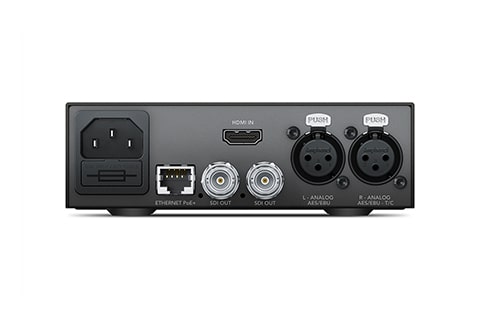

| Connections | |
| SDI Video Outputs | 2 x 12G SDI outputs. Automatically matches the SD, HD and 12G-SDI HDMI video input. |
| HDMI Video Inputs | 1 x HDMI 2.0 type A. |
| Analog Audio Inputs | 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input. |
| Digital Audio Inputs | 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input. |
| Embedded Audio Support | 16 channels. |
| Multi Rate Support | Automatic switching between SD/HD/2K and 4K. |
| Updates and Configuration | USB or Ethernet. |
| Re-Clocking | Yes |
| SDI Output Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25 , 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10 |
| SDI Video Rates | SDI video connections are auto switching between standard definition SDI, high definition 3G-SDI, 6G-SDI, and 12G-SDI. |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| HDMI Input Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 1080p23.98, 1080p24, 1080p25 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| HDMI Color Space | REC 601, REC 709 |
| HDMI Color Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K. |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Format Conversion | |
| Format Conversion | HD up and down conversion |
| Software | |
| Software Control | Mac™ and Windows™ software upgrade via USB and Ethernet. |
| Internal Software Upgrade | Via included updater application. |
| Setting Control | |
| Basic Settings Control | Mini Switches, USB and Ethernet via free software utility. |
| Optional Front Panel Control | Front mounted Smart Panel with LCD, rotary knob and six settings buttons. |
| Physical Specifications | |
| Width | 5.51 in |
| Height | 1.75 in |
| Depth | 6.69 in |
| Weight | 1.28 lb |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input. - Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet). - Power Consumption
16 Watts - Operational Voltage Range
90 - 240V AC
