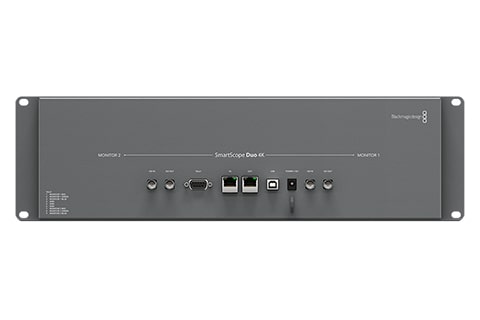

SmartScope Duo 4K 2
Dual 8" 3 RU SDI/HD-SDI/3G-SDI/6G-SDI monitoring with built in scopes for technical waveform monitoring!
Product Highlights
- Supports SD/HD/3G/6G-SDI
- Auto Format Sensing & Selection
- 1 x Loop-Through SDI I/O per Monitor
- Select Video, Waveform, Vectorscope
- RGB Parade, YUV Parade, Histogram
- Audio Phase & Levels
- Software Control via Ethernet
- Industry Compatible Tally System
- 3 Rack Unit Size for Mounting
- Auto Orientation Sensing & Image Flip
- Overview
- Tech Specs

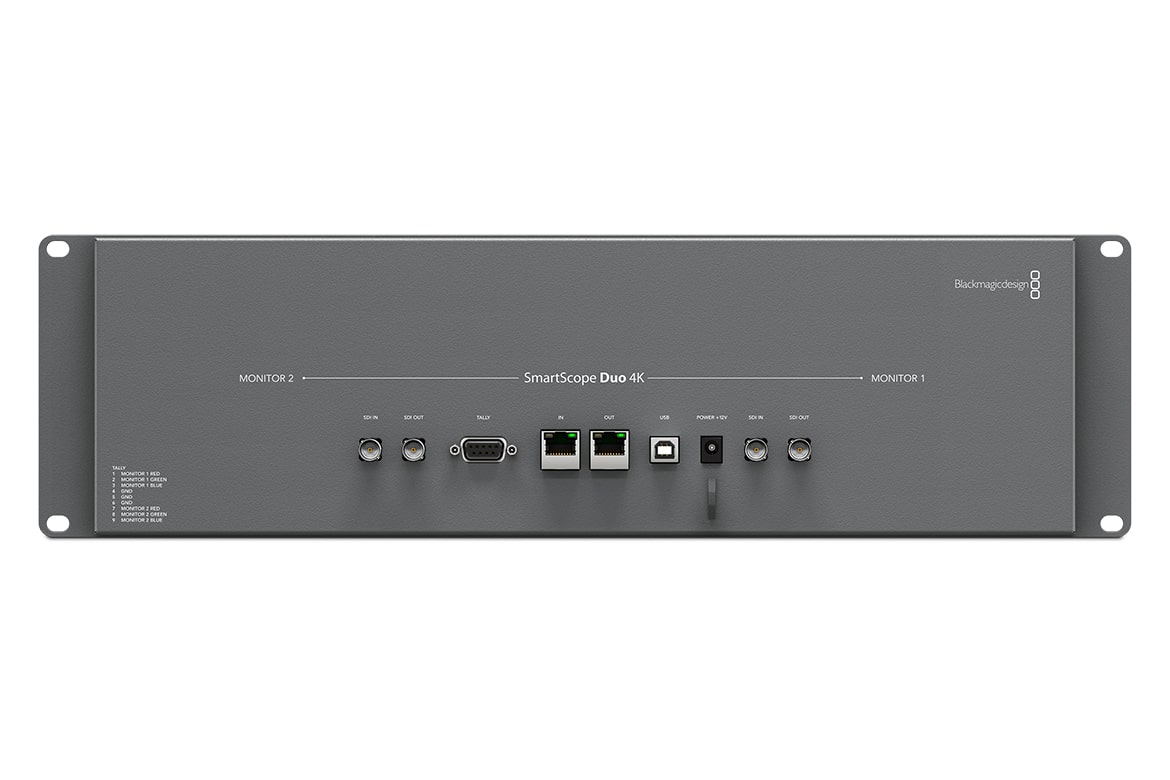

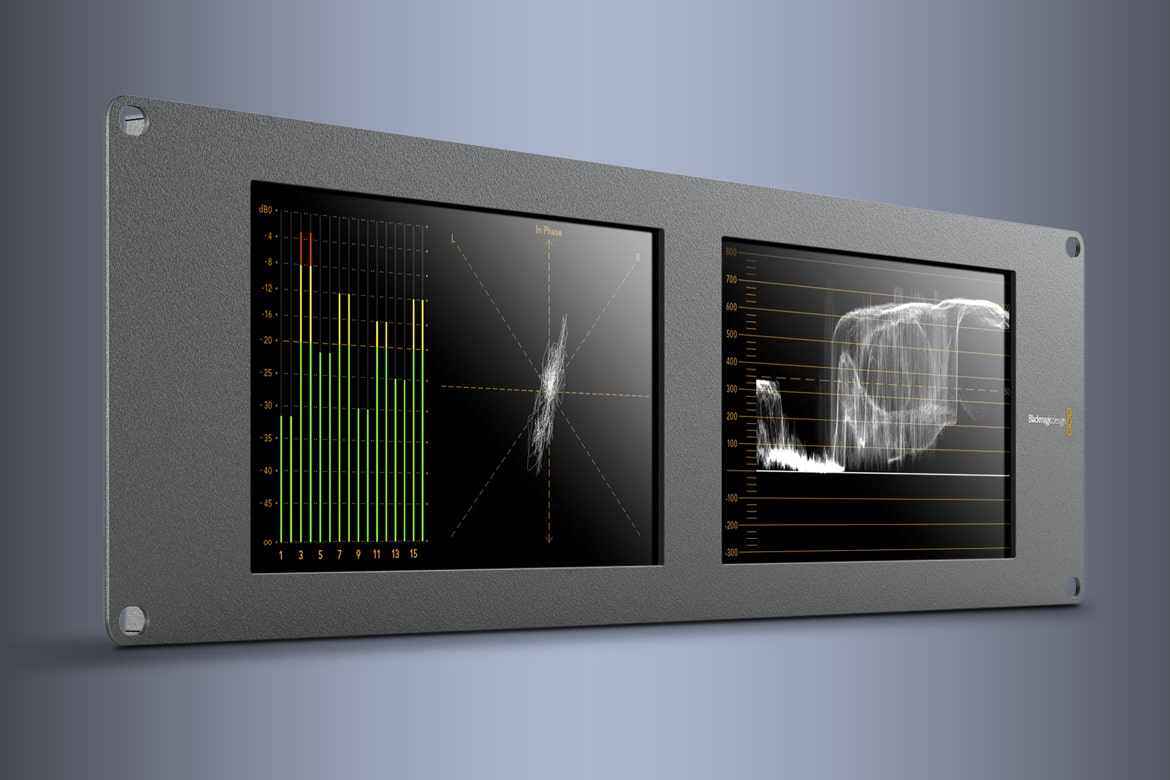

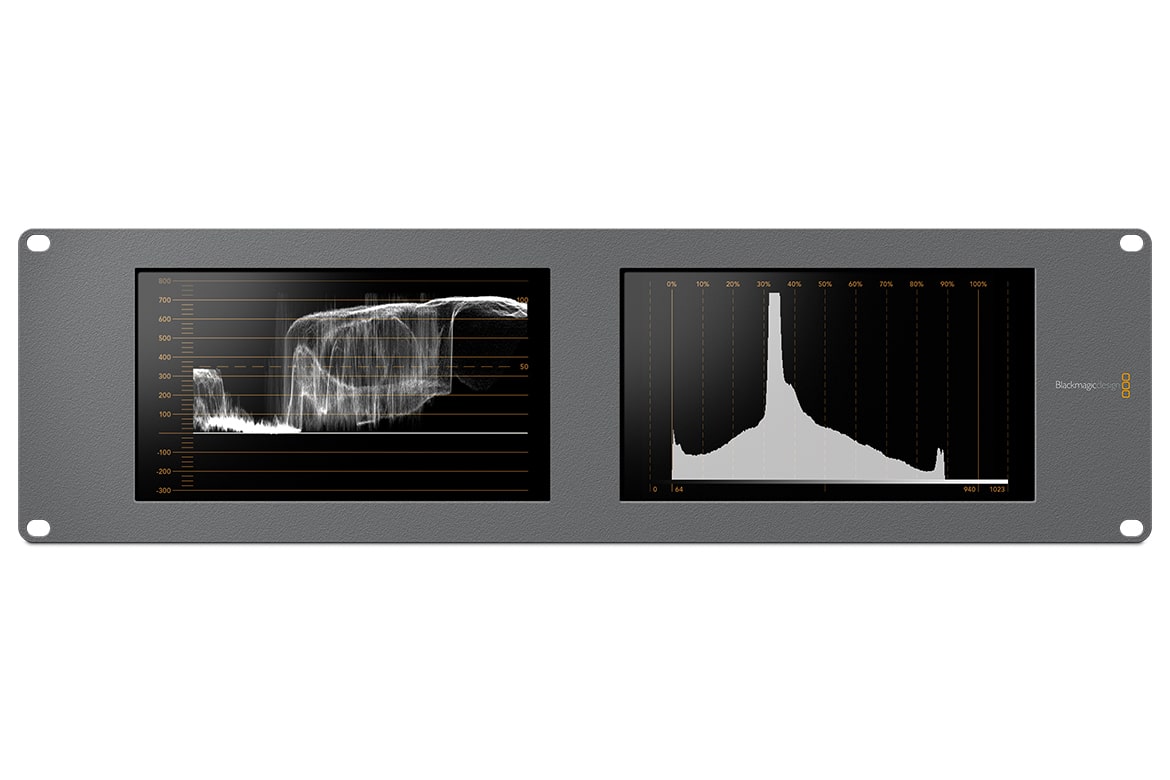

SmartScope Duo 4K 2 looks like a SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays. Each monitor is independent so can display any combination of scope or picture view!

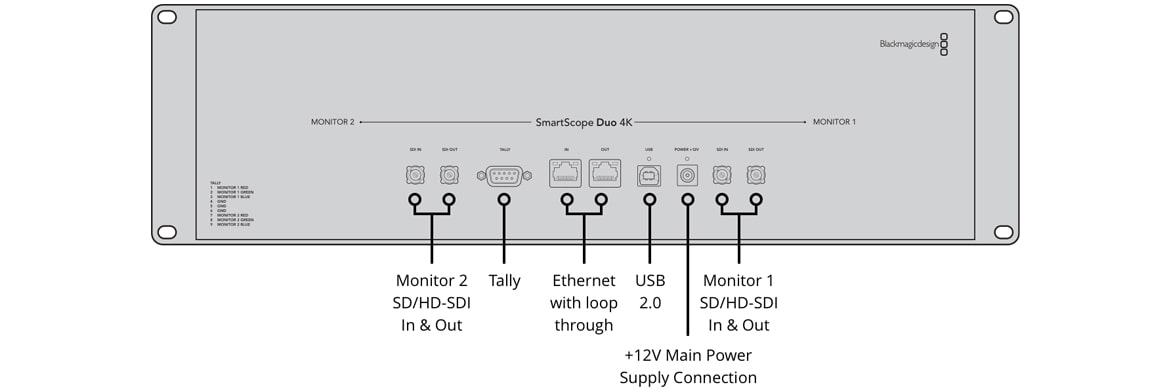

| Connections | |
| SDI Video Input | Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output. |
| SDI Video Output | 1 x 10 bit loop through SD, HD and 6G-SDI switchable. |
| SDI Audio Input | 16 channel embedded in SD and HD. |
| SDI Audio Output | 16 channel embedded in SD and HD. |
| Multi Rate Support | Standard definition SDI, high definition SDI and 6G-SDI. |
| Tally | 9-pin D connector |
| Standards | |
| SD Format Support | 525i29.97 NTSC, 625i25 PAL |
| HD Format Support | 720p50, 59.94, 60 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF23.98, 24, 25, 29.97, 30 1080i50, 59.94, 60 |
| 2K Format Support | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Format Support | 2160p23.98, 24, 25, 29.97, 30 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M. |
| Audio Sampling | Television sample rate of 48KHz |
| Video Sampling | 4:2:2 and 4:4:4 |
| Color Precision | 8-bit |
| Color Space | YUV and RGB |
| Computer Interface | USB 2.0 for software updates and Ethernet for configuration |
| Colorspace Conversion | Hardware based real time. |
| Scopes | |
| Scopes | Luminance Waveform, Vectorscope, RGB Parade, YUV Parade, Histogram, Audio phase and level. |
| Software | |
| Software Included | Configuration utility for MAC and Windows. |
| Internal Software Upgrade | Via included firmware updater software. |
| Physical Installation | 3RU |
| Physical Specifications | |
| Width | 19 in |
| Depth | 1.26 in |
| Height | 5.24 in |
| Weight | 3.37 lb |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
12V universal power supply included with international socket adapters for all countries. - Power Consumption
< 20 Watts - Operational Voltage Range
12V - 15V
