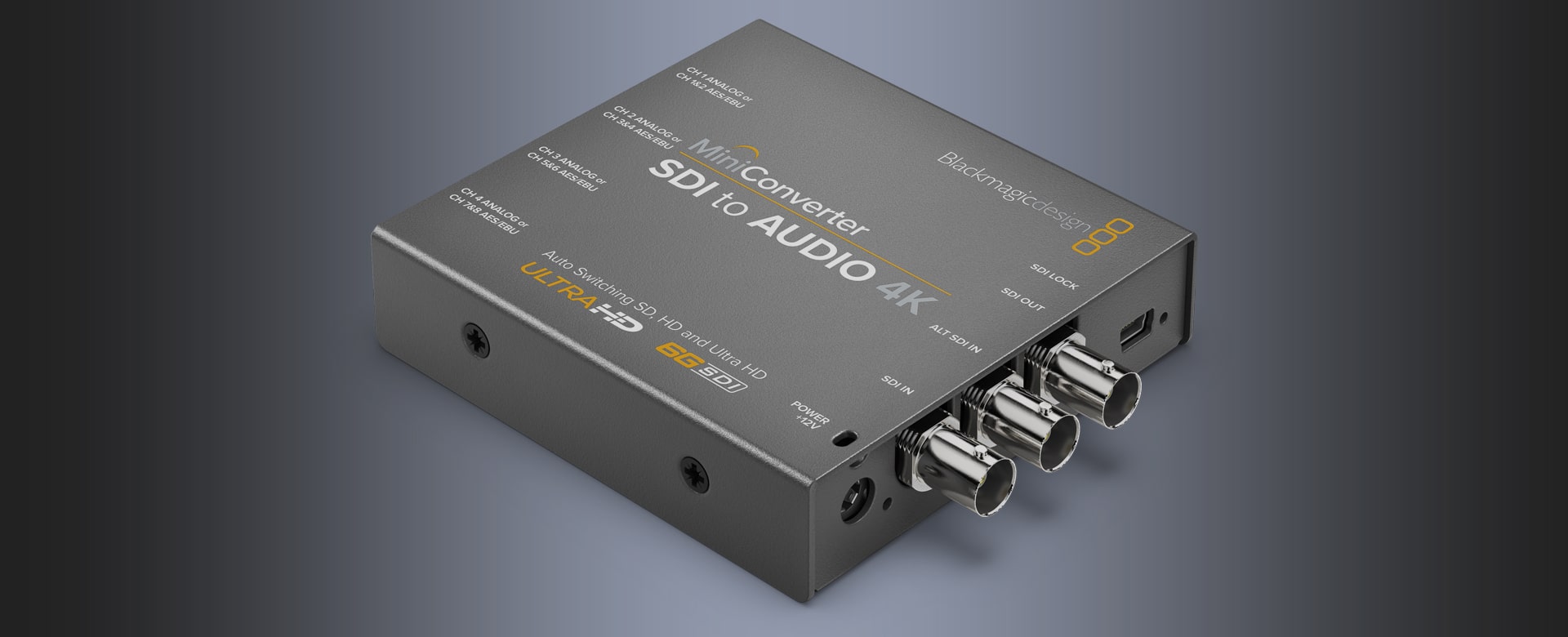

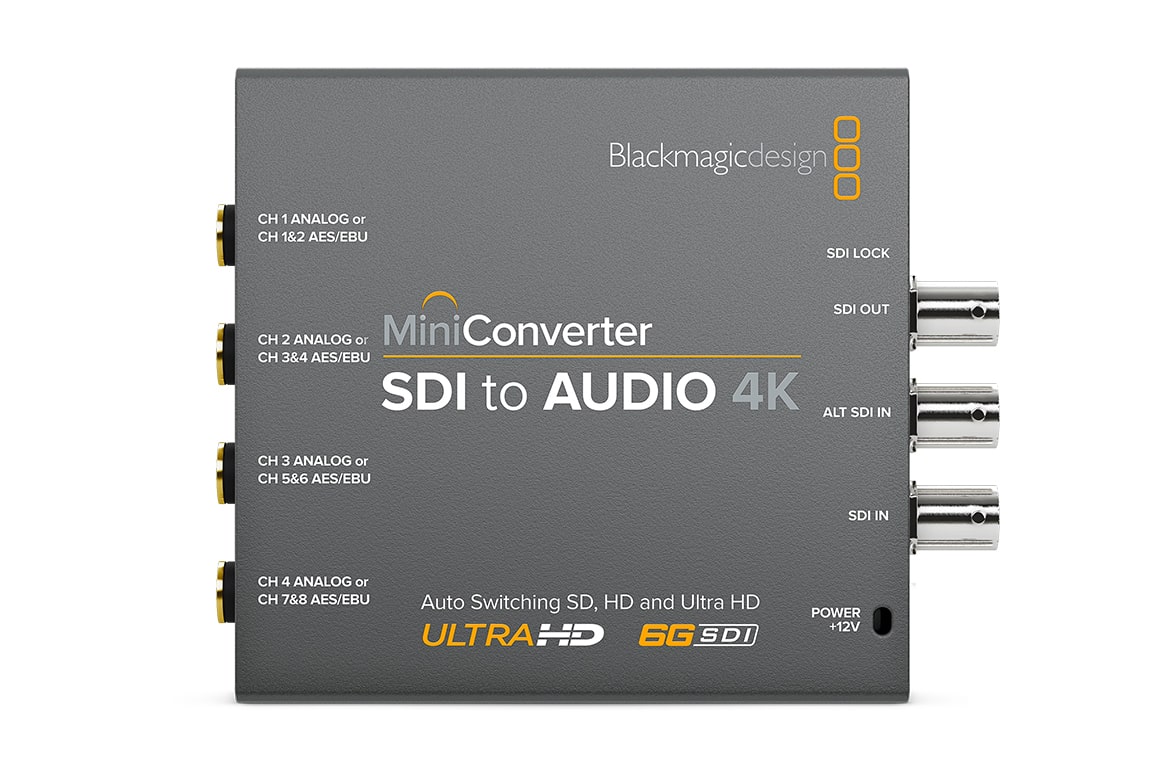

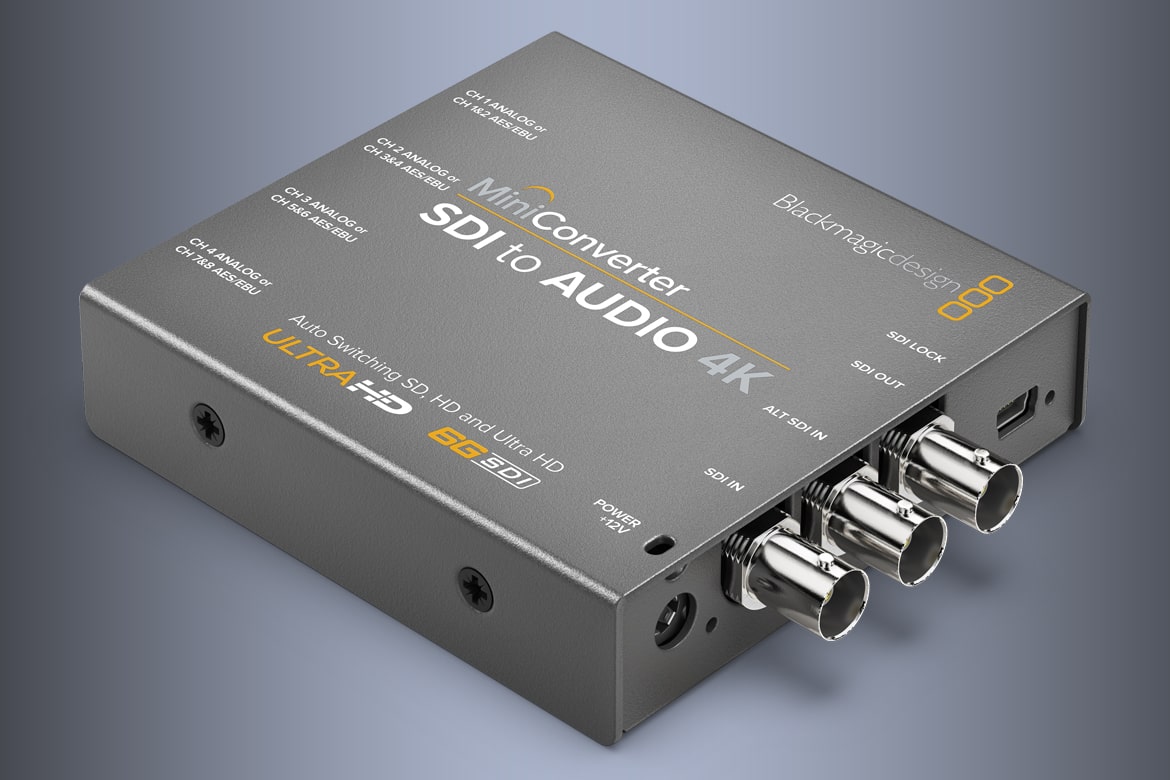

Mini Converter SDI to Audio 4K
SD/HD/3G-SDI audio de embedder to 8 ch AES/EBU or 4 ch analog audio!
Product Highlights
- De-Embeds Audio from SDI Signal
- Single Link 6G-SDI Input
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- Redundant SDI Input
- 4x 1/4" Audio Output Jacks
- 4 Analog or 8 AES/EBU Audio Channels
- 24-Bit, 48 kHz Audio

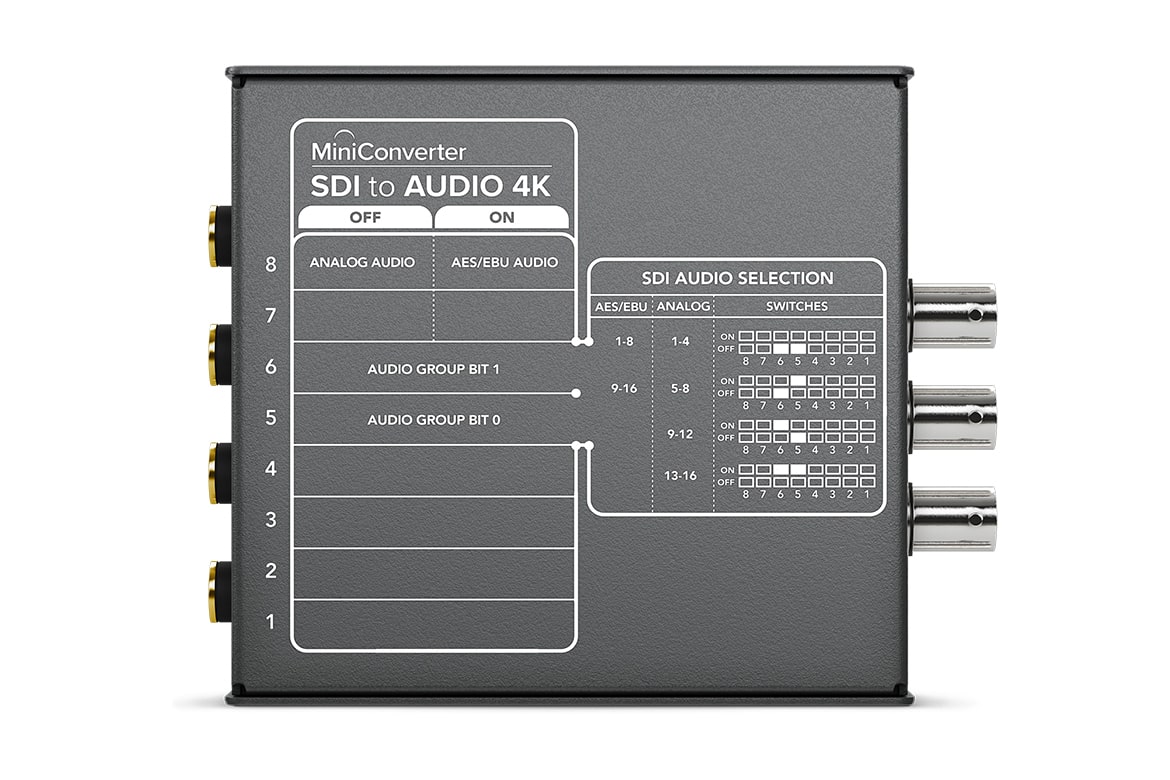

- Control via DIP Switches or Software
- 12V Universal Power Supply Included
- Overview
- Tech Specs
Mini Converter SDI to Audio 4K includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more!

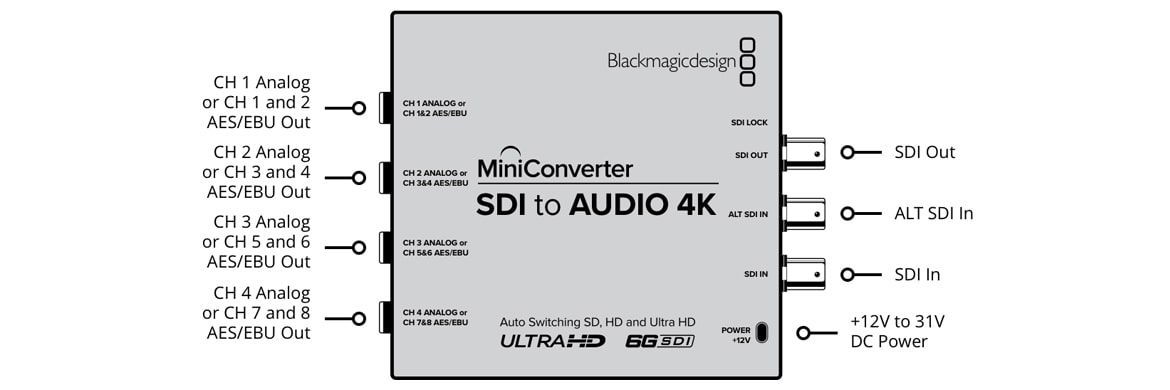

| Connections | |
| SDI Video Input | 1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. |
| SDI Video Outputs | 1 x SDI Video Loop Output. |
| SDI Redundant Inputs | Automatically switches over if main SDI input is lost. |
| Analog Audio Outputs | 4 channels of professional balanced analog audio with standard 1/4 inch jack connections. |
| Digital Audio Outputs | 8 channels of professional balanced digital with standard 1/4 inch jack connections. |
| Multi Rate Support | Auto detection SD, HD or 6G‑SDI. |
| Updates and Configuration | USB |
| Reclocking | Yes |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, SMPTE ST-2036, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI Video Rates | SDI video connections are switchable between standard definition and high definition. |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision | 4:2:2, 4:4:4 |
| SDI Color Space | YUV, RGB |
| SDI Auto Switching | Automatically selects between SD, HD, 3G and 6G‑SDI. |
| Software | |
| Software Control | Mac™ and Windows™ software upgrade via USB. |
| Internal Software Upgrade | Via included updater application. |
| Settings Control | |
| Settings Control | Mini Switches or USB software. |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Physical Specifications | |
| Width | 4.52 in |
| Depth | 3.63 in |
| Height | 0.90 in |
| Weight | 7.61 oz |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point. - Power Consumption
5.52 Watts - Operational Voltage Range
12V ‑ 31V DC
