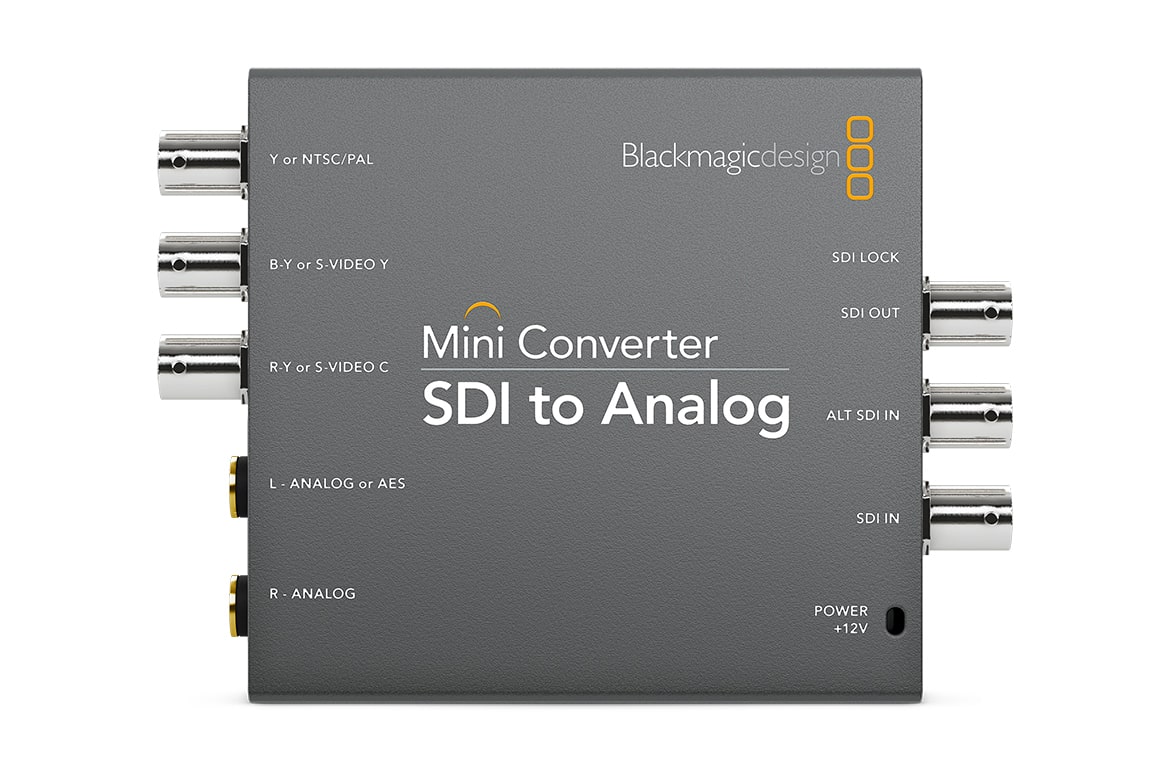

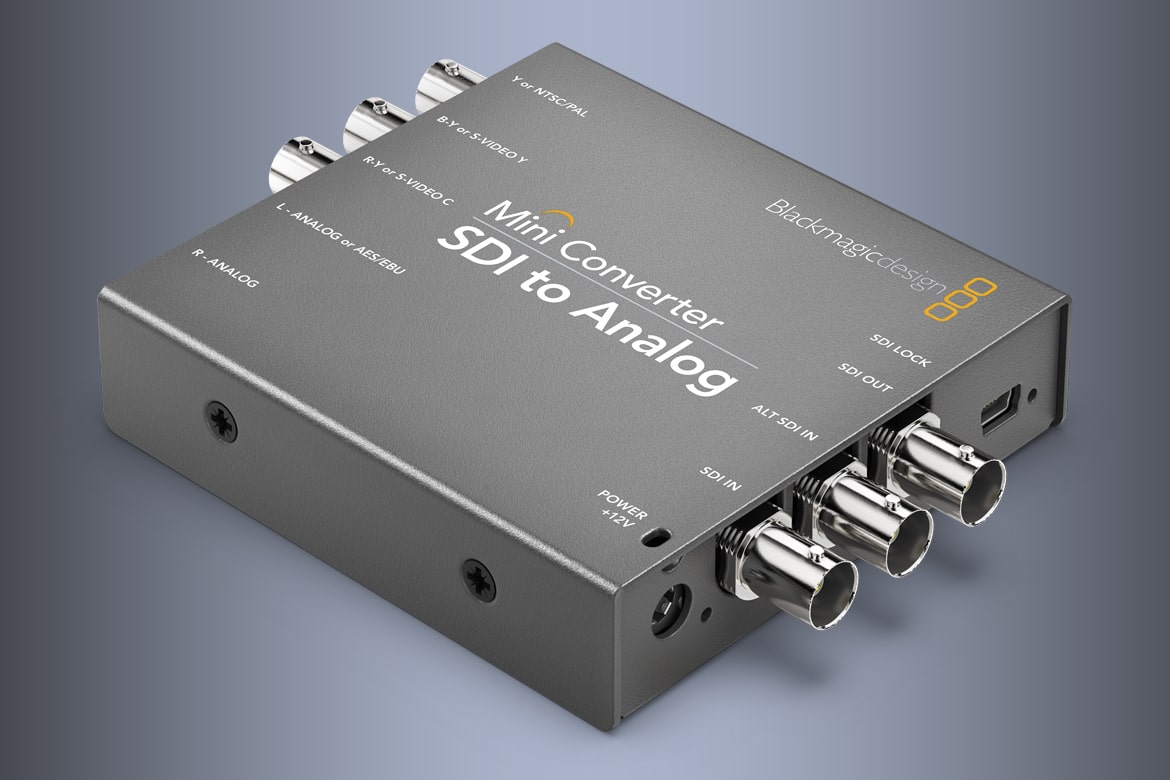

Mini Converter SDI to Analog
Convert SDI in SD and HD to analog video with audio!
Product Highlights
- SDI to Analog Conversion
- Overview
- Tech Specs
The perfect way to convert from SD and HD-SDI to analog component, s-video or NTSC/PAL composite. Mini Converter SDI to analog supports all SD and HD input formats up to 1080p30 and includes a down converter for when you need to convert from HD to standard definition analog formats such as s-video and composite. Audio can be de-embedded to balanced analog or AES/EBU. Mini Converter SDI to Analog is ideal for converting to older analog equipment when you don’t need the extra cost of the 6G-SDI 4K model.

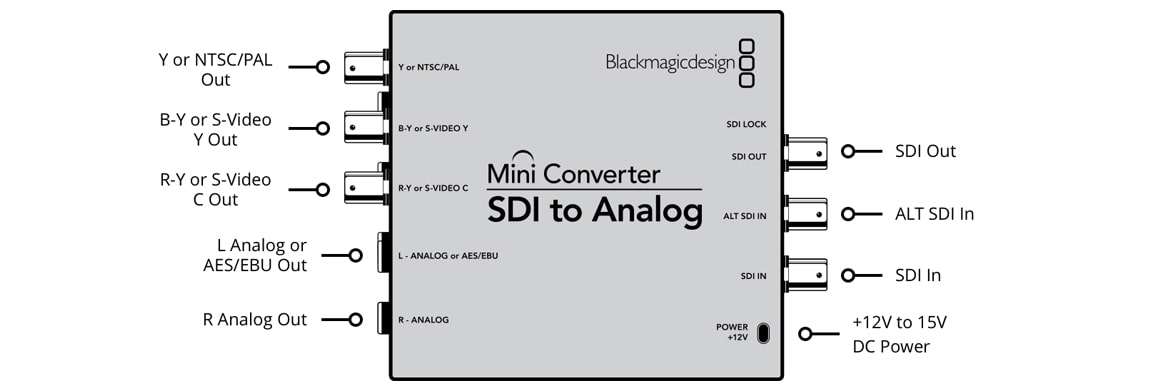

| Connections | |
| SDI Video Input | 1 x SD, HD or 1.5G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. |
| SDI Video Output | 1 x SDI Loop Output. |
| SDI Rates | 270Mb, 1.5G |
| Analog Video Outputs | NTSC, PAL, S‑Video and component SD/HD from 1.5G‑SDI input. |
| Analog Audio Outputs | 2 channels of balanced AES/EBU audio. |
| SDI Redundant Input | Automatically switches over if main SDI input is lost. |
| Multi Rate Support | Auto detection of SD, HD or 1.5G‑SDI. |
| Updates and Configuration | USB |
| Reclocking | Yes |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, ITU‑R BT.656 and ITU‑R BT.601. |
| SDI Video Rates | SDI video connections are switchable between SD and HD. |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Auto detection of SD, HD or 3G‑SDI. |
| SDI Auto Switching | Auto detection of SD, HD or 3G-SDI. |
| Analog Video Standards | 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60 |
| Analog Color Space | YUV |
| Analog Color Precision | 4:2:2 |
| Format Conversion | |
| Format Conversion | HD to SD down converter. |
| Software | |
| Software Control | Mac™ and Windows™ software upgrade via USB. |
| Internal Software Upgrade | Via included updater application. |
| Settings Control | |

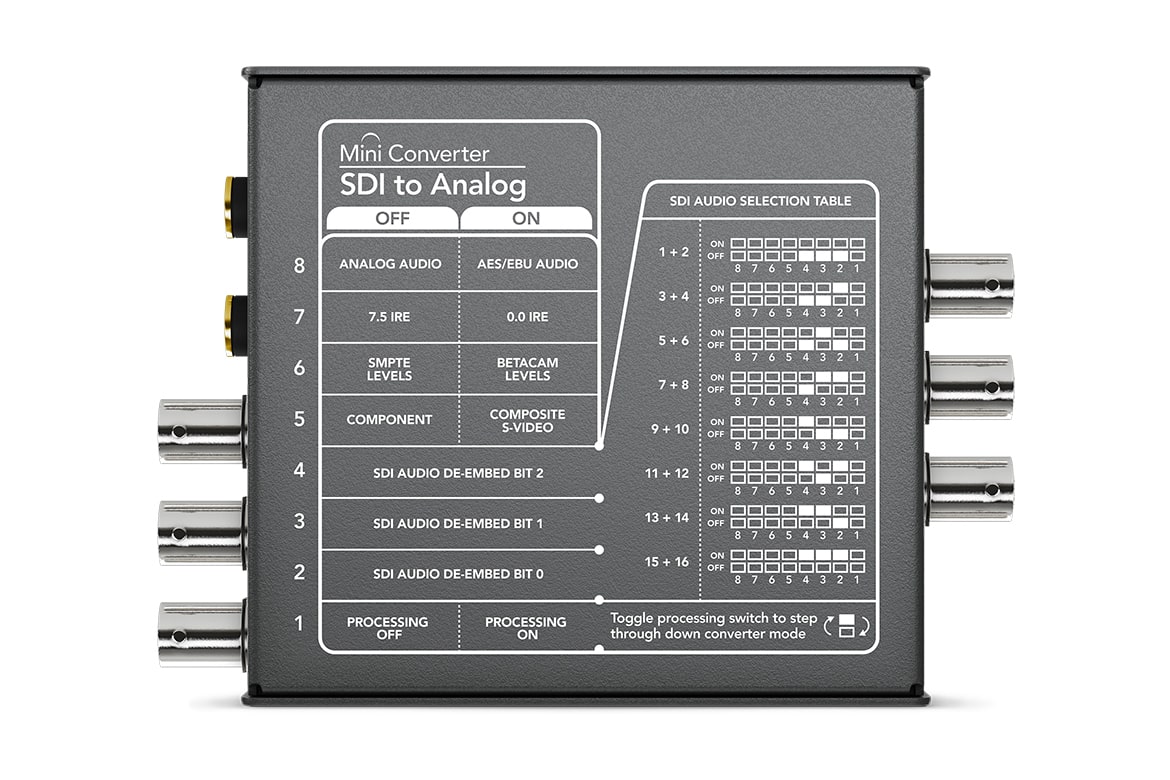

| Settings Control | Mini Switches or USB software. |
| Physical Specifications | |
| Width | 4.84 in |
| Height | 0.90 in |
| Depth | 3.63 in |
| Preview Transition | 8.04 oz |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point. - Power Consumption
8.04 Watts - Operational Voltage Range
12 ‑ 15V DC
