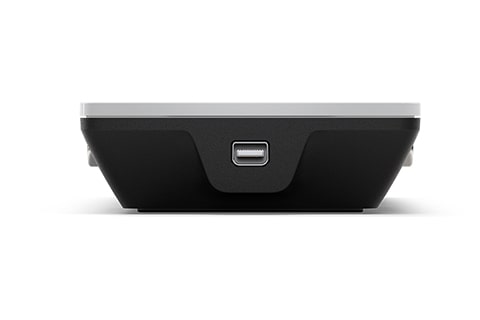

Intensity Shuttle for Thunderbolt™
Thunderbolt™ capture and playback in HDMI and analog.
Product Highlights
- Uncompressed Data Transfer
- Up/Down Resolution Conversion
- HDMI Monitoring for Color Correction
- Bidirectional Thunderbolt Data Transfer
- HDMI and Analog Video and Audio Ports
- SD and HD Video In Full 10-Bit Quality
- 2 Ch. 24 Bit RCA / 8 Ch. HDMI Audio
- Inputs On 1 Side/Outputs On Other
- M.E. Software Solution Included
- Also Records Video Games
- Overview
- Tech Specs
Intensity Shuttle is now available with incredibly fast Thunderbolt™ technology. Capture and playback the highest quality SD and HD video in full 10-bit quality with HDMI, analog component, composite and S-Video connections. Intensity Shuttle’s innovative design is compact and portable, plus you can plug inline with your cables because input connections are on one side, and output connections on the other! Intensity Shuttle is powered over the Thunderbolt™ cable so you don’t need cumbersome power supplies. Intensity Shuttle uses the same high quality electronics as Blackmagic Design's high end capture and playback solutions.

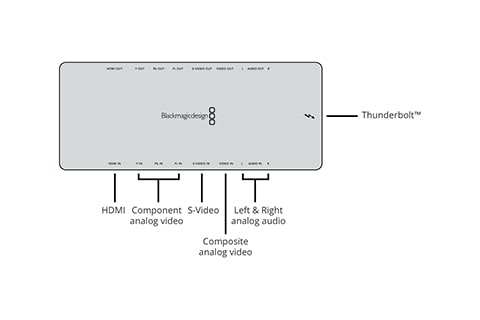

| Connections | |
| Analog Video Input | Independent connections for Component, Composite and S-Video. |
| Analog Video Output | Independent connections for Component, Composite and S-Video. |
| HDMI Video Input | 1 x HDMI type A connector. |
| HDMI Video Output | 1 x HDMI type A connector. |
| Analog Audio Input | 2 Channel RCA HiFi audio in 24-bit. |
| Analog Audio Output | 2 Channel RCA HiFi audio in 24-bit. |
| HDMI Audio Input | 8 Channels. |
| HDMI Audio Output | 8 Channels. |
| SPDIF Audio Output | 2 Channel 24-bit. |
| Dual Rate Support | HDMI and Analog Component switches between high definition and standard definition. |
Computer Interface
|
Thunderbolt™ |
| Standards | |
| SD Format Support | 625i50 PAL, 525i59.94 NTSC, 625p50 PAL,525p59.94 NTSC |
| HD Format Support Upgrade | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 1080i50, 1080i59.94, 1080i60 |
| HDMI Video Sampling | 4:2:2 YUV |
| HDMI Audio Sampling | Television standard sample rate of 48kHz and 24-bit. |
| HDMI Color Space | REC 601, REC 709 |
| HDMI Color Precision | 10-bit |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Processing | |
| Colorspace Conversion | Hardware based real time. |
| HD Down Conversion | Software based down conversion during video playback. |
| HD Up Conversion | Real time standard definition to 1080HD and 720HD during video capture. |
| Real Time Effects | Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. |
| Software | |
| Software Included | DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS X and Windows. Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start, or via updater software. |
| Physical Installation | |
| Physical Installation | Requires a computer with Thunderbolt™. |
Operating Systems
- Mac 10.13 High Sierra,
Mac 10.14 Mojave or later. - Windows 7, 8.1 and 10, all 64-bit.
- Linux
Power Requirements
- Power Supply
Powered by Thunderbolt™ cable.
