OG4

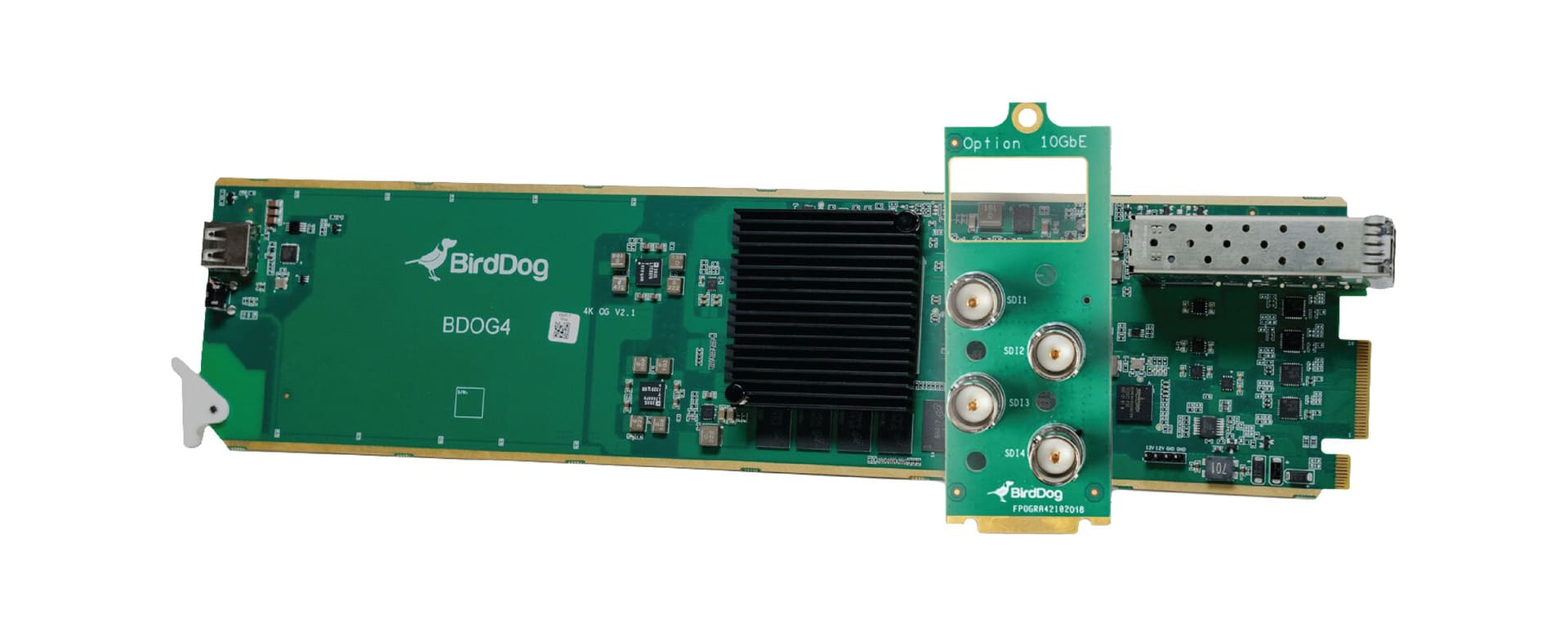

OG4. The World’s First NDI® openGear card.
OG4 features four independently configurable 12G SDI inputs and outputs. Full Dashboard support is included along with SFP+ port for 10GbE connectivity. A true OG.Product Highlights
- 4 x 12G-SDI Inputs/Outputs
- Independently Configurable Ports
- SFP+ Port
- Full NDI Encoding and Decoding
- Overview
- Tech Specs
openGear oGx Frame Compatible.
OG4 is fully compatible with the 4th generation of the openGear® platform, oGx. openGear is an open-architecture and modular 2RU rack frame system that allows for OG’s from various manufacturers to live together in the same frame in total harmony.
Professional Cooling. Professional Power.
openGear frames include integrated cooling fans to provide maximum cooling for all cards and can be configured with dual, redundant power supplies for maximum reliability and uptime.
Dashboard.
BirdDog OG4 offers full support for Dashboard, the freely available unified control software for MacOS, Windows, and Linux.

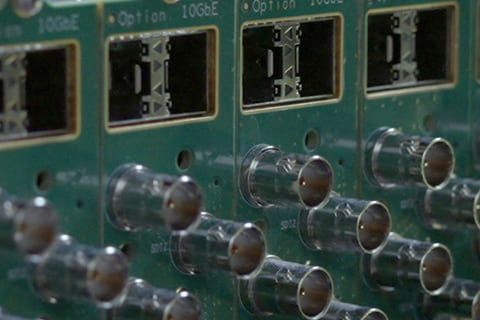

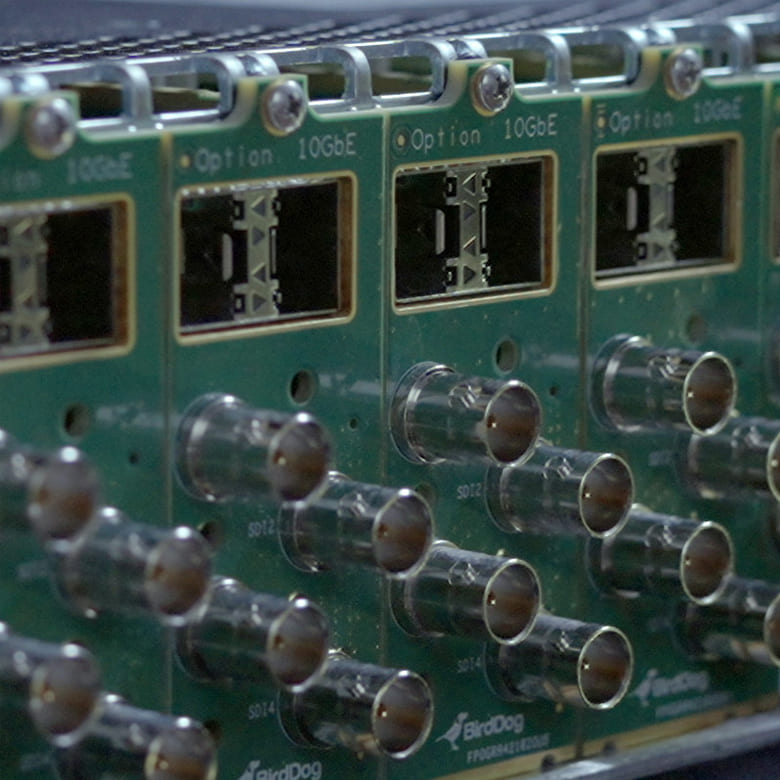

SFP+ for 10GbE & long range.
Industry standard SFP+ connection allows for short, medium, and long-range connections over fiber and supports 10GbE.
Encode & Decode up to 4Kp60.
With support for all resolutions up to 4Kp60, including all HD resolutions, Encoding and Decoding 4K Full NDI® has never been easier. OG4 supports up to 4x channels of 4Kp60 Encode or 2 channels of 4Kp60 Decode. Of course, OG4 supports 4 channels of 1080p60 decode.
Independent Channel Control.
Each channel has independent control of frame rates and resolutions so you can mix and match. Set channel 1 to 4Kp60 and channel 2 to 1080i50. Card must be set to Encode or Decode.
OPENGEAR FRAME SUPPORT | Requires oGx frame, the 4th generation of the openGear platform. |
SUPPORTED VIDEO FORMATS | UHD 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 HD 1920x1080i 50, 59.94, 60 HD 1280x720p 50, 59.94, 60 |
VIDEO I/O CONNECTIVITY | 12G SDI Selectable Input/Output* Full-size x 4 |
AUDIO INPUT | SDI 2-ch Per SDI connector |
AUDIO OUTPUT | SDI 2-ch Per SDI connector |
VIDEO CODEC SUPPORT | NDI (Full Bandwidth i-frame compression) Max. 4ch UHD 60p |
NETWORK STREAMING TRANSPORT SUPPORT | NDI Full NDI |
NETWORK CONNECTIVITY | OpenGEAR Network Port (Integrated in Chassis backplane) 1 x 1Gbps SFP+ Network Port 1 x 10Gbps optional module, Optical 10GbE |
CONTROL SUPPORT | System management and control On-device WebUI, Published RESTful API, Q-Sys plugin, Crestron, Zoom, openGear Dashboard control system Health monitoring On-device WebUI |
DIMENSIONS
- 33.5cm x 7.5cm x 2.4cm (Processor card only)
