4K BACKPACK
The Smallest 4K NDI® on the Planet
Product Highlights
- Ultracompact Form with HDMI 2.0 Input
- Supports up to UHD 4K30, 1080P60
- PoE, Sony L-Series & DC Power Options
- 15W DC Output to Power Monitor or Camera
- Overview
- Tech Specs

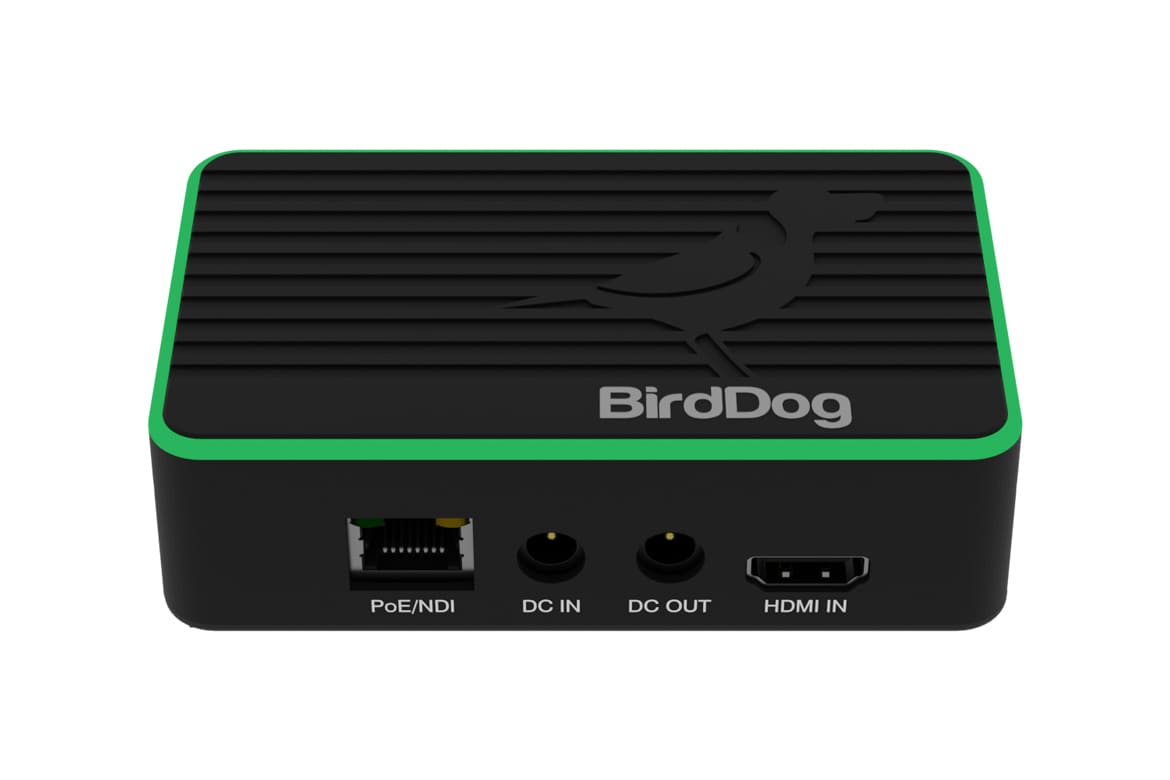

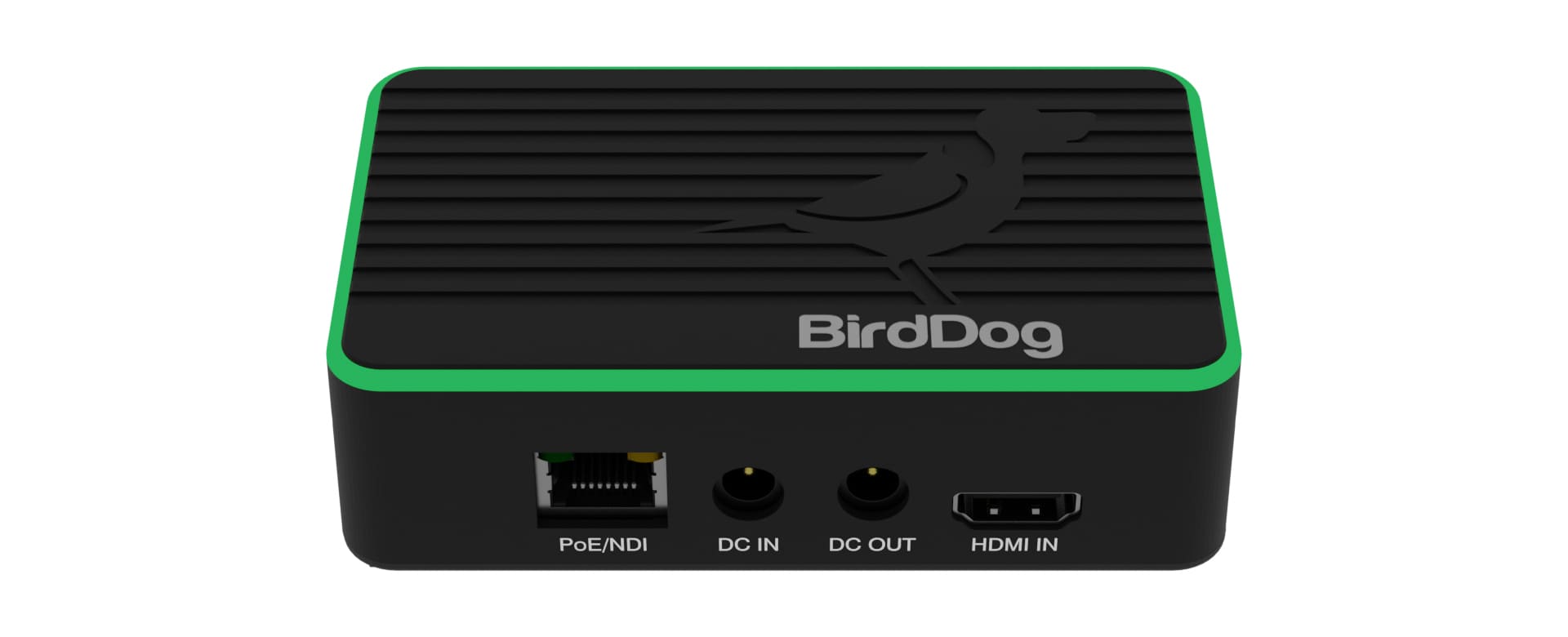

The Flex 4K BACKPACK HDMI Encoder from BirdDog is an ultracompact NDI interface for HDMI video sources. Connect your onboard monitor, camera, or other video source, and have it available instantly on your NDI-enabled network. The BirdDog BACKPACK supports up to UHD 4K30 and 1080p60 resolution video.
The versatile BACKPACK can be powered using a Sony L-Series-type battery, PoE, or a separately available 12V power supply. A 15W DC output port enables you to power select monitors and cameras from your BACKPACK power source. Tally information is displayed for both the talent and the operator and passed through to compatible equipment. Connect a separately available cable to the 2.5mm RS232 port for pass-through control of non-NDI PTZ cameras. Additional features include an adaptive bitrate, a cooling thermal design, a 3.5mm audio input, and a 3.5mm headphone output.
Upgrade Your Monitor
Use the BACKPACK to encode NDI, power your monitor, and record simultaneously
Ultracompact Form
The BACKPACK is slightly larger than a credit card and weighs just over five ounces
Single Cable Plus DC Power Out

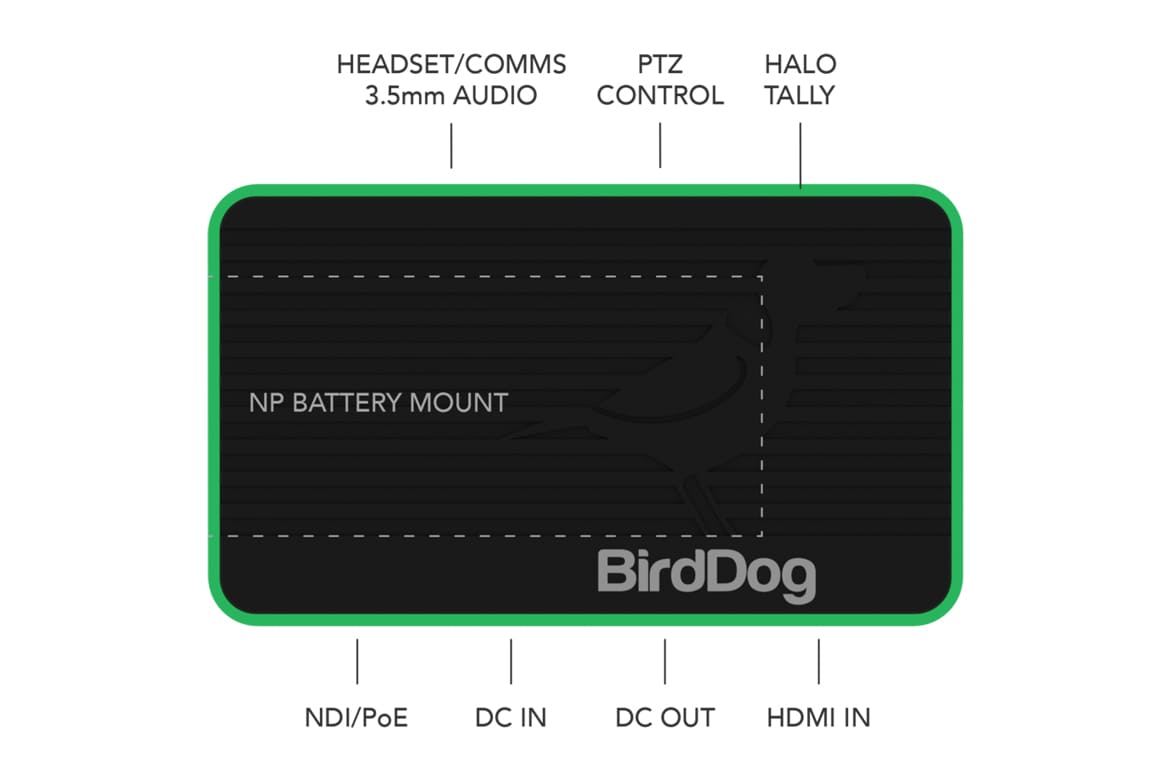

A single Ethernet port funnels NDI, Power, Video, Audio, Tally, and Audio Intercom while a DC output enables you to power select monitors and cameras
Flexible Power Options
Power the BACKPACK from the built-in Sony L-Series-type battery plate, using PoE, or via the DC input
Stay-Cool Design
A thermal design and quiet fans keep the BACKPACK cool even on the hottest days
Tally Support
A built-in tally display is available for viewing by both your talent and camera operator
PTZ Sidekick
Connect a PTZ control cable for PTZ pass-through control for your non-NDI PTZ camera
Adaptive Bit Rate
Select the bitrate that best fits your 4K or HD production
Software Tools
The BACKPACK includes free BirdDog Central Lite, Dashboard, and Comms Lite software
SUPPORTED VIDEO FORMAT | |
UHD 2160p | 25.00, 29.97, 30.00 |
HD 1080p | 25.00, 29.97, 30.00, 50.00, 59.94, 60.00 |
HD 1080i | 50.00, 59.94 |
HD 720p | 50.00, 59.94, 60.00 |
VIDEO I/O CONNECTIVITY | |
HDMI 2.0 Input | Yes |
AUDIO INPUT | |
HDMI | 2Ch, 48kHz |
3.5mm AUDIO | Microphone/line input |
AUDIO OUTPUT | |
3.5mm AUDIO | Stereo Headphone/line output |
VIDEO CODEC SUPPORT | |
NDI (Full bandwidth i-frame compression) | Yes |
TALLY | |
Integrated Tricolour Halo Tally | Yes |
PTZ CONTROL | |
2.5mm 4-pole RS232 (VISCA) | |
NETWORK CONNECTIVITY | |
Ethernet RJ45 1000baseT w/integrated PoE (Power over Ethernet) |
Yes |
Embedded Web configuration Panel | Yes |
POWER | |
PoE (Power over Ethernet) | PoE+ 802.3at |
DC Input | DC 12v (30w max) |
DC Output | DC 12v (15w max) |
NP style Battery Output |
WEIGHT & DIMENSIONS
- Size
107×63×42.5mm - Weight
150g
